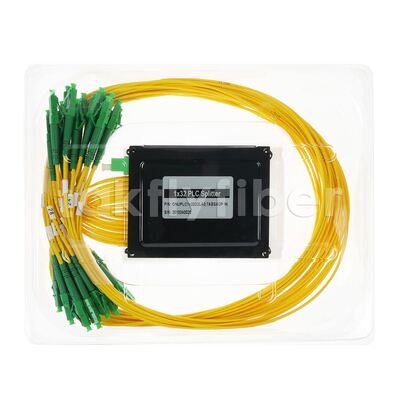

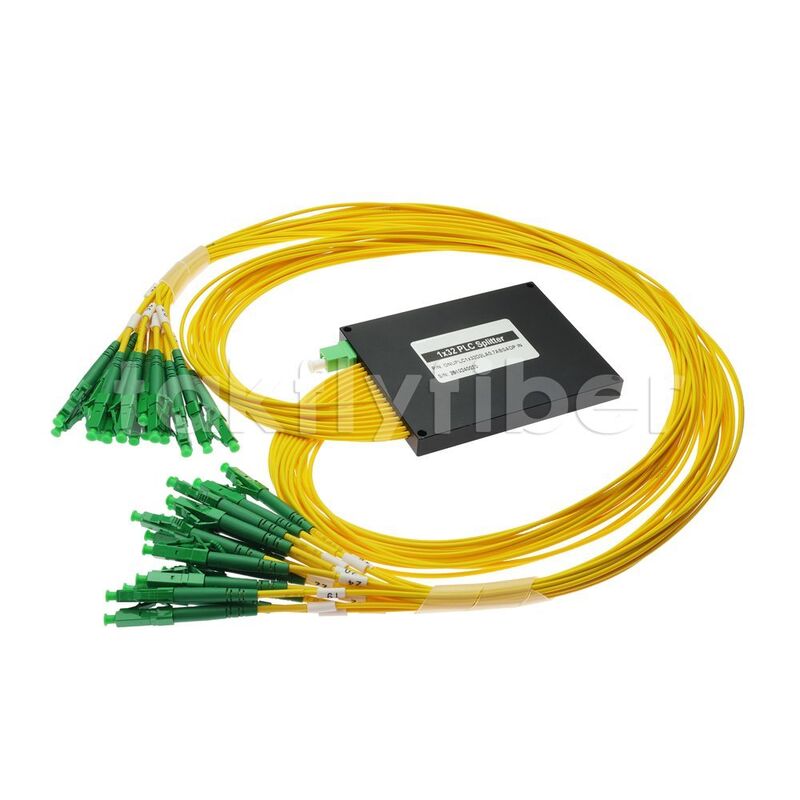

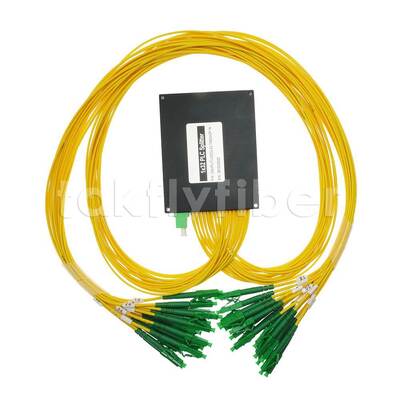

LC Adapter Input Aluminum Alloy Box Packing PLC Splitter 1x32 with LC/APC Connectors for FTTH FTTX
제품 상세 정보:
| 원래 장소: | 중국 선전 |
| 브랜드 이름: | DF/Takfly/Neutral |
| 인증: | CE/ROHS/REACH/ISO9001/ISO14001 |
| 모델 번호: | TK-PLC-1x16-SA-1M |
결제 및 배송 조건:
| 최소 주문 수량: | 100 |
|---|---|
| 가격: | US$0.01~US$13.99/PC |
| 포장 세부 사항: | 수출 표준 포장 |
| 배달 시간: | 5-7 영업일 |
| 지불 조건: | L/C, T/T, 웨스턴 유니온 |
| 공급 능력: | 5000PCS/주 |
|
상세 정보 |
|||
| 제품명: | LC 어댑터 입력 알루미늄 합금 상자 포장 PLC 분배기 1x32(FTTH FTTX용 LC/APC 커넥터 포함) | 섬유 종류: | G.657A |
|---|---|---|---|
| 파장: | 1260년 ~ 1650nm | 케이블 직경: | 2.0mm |
| 입력: | LC 심플렉스 어댑터 | 산출: | 2.0mm 케이블 피그테일 |
| 케이블 길이: | 1.5M세 1M은 맞춤화됩니다 | 포장 크기: | 100X80X10mm |
| 맥스. 균일성: | 1.5dB | 애플리케이션: | ftth fttb fttx pon catv |
| 강조하다: | LC PLC splitter 1x32 with LC/APC connectors,aluminum alloy FTTH PLC splitter,fiber optic splitter for FTTX networks |
||
제품 설명
LC Adapter Input Aluminum Alloy Box Packing PLC Splitter 1x32 with LC/APC Connectors for FTTH FTTX
Planar lightwave circuit (PLC) splitter is an optical power management device fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. It splits a single input signal at 1260-1650nm equally into 32 output signals and features LC/APC connectors with bend insensitive fibre (BIF) having a 10 mm bend radius to minimize loss.
Product Features
- Broadband Operation Wavelength
- Low Insertion loss
- Low PDL
- Compact Design
- Good channel-to-channel uniformity
- High Reliability and Stability
- Good uniformity and low insertion loss
- Excellent Environmental Stability
Applications
- Fiber to The Home (FTTH)
- Passive optical networks (PON)
- Local Area Networks (LAN)
- Cable Television (CATV)
- Test Equipment
- FTTX Systems
- PON Networks
- CATV Links
- Optical Signal Distribution
Technical Specifications
| Item | Parameter |
|---|---|
| Operating Wavelength(nm) | 1260 ~ 1650 |
| Type(1*N) | 1*2 | 1*4 | 1*8 | 1*16 | 1*32 | 1*64 |
| Max.Insertion Loss (dB) | 3.9 | 7.2 | 10.3 | 13.5 | 16.8 | 20.3 |
| Max.Uniformity(dB) | 0.8 | 0.8 | 0.8 | 1.0 | 1.5 | 2.0 |
| Min.Return Loss(dB) | 55 |
| Max.PDL(dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Type(2*N) | 2*2 | 2*4 | 2*8 | 2*16 | 2*32 | 2*64 |
| Max.Insertion Loss(dB) | 4.2 | 7.5 | 10.6 | 13.9 | 17.2 | 20.8 |
| Max.Uniformity(dB) | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 |
| Min.Return Loss(dB) | 55 |
| Max.PDL(dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Fiber Type | ITU-T G657A1, G657A2 and G.652D |
| Max.Temperature Stability(dB) | 0.5 (Typical 0.3) |
| Operating Temperature(℃) | -40 ~ +85 |
| Storage Temperature(℃) | -40 ~ +85 |
All measurements are made at room temperature, and connectors not included
Packing Dimensions
| Package Type | Unit(mm) | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 |
|---|---|---|---|---|---|---|---|
| Basic Packaging Metal box | L×W×H | 40×4×4 | 40×4×4 | 40×4×4 | 50×7×4 | 60×7×4 | 60×12×4 |
| Mini Module Packaging Metal box | L×W×H | 60×7×4 | 60×7×4 | 60×7×4 | 60×12×4 | 80×20×6 | 100×40×6 |
| Module Packaging Plastic box | L×W×H | 100×80×10 | 100×80×10 | 100×80×10 | 120×80×18 | 120×80×18 | 140×115×18 |
Why Choose TAKFLY
- More than 25 years manufacturing experience in fiber optic products
- More than 450 assembly workers with 6+ years experience
- More than 10 R&D Engineers
- 16 sets of Germany imported injection machines and 16 production lines
- More than 30 sets of testing machines: OTDR, 3D, VFL, IL&RL test instruments; tension strength testers, crush resistance testers, power meter testers, light checkers, etc
- OEM branding accepted
- Regular exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Spot check raw material incoming inspection before production
- Full inspection after every individual process completion
- Full inspection of production half-done stages
- Full inspection of finished products before packing
- Spot check before shipping
Delivery Information
- Samples: 1-3 working days
- Mass production orders: 3-7 working days
- Packaging: Plastic bag, carton and pallet options available according to your requirements
