상세 정보 |
|||
| 상품 이름: | 96-192F 광섬유 MTP / MPO - MTP / MPO 브레이크아웃 케이블 SM LSZH / PVC | 타입: | 섬유 광학 연결선, MPO 트렁크 케이블, MPO 점퍼, MPO 패치 케이블, MTP 케이블 |
|---|---|---|---|
| 연결기: | (남자이거나 여성인) MPO / MTP | 섬유 번수: | 8, 12, 16, 24 또는 주문 제작됩니다 |
| 케이블 길이: | 1M. 3M. 5M. 10M 또는 주문 제작됩니다 | 섬유형: | SM(G652、G657) ;MM(OM1-OM5) |
| 삽입 손실(dB): | 표준 :≤0.7(Max) 저손실 :≤0.35(Max) | 파장을 시험하십시오: | SM :1310/1550nm ; MM :850/1300nm |
| 외부 칼집 물자: | PVC、LSZH、TPU | 외부 칼집 색깔: | 황색, 물 또는 주문을 받아서 만드는 |
| 굴곡 반경 (Static/Dynamic): | 10D/20D | 작동 온도: | -20 70℃에 |
| 저장 온도: | -40 내지 80C | 신청: | FTTH FTTB FTTX 네트워크, 텔레컴 네트워크, 데이타 센터, 텔레콤, 광섬유 도구를 위한 섬유 패치 코드 |
| 하이 라이트: | 96F MPO MTP,192F MPO MTP,192F MTP 브레이크아웃 케이블 |
||
제품 설명
96-192F Fiber Optic MTP / MPO - MTP / MPO Breakout Cable Singlemode
The MPO connector offers up to 12 times the density of standard connectors, providing significant space and cost savings.
MPO connectors utilize precision molded MT ferrules, with metal guide pins and precise housing dimensions to ensure fiber alignment when mating. The MPO can be mass terminated in combinations of 4, 8, or 12 fiber ribbon cables. The MPO Adapter comes standard in black.
Fiber Optic MTP / MPO Breakout Cable - Specifications:
| Item | LC,SC,ST,FC....... | MPO/MTP | |
| End face type | PC,UPC and APC | PC and APC | |
| Fiber type | SM(G652,G655,G657)；MM(OM1-OM5) | ||
| Core number | 12,24 | ||
| Cable Diameter | 0.9,2.0,3.0 |
Mini Round cable:Max4.5mm； Ribbon cable:Max3.0*5.0mm |
|
| Insertion loss(dB) | ≤ 0.3 |
Standard:≤0.35/0.7(Typical/Max) Low Loss:≤0.2/0.35(Typical/Max) |
|
| Return loss(Min) |
UPC SM:40dB APC SM:60 dB PC MM:25 dB |
SM: APC:60dB | MM: PC:20dB |
|
Test Wavelength (nm) |
SM:1310/1550 MM:850/1300 |
||
| Repeatability | ≤ 0.1dB | ||
| Durability | ≤ 0.2dB | ||
| Interchangeability | ≤ 0.2dB | ||
|
Operating Temperature |
-20℃~70℃ | ||
|
Storage Temperature |
-40℃~80℃ | ||
|
Outer Sheath Material |
PVC,LSZH | ||
|
Bending radius (Static/Dynamic) |
10D/20D | ||
| Length | Customized | ||
Fiber Optic MTP / MPO Breakout Cable - Product Pictures:

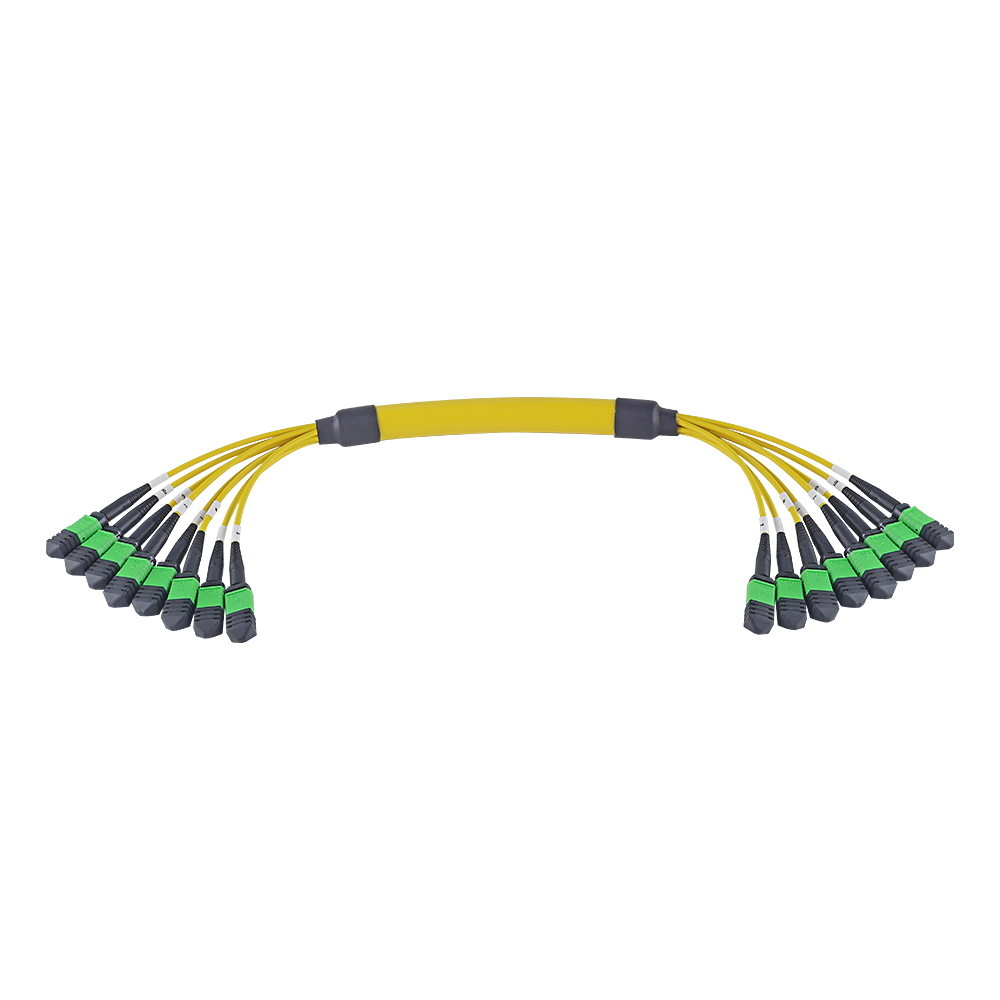

96-192F Fiber Optic MTP / MPO - MTP / MPO Breakout Cable Singlemode
Fiber Optic MTP / MPO Breakout Cable - TAKFLY Overview:
Fiber Optic MTP / MPO Breakout Cable - Our Services:
1. Order inquiry: Keep working 24 hours to gurantee the first reply to clients,no Cellphone power off all the day
2. Order production: Keep very close touch with production department to gurantee the right delivery time to clients
3. Before shipment: Our sales would double check the order quantity,package and strength of cartons to avoid lost and damage
4. After shipment: Keep tracking shipping status and reporting to clients
5. Shipment: DHL,UPS,FEDEX,TNT,EMS,SEA,AIR etc.
If you interest or have any question, Please feel free to contact us.
