상세 정보 |
|||
| 상품 이름: | 1x2 PLC 분배기 / 연결기 1U 19 " 선반 장착 섬유 광학 분배기 | 포장 작풍: | 선반 산 |
|---|---|---|---|
| 섬유형: | 싱글모드 G.657A1 | 윤곽 유형: | 1x2 / 4 / 8 / 16 /32 /64 방식 |
| 섬유 접속구의 형태: | SC / LC / ST / FC / E2000 / DIN / D4 기타 등등. | 운영 대역폭: | 1260~1650nm |
| 하이 라이트: | 1U 광섬유 분배기 1x2,TAKFLY 선반 장착 plc 분배기,TAKFLY 섬유 광학 분배기 1x2 |
||
제품 설명
1x2 PLC Splitter/Coupler 1U 19" Rack Mount Fiber Optic splitter
PLC Splitter - Introduction :
PLC-Planar Lightwave Circuit Splitter is a kind of power splitter based on the integrated quartz baseplate. Single Mode PLC 1×N and 2×N Splitter divide uniformly optical signals from one or two inputs to multiple outputs, and spliter can be operated in reverse direction to combine multiple signals into fiber or two fibers.
PLC Splitter - Specification :
| Item | Parameter | |||||
| Operating Wavelength(nm) | 1260 ~ 1650 | |||||
| Type(1*N) | 1*2 | 1*4 | 1*8 | 1*16 | 1*32 | 1*64 |
| Insertion Loss(dB) | 3.9 | 7.2 | 10.3 | 13.5 | 16.8 | 20.3 |
| Max.Uniformity(dB) | 0.8 | 0.8 | 0.8 | 1.0 | 1.5 | 2.0 |
| Min.Return Loss(dB) | 55 | |||||
| Max.PDL(dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Type(2*N) | 2*2 | 2*4 | 2*8 | 2*16 | 2*32 | 2*64 |
| Max.Insertion Loss(dB) | 4.2 | 7.5 | 10.6 | 13.9 | 17.2 | 20.8 |
| Max.Uniformity(dB) | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 |
| Min.Return Loss(dB) | 55 | |||||
| Max.PDL(dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Fiber Type | ITU-T G657A1 , G657A2 and G.652D | |||||
| Max.Temperature Stability(dB) | 0.5( Typical 0.3 ) | |||||
| Operating Temperature(℃) | -40 ~ +85 | |||||
| Storage Temperature(℃) | -40 ~ +85 | |||||
All measurement are made at room temperature, and connectors not included

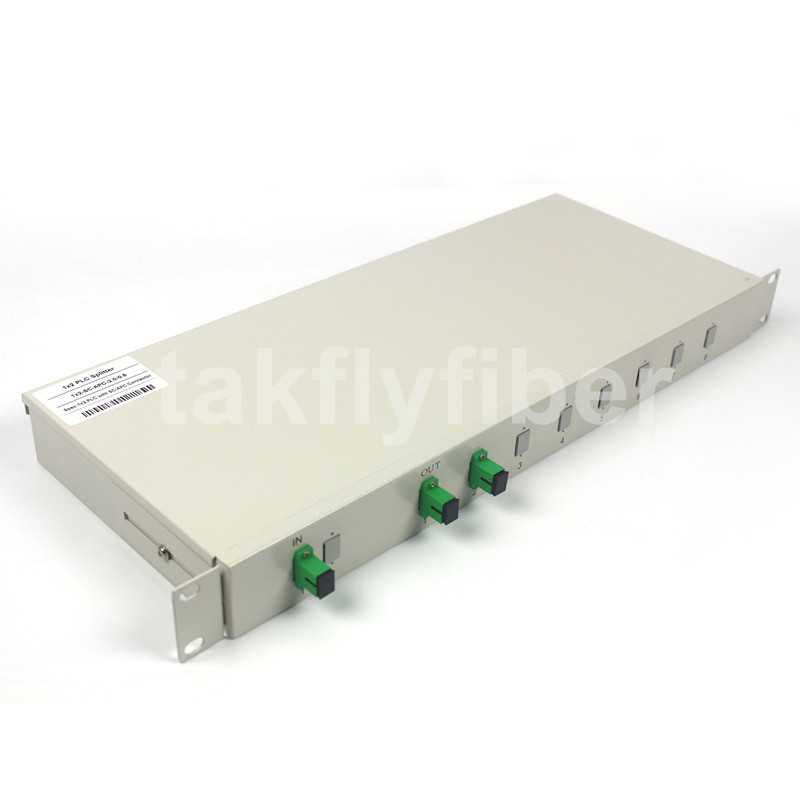

PLC Splitter - Picture :
PLC Splitter - TAKFLY Company Overview:
PLC Splitter - TAKFLY Certificates:
PLC Splitter - TAKFLY Worldwide Exhibitions:
Why choose TAKFLY--Advantages as follows:
1. Fiber Optic Professional Manufacturer:
- With more than 20 years manufacturing experience in Fiber optic products;
- More than 300 assembly workers with 3 years experienced;
- More than 10 R&D Engineers;
- 16 Sets Germany imported Injection Machine and 16 Production Lines;
- More than 30 sets of Testing Machines: OTDR,3D Tester,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, ect.
- OEM Brand is acceptable.
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia ,Global Soure Electronic Exhibition,etc.
2. Quality Control:
- Spot check the raw material incoming inspection before production;
- Fully check after every individual process finished;
- Fully check production half done;
- Fully check the finished products before packing;
- Spot check before shipping;
3. Delivery:
- Samples: 1-3 working days.
- Mass Production Order: 3-7 working days (or Upon the exact Qty of the order ).
- Packaging: Plastic Bag, Carton and Pallet are available according to your request.
4. Shipping:
- DHL,UPS,FEDEX,TNT,EMS, usually is 3-5 working days. Would keep tracking shipping status and reporting to clients;
- By Sea or By Air, could use your own pointed forwarder or our cooperated one.
5. Payment Term: T/T, Paypal, Western Union and L/C are available.
6. Price: If your QTY is big, the price could be negotiated.
7. Customer service: Our sales respond quickly and efficiently. You could reach us by Email, Phone, WhatsApp, Wechat, Skype etc. We are on-line all the day and could reply you in time.
If you're interested in our products or have any question, Why not send inquiry at once ?
Welcome & Just Do It Now !
