TK-B23(32)92-3LCD10 10Gbps SFP+ Bi-Directional Transceiver, 10km Reach Tx1270/1330nm / Rx1330/1270 nm
제품 상세 정보:
| 원래 장소: | 중국, 심천 |
| 브랜드 이름: | DF/OEM/Nuetral |
| 인증: | CE/ROHS/REACH/ISO9001/ISO14001 |
| 모델 번호: | TK-B23 (32) 92-3LCD10 |
결제 및 배송 조건:
| 최소 주문 수량: | 협상 가능 |
|---|---|
| 가격: | negotiable denpend on QTY |
| 포장 세부 사항: | 물집 상자 + 판지 |
| 배달 시간: | 영업일 기준 5-9일은 수량에 따라 다릅니다. |
| 지불 조건: | 서부 동맹, T/T, MoneyGram/Paypal |
| 공급 능력: | 1000pcs/day |
|
상세 정보 |
|||
| 제품명: | TK-B23(32)92-3LCD10 10Gbps SFP+ 양방향 트랜시버, 10km 도달 Tx1270/1330nm / Rx1330/1270 nm | 공급 전압: | 3.14-3.46V |
|---|---|---|---|
| 공급전류: | 300 MA | 입력 차동 임피던스: | 100 Ω |
| 단일 종단 데이터 입력 스윙: | 180-700mA | 데이터 입력 스윙 차이: | 400-1800mV |
| 전송 비활성화 어설션 시간: | 10 우리 | 차동 데이터 출력 스윙: | 300-850mA |
| 작동 케이스 온도: | +70' Ｃ에 대한 0 | 보증: | 1년, 평생 유지보수 |
| 섬유 브랜드: | 코닝, YOFC, OFS, 드라카 | ||
| 강조하다: | 10Gbps SFP+ transceiver 10km reach,Bi-Directional transceiver Tx1270/1330nm,SFP+ optical module with warranty |
||
제품 설명
TK-B23(32)92-3LCD10 10Gbps SFP+ Bi-Directional Transceiver
TK-B23(32)92-3LCD10
10Gbps SFP+ Bi-Directional Transceiver, 10km Reach
Tx1270/1330nm / Rx1330/1270 nm
Tx1270/1330nm / Rx1330/1270 nm
Product Overview
The TK-B23(32)92-3LCD10 series single mode transceiver is a small form factor pluggable module designed for duplex optical data communications, including 10GBASE-LR/LW as defined by IEEE 802.3ae. Featuring an SFP+ 20-pin connector, it enables hot plug capability for seamless integration.
This module is engineered for single mode fiber operation with nominal wavelengths of 1270nm or 1330nm. The transmitter section employs a multiple quantum well DFB laser that complies with Class 1 laser safety standards per IEC-60825.
The receiver section incorporates an integrated InGaAs detector preamplifier (IDP) mounted in an optical header, paired with a limiting post-amplifier IC for optimal performance.
Applications
- 10GBASE-LR at 10.3125Gbps
- 10GBASE-LW at 9.953Gbps
- Other Optical Links
Key Features
- Supports 9.95Gb/s to 10.3Gb/s data rates
- Simplex LC Connector Bi-Directional SFP+ Optical Transceiver
- Single 3.3V Supply
- Up to 10km on 9/125um SMF
- A:1270nm DFB Laser transmitter, 1330nm receiver
- B:1330nm DFB Laser transmitter, 1270nm receiver
- Compliant with IEEE 802.3ae 10GBASE-LR and 10GBASE-LW
- SFP+ MSA SFF-8431 Compliant
- Digital Diagnostic SFF-8472 Compliant
- RoHS compliant and Lead Free
- Operating case temperature: Standard: 0 ~ 70 °C
Compliance Standards
- SFP+ MSA Compliant
- SFF-8472 reversion 9.5 compliant
- IEEE802.3-2005 compliant
- Telcordia GR-468-CORE compliant
- FCC 47 CFR Part 15, Class B compliant
- FDA 21 CFR 1040.10 and 1040.11, class1 compliant
- RoHS compliant
Technical Specifications
Technical Notes
- Connected directly to TX data input pins. AC coupled thereafter.
- Or open circuit
- Into 100 ohms differential termination.
- 20 - 80%.
- Loss Of Signal is LVTTL. Logic 0 indicates normal operation; logic 1 indicates no signal detected.
- Receiver sensitivity is compliant with power supply sinusoidal modulation of 20 Hz to 1.5 MHz up to specified value applied through the recommended power supply filtering network.

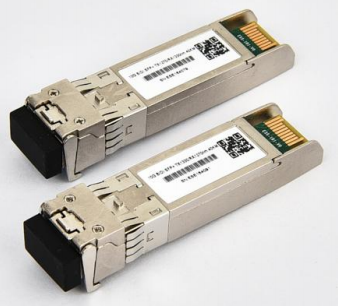

Product Images
Why Choose TAKFLY
- 25+ years of manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years of experience
- 10+ R&D Engineers dedicated to innovation
- 16 Germany-imported Injection Machines and production lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- Comprehensive testing equipment: tension strength testers, crush resistance testers, power meter testers, light checkers
- OEM branding accepted
- Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control
- Raw material spot checking before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Pre-shipping spot checks
Delivery Information
- Samples: 1-3 working days
- Mass Production Orders: 3-7 working days
- Packaging: Plastic bags, cartons, and pallets available per request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, along with implementing quality improvements for future production.
Q6: What is your terms of packing?
We typically pack goods in blister boxes and cartons, but can accommodate custom packaging requests from customers.
Q7: What is your terms of payment?
T/T 30% as deposit, and 70% balance before delivery. We provide photos of products and packaging before final payment.
Q8: What is your terms of delivery?
EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
Generally 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
Q10: Can you produce according to the samples?
Yes, we can manufacture products based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
