제품 설명
Fiber Optic DWDM 8+1 Channel MUX+DEMUX LGX Module for Data Center Telecom 5G
Product Overview
Takfly's DWDM LGX module utilizes advanced Thin Film Filter (TFF) wavelength division multiplexing technology with multiple wavelength options. This technology multiplexes optical signals of different wavelengths into a single fiber for transmission, and employs demultiplexing at the receiving end to separate the combined signals back into individual wavelengths.
DWDM systems feature channel spacing options of 100GHz, 200GHz, and other configurations, making them ideal for long-distance, high-capacity trunk networks and ultra-large capacity metropolitan area network core nodes.
Key Features
- Low Insertion Loss
- Wide Pass Band
- High Channel Isolation
- High Stability and Reliability
Applications
- Telecommunications 5G Networks
- Metropolitan Area Network Backbone Networks
- Data Centers
Technical Specifications
| Parameter | 4 Channel | 8 Channel | 16 Channel |
|---|---|---|---|
| Channel Wavelength (nm) | ITU 100 GHz Grid + 1270-1350 | ||
| Center Wavelength Accuracy (nm) | ±0.05 | ||
| Channel Spacing (GHz) | 100 | ||
| Channel Passband (@-0.5dB bandwidth) (nm) | ≥0.22 | ||
| Insertion Loss | ≤1.6 | ≤2.5 | ≤3.5 |
| Channel Uniformity | ≤0.6 | ≤1.0 | ≤1.5 |
| Channel Ripple | 0.3 | 0.3 | 0.3 |
| Isolation Adjacent | N/A | >30 | N/A |
| Isolation Non-adjacent | N/A | >40 | N/A |
| Insertion Loss Temperature Sensitivity (dB/℃) | ≤0.005 | ||
| Wavelength Temperature Shifting (℃) | <0.002 | ||
| Polarization Dependent Loss (dB) | <0.1 | ||
| Polarization Mode Dispersion (PS) | <0.1 | ||
| Directivity (dB) | >50 | ||
| Return Loss (dB) | >45 | ||
| Maximum Power Handling (mW) | 500 | ||
| Operating Temperature (℃) | -5 to +75 | ||
| Storage Temperature (℃) | -40 to +85 | ||
Package Dimensions
- L100×W80×H10 mm (2CH-8CH Module)
- L140×W100×H15 mm (9CH-18CH Module)
- 19" 1U Rack
- LGX

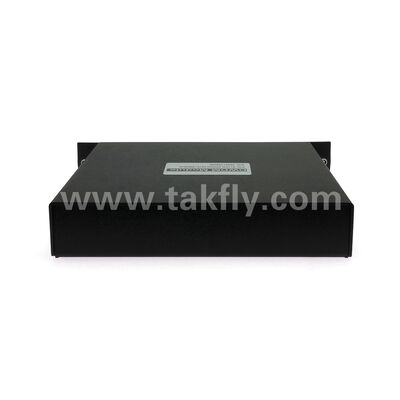

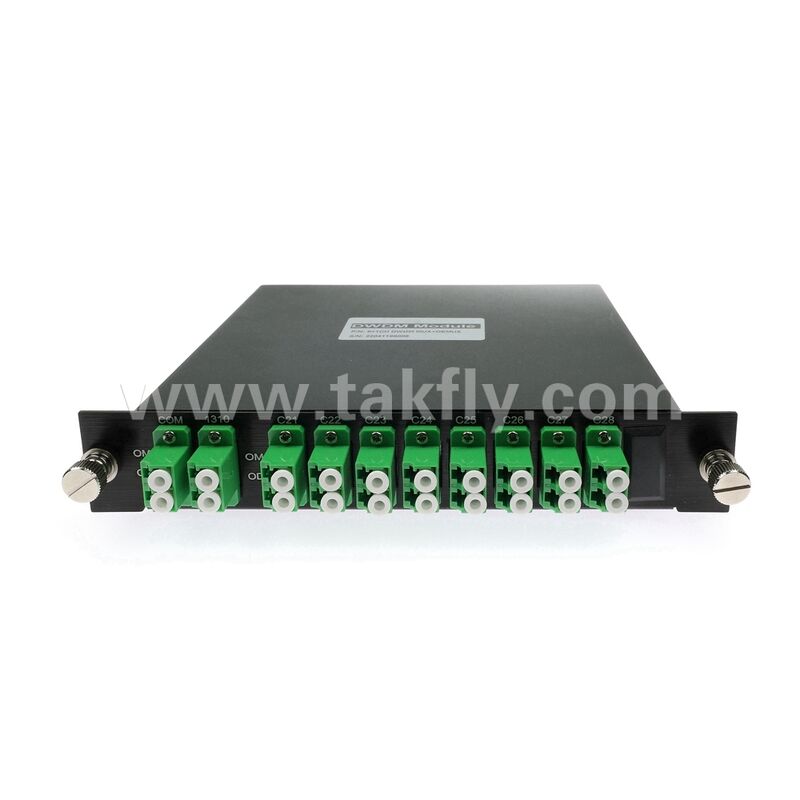

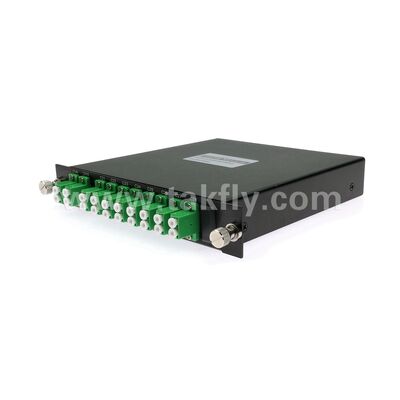

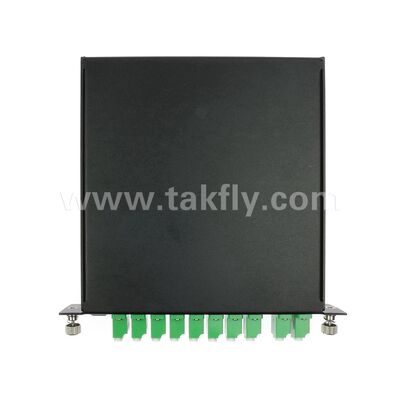

Product Images
