MPO/MTP Patchcord Fanout Uniboot LC Singlemode Breakout Fiber Optic Cable for Data Center Cabling AI Telecom
제품 상세 정보:
| 원래 장소: | 중국 |
| 브랜드 이름: | OEM |
| 인증: | ISO, CE RoHS |
| 모델 번호: | MPO/MTP-SM-유니 LC |
결제 및 배송 조건:
| 최소 주문 수량: | 1 |
|---|---|
| 가격: | USD15-30/pc |
| 포장 세부 사항: | PE 자체 밀봉 가방 + 상자 |
| 배달 시간: | 5-8 영업일 |
| 지불 조건: | T/T, 서부 동맹 |
| 공급 능력: | 달 당 50000pcs |
|
상세 정보 |
|||
| 재료: | LSZH, OFNP | 섬유 종류: | 에스엠 |
|---|---|---|---|
| 색상: | 노란색 | 맞춤형: | 예 |
| 강조하다: | MPO MTP patchcord uniboot LC singlemode,fiber optic breakout cable data center,MTP fanout cable AI telecom |
||
제품 설명

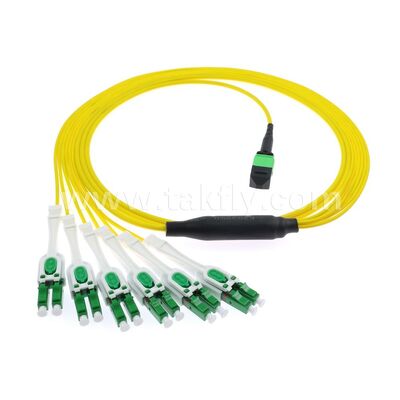

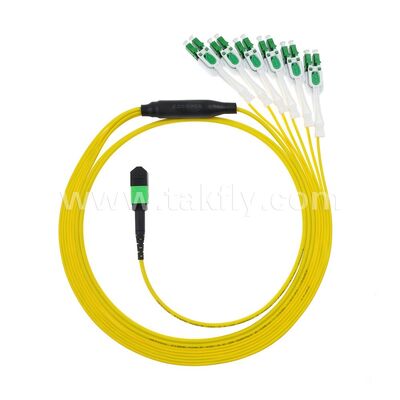

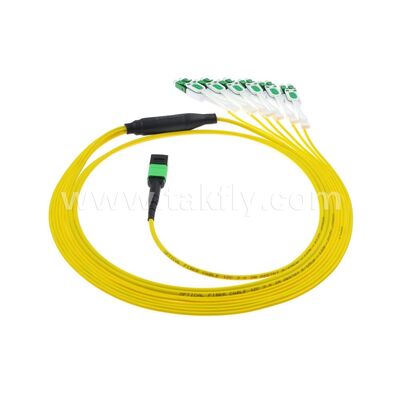

MPO/MTP Patchcord Fanout Uniboot LC Singlemode Breakout Fiber Optic Cable
Designed for data center cabling and AI telecom applications, this MPO/MTP breakout patch cord provides efficient high-density optical connectivity solutions.
Product Overview
MPO/MTP breakout patch cords consist of four main components: main cable, breakout cable, branching device, and connector. The multi-core main cable simplifies cabling management and prevents tangling, making it ideal for high-density optical cabling environments.
Key Features
- Changeable polarity with simple operation
- Compact LC uniboot connector design saves 50% cabling space
- Enhanced heat dissipation efficiency for cabling systems
- Tool-free outer housing opening
- High-quality ferrule with professional polishing technology
- Precise optical endface matching for stable transmission
- 100% tested for quality assurance
- Compliant with industry standards
Applications
TAKFLY MPO/MTP breakout patch cords feature stable transmission and high reliability, making them ideal for optical network scenarios including data centers and high-density optical cabling environments.
Customization Options
TAKFLY provides a comprehensive range of MPO/MTP-LC breakout patch cords with customizable transmission modes, cable types, and connector configurations.
Technical Specifications
| Performance | Type | Multimode | Singlemode |
|---|---|---|---|
| Insertion Loss (IL) | MPO | Single Max: 0.35dB (L) Single Max: 0.60dB (G) |
Single Max: 0.35dB (L) Single Max: 0.75dB (G) |
| LC | Max: 0.10dB (L) Max: 0.15dB (G) |
Max: 0.30dB | |
| Return Loss (RL) | MPO | >20dB | >60dB (8 degree Angle Polish) |
| LC | >30dB | >50dB(UPC), >60dB(APC) | |
| Mechanical | MPO | <0.2dB, 200 times insertion | |
| Mechanical | LC | <0.2dB, 500 times insertion | |
| Environmental | Working Temp | -20°C to +60°C | |
