상세 정보 |
|||
| 섬유 종류: | 멀티 모드 | 외부 피복 색상: | 로즈 레드 |
|---|---|---|---|
| 외경: | 3.0mm | 맞춤화: | 예 |
| 강조하다: | MPO MTP OM4 fiber optic cable,12F multimode trunk cable,data center fiber patchcord |
||
제품 설명

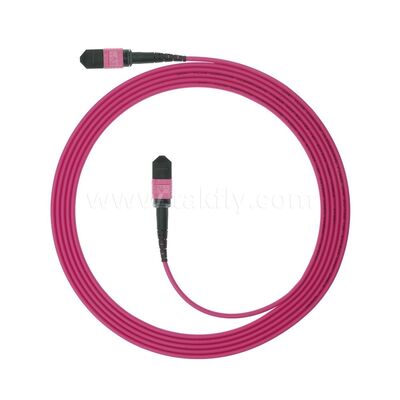

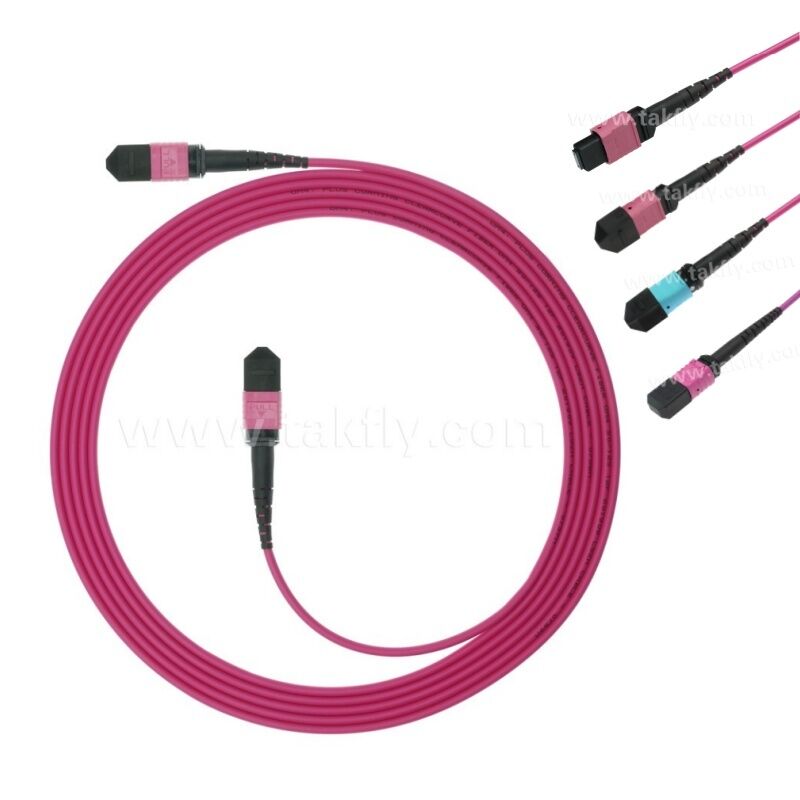

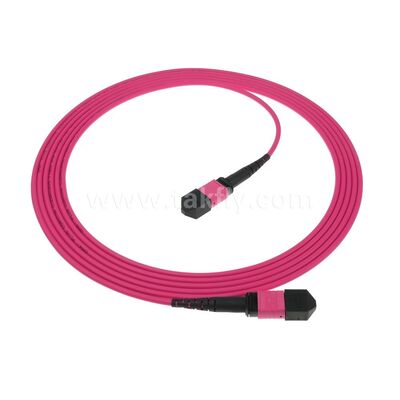

MPO MTP Patchcord Multimode OM4 Trunk Cable 12F Fiber Optic
MPO/MTP fiber optic patch cords feature connectors at both ends of fiber optic cables, enabling active connections between optical network equipment, devices, and patch cords. These simple, convenient, and fast-operating solutions are essential passive components for optical network infrastructure.
TAKFLY provides a comprehensive range of MPO/MTP patch cords with customizable transmission modes, cable types, and connector configurations.
Premium Quality Ferrules
Utilizing high-quality ferrules with professional polishing technology and precise optical endface matching for stable transmission and efficient connectivity.
Rigorous Quality Assurance
All TAKFLY MPO/MTP patch cords undergo 100% testing to ensure compliance with product standards and meet customer requirements.
Comprehensive Product Range
TAKFLY offers a complete selection of MPO/MTP patch cords with customizable options to suit specific application needs.
Technical Specifications
| Parameter | Standard SM | Low Loss (Elite) SM | Standard MM | Low Loss (Elite) MM |
|---|---|---|---|---|
| Insertion Loss (Typical) | 0.35dB | 0.20dB | 0.35dB | 0.20dB |
| Insertion Loss (Maximum) | 0.75dB | 0.35dB | 0.60dB | 0.35dB |
| Return Loss | ≥50 for PC | ≥60 for APC (8° Angle Polish) | ≥20 for PC | -- |
| Male/Female | Male: with Pins; Female: without Pins | |||
| Tensile Strength | ≤0.3 (Max 66N) | |||
| Vibration | ≤0.3 (10~55Hz) | |||
| Thermal Cycle | ≤0.3 (-40~75℃, 21 Cycles) | |||
Applications
TAKFLY MPO/MTP patch cords offer stable transmission and high reliability, making them ideal optical cabling solutions for high-density environments. They are widely used in data centers, AI infrastructure, telecommunications cabling, and various optical network scenarios.
