상세 정보 |
|||
| 섬유 종류: | 단일 모드 | 외부 피복 색상: | 노란색 |
|---|---|---|---|
| 외경: | 3.0mm | 맞춤화: | 예 |
| 강조하다: | MPO MTP fiber optic patchcord,24F SM trunk cable,data center fiber optic cabling |
||
제품 설명

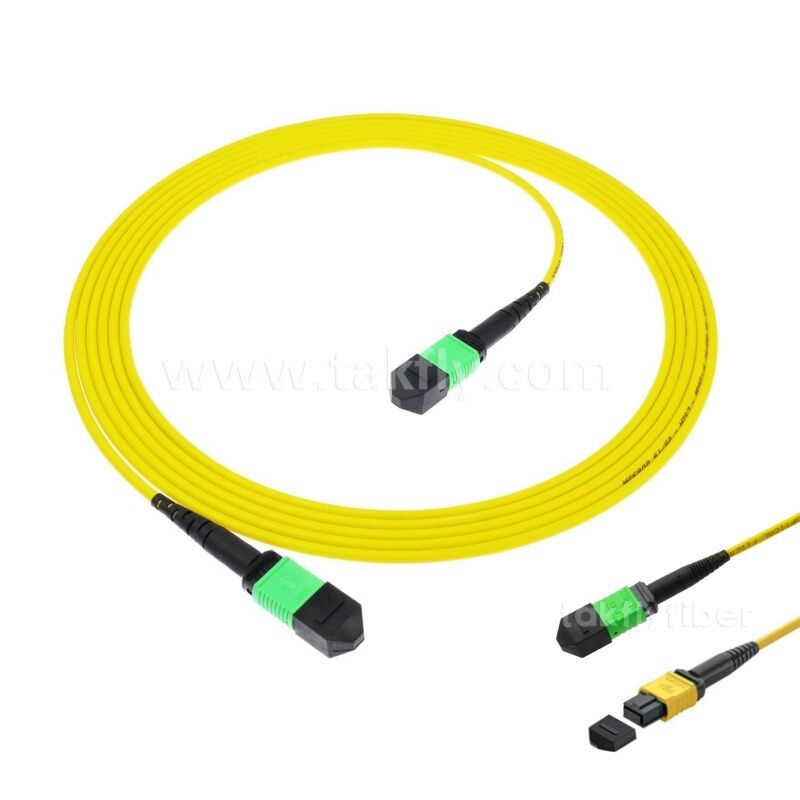

MPO MTP Patchcord SM Trunk Cable 24F Fiber Optic
MPO/MTP fiber optic patch cords feature connectors at both ends of fiber optic cables, enabling active connections between optical network equipment. These patch cords provide simple, convenient, and fast operation, making them essential passive components for optical network construction.
TAKFLY offers a comprehensive range of MPO/MTP patch cords with customizable transmission modes, cable types, and connector configurations.
Product Features
High-Quality Ferrules
Available with premium ferrules and professional polishing technology for precise optical endface matching, ensuring stable transmission and efficient connectivity.
100% Quality Testing
All TAKFLY MPO/MTP patch cords undergo comprehensive 100% testing to ensure compliance with product standards and meet customer requirements.
Multiple Configuration Options
TAKFLY provides a complete range of MPO/MTP patch cords with customizable specifications to meet diverse application needs.
Technical Specifications
| Item | Parameter |
|---|---|
| MPO/MTP Connector | Standard SM | Low Loss(Elite) SM | Standard MM | Low Loss(Elite) MM |
| Insertion Loss | Typical: 0.35dB | 0.20dB | 0.35dB | 0.20dB Maximum: 0.75dB | 0.35dB | 0.60dB | 0.35dB |
| Return Loss | ≥60 for APC (8 Angle Polish) | ≥20 for PC ≥50 for PC | -- |
| Male/Female | Male: with Pins; Female: without Pins |
| Tensile Strength | ≤0.3 (Max 66N) |
| Vibration | ≤0.3 (10~55Hz) |
| Thermal Cycle | ≤0.3 (-40~75℃, 21Cycles) |
Applications
TAKFLY MPO/MTP patch cords feature stable transmission and high reliability, making them ideal optical cabling solutions for high-density environments. They are widely applicable in optical network scenarios including data centers, AI telecom infrastructure, FTTX cabling, and general optical network installations.
