Outdoor GYTS+2*4mm² Optical Cable Steel wire 12F
제품 요약
GYTS+2*4mm² 실외 광케이블은 12개의 광섬유와 2개의 전력선을 통합합니다. 방수 설계, 기계적 내구성, 데이터/전력 동시 전송이 특징입니다. 맞춤형 길이가 제공되는 통신 네트워크, FTTH 및 모니터링 프로젝트에 이상적입니다.
제품 맞춤 속성
제품명:
옥외용 GYTS+2*4mm² 광케이블 강선 12F
섬유수:
12
가루:
125μm
코팅(±5μm):
250μm
느슨한 튜브 직경(mm):
2 mm
느슨한 튜브 재료:
폴리비닐알콜
강도부재 센터 보강:
PE 커버가 있는 철강선/강선
외장 외장재:
MDPE / HDPE
색상:
검은색
케이블 중량 (kg/km):
360
작동 온도:
-20℃~70℃
섬유 브랜드:
코닝, YOFC, OFS, 드라카
강조하다:
Outdoor GYTS fiber optic cable
,12F steel wire optical cable
,4mm² armored fiber cable
기본 특성
원래 장소:
중국, 심천
브랜드 이름:
DF/OEM/Nuetral
인증:
CE/ROHS/REACH/ISO9001/ISO14001
모델 번호:
옥외용 GYTS+2*4mm² 광케이블 강선 12F
부동산 거래
최소 주문 수량:
협상 가능
가격:
negotiable denpend on QTY
포장 세부 사항:
물집 상자 + 판지
배달 시간:
영업일 기준 5-9일은 수량에 따라 다릅니다.
지불 조건:
서부 동맹, T/T, MoneyGram/Paypal
공급 능력:
1000pcs/일
제품 설명
Outdoor GYTS+2*4mm² Optical Cable Steel wire 12F
The fibers,250μm,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound.
The cable core is FRP or metallic strength member( some structures need add PE as bedding layer in the strength member). Electric wires and tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress. After two sides PSP are longitudinally applied over the inner sheath ,the cable is completed with PE or LSZH outer sheath.
Outdoor GYTS+2*4mm² Optical Cable Applications
-
Telecommunications network;
-
Construction of communication base stations in villages, remote areas in cities and towns ;
-
Residential areas and buildings FTTH;
-
Security monitoring project;
-
Others occasion which information together with electric power at the same time.
Outdoor GYTS+2*4mm² Optical Cable Features
-
Good mechanical and temperature performance;
-
Opto and electricity integrated, fully save pipeline resources;
-
Electric and optical cable maintain relatively independent structure, easy to import; export and link when installation;
-
Electricity lines, telephone lines, television lines, network lines, monitor lines and data lines are multi-one network, saves costs;
-
Larger operating temperature range;
-
Larger construction temperature range;
-
Cable diameter and bending radius are small, freely install in small space and compatible with optical signal and electric energy transmission.
Outdoor GYTS+2*4mm² Optical Cable Parameter and Properties
| Optical fiber type | G.652D | G.655 | 50/125um | 62.5/125um | |
|
Attenuation |
@850nm |
... |
... |
≤3.5 dB/km |
≤3.5 dB/km |
|
@1300nm |
... |
... |
≤1.5 dB/km |
≤1.5 dB/km |
|
|
@1310nm |
≤0.36 dB/km | ≤0.40 dB/km |
... |
... |
|
|
@1550nm |
≤0.22 dB/km |
≤0.23dB/km |
... |
... |
|
|
Bandwidth |
@850nm |
... |
... |
≥500 MHz·km |
≥200 MHz·km |
|
@1300nm |
... |
... |
≥1000 MHz·km |
≥600 MHz·km |
|
|
Numerical Aperture |
... |
... |
0.200±0.015NA |
0.275±0.015NA |
|
|
Cable Cut-off Wavelengthλcc |
≤1260nm |
≤1480nm |
... |
... |
|

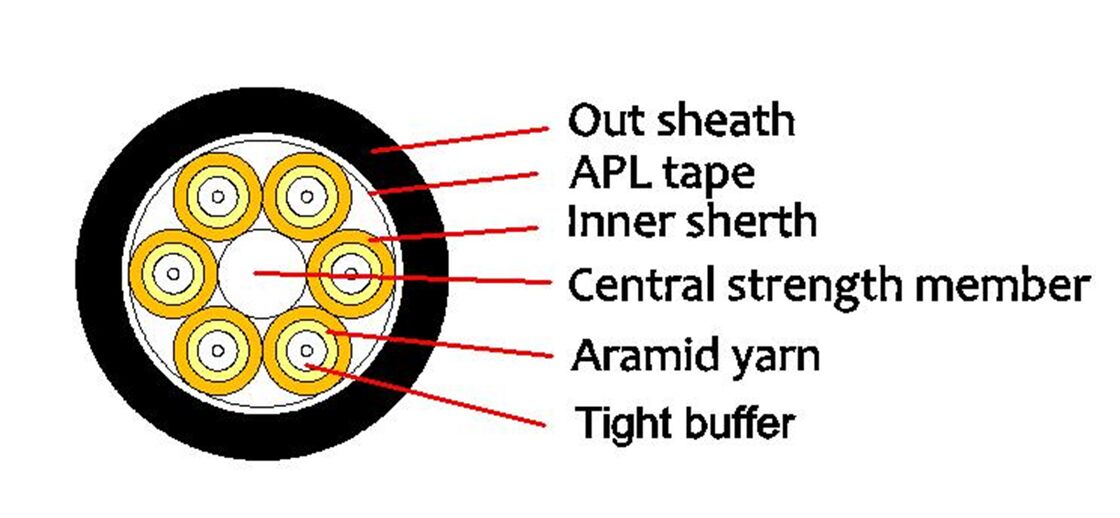

Outdoor GYTS+2*4mm² Optical Cable Structure
Other Requirements
Length of production optical cable:2000M
Optical cable outer sheath printing specifications, such as:
OPTICAL FIBER CABLE GYTS-12B1.3+2*4MM 12.5 MM/YY 00000M
