Indoor Breakout Optical Cable 2000M LSZH/PVC/PU
제품 요약
Indoor Breakout Optical Cable 2000M LSZH/PVC/PU 4-48 core branch optical cables (900µm compact buffer fiber, aramid yarn is a reinforcement element, 2.0mm inner sheath) are used as a subunit. A fiber-reinforced plastic (FRP) is positioned at the center of the core as a non-metallic strengthening ...
Product Custom Attributes
제품명:
실내 브레이크아웃 광케이블
외부 직경 (밀리미터):
3.0-12.5mm
섬유 수:
4-48
코어 강화:
아라미드 원사
재료:
스테인레스 스틸
재킷 재료:
LSZH/PVC
색상:
흰색 또는 맞춤형
파장:
1310nm, 1550nm
직경(±1μm):
125μm
코팅 직경(±5μm):
250μm
작동 온도:
-20 ℃ ~ 70 ℃
길이:
2000m 또는 맞춤형
섬유 브랜드:
코닝, YOFC, OFS, 드라카
강조하다:
Indoor Breakout Optical Cable 2000M
,LSZH Fiber Optic Cable
,PVC PU Optical Cable
기본 속성
원래 장소:
중국, 심천
브랜드 이름:
DF/OEM/Nuetral
인증:
CE/ROHS/REACH/ISO9001/ISO14001
모델 번호:
TK-PC-48F-SC-OS2-50M
부동산 거래
최소 주문 수량:
협상 가능
가격:
negotiable denpend on QTY
포장 세부 사항:
물집 상자 + 판지
배달 시간:
영업일 기준 5-9일은 수량에 따라 다릅니다.
지불 조건:
서부 동맹, T/T, MoneyGram/Paypal
공급 능력:
1000pcs/day
제품 설명

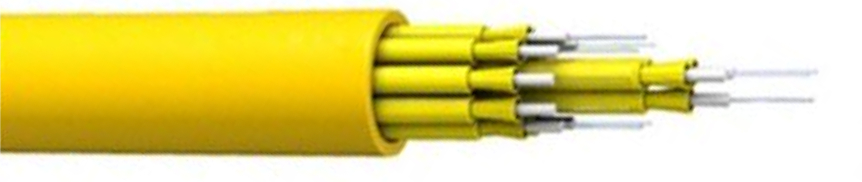

Indoor Breakout Optical Cable 2000M LSZH/PVC/PU
4-48 core branch optical cables (900µm compact buffer fiber, aramid yarn is a reinforcement element, 2.0mm inner sheath) are used as a subunit. A fiber-reinforced plastic (FRP) is positioned at the center of the core as a non-metallic strengthening element. The subunit is surrounded by FRP, with a PVC or LSZH material sheath, and the outer layer is polyvinyl chloride (PVC) or low-smoke halogen-free material (LSZH, low smoke, halogen-free, flame retardant jacket).
Product Applications
- Optical fiber active connection jumper or tail fiber
- Indoor shaft stage and forced ventilation level wiring
- Interconnection of instruments and communication equipment
Product Features
- Adopt a tight sleeve optical fiber for easy stripping
- Aramid yarn reinforced element provides excellent tensile resistance
- Good flame-retardant performance with low induced attenuation within operating temperature range
- Meets various market and client requirements
Optical Parameter and Properties
| Optical fiber type | Test wavelength | Decay | Full injection bandwidth (MHZ.km) | Effective modal bandwidth (MHZ.km) | Minimum bending radius (mm) |
|---|---|---|---|---|---|
| G652D | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 16 |
| G657A1 | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 10 |
| G657A2 | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 7.5 |
| 62.5/125 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥200/500 | 30 |
| 50/125 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥500/500 | 30 |
| OM3 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | 7.5 |
| OM4 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | 7.5 |
| OM5 | 850/953nm/1300nm | 3.0/.../1.0 | 3.5/.../1.5 | ≥3500/1850/500 | 7.5 |
Product Structure
Product Picture
Why Choose TAKFLY?
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experience
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR, 3D, VFL, IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
