Indoor Duplex Optical Cable 2000M LSZH/PVC/PU
제품 상세 정보:
| 원래 장소: | 중국, 심천 |
| 브랜드 이름: | DF/OEM/Nuetral |
| 인증: | CE/ROHS/REACH/ISO9001/ISO14001 |
| 모델 번호: | TK-PC-48F-SC-OS2-50M |
결제 및 배송 조건:
| 최소 주문 수량: | 협상 가능 |
|---|---|
| 가격: | negotiable denpend on QTY |
| 포장 세부 사항: | 물집 상자 + 판지 |
| 배달 시간: | 영업일 기준 5-9일은 수량에 따라 다릅니다. |
| 지불 조건: | 서부 동맹, T/T, MoneyGram/Paypal |
| 공급 능력: | 1000pcs/day |
|
상세 정보 |
|||
| 제품명: | 실내 이중 광케이블 | 섬유 수: | 2 |
|---|---|---|---|
| 코어 강화: | 아라미드 원사 | 외피 재료: | LSZH/PVC |
| 외부 직경 (밀리미터): | 1.6*3.2-3.0*6.0 | 케이블 중량: | 5.2-15(kg/km) |
| 색상: | 흰색 또는 맞춤형 | 파장: | 1310nm, 1550nm |
| 직경(±1μm): | 125μm | 코팅 직경(±5μm): | 250μm |
| 작동 온도: | -20 ℃ ~ 70 ℃ | 길이: | 2000m 또는 맞춤형 |
| 섬유 브랜드: | 코닝, YOFC, OFS, 드라카 | ||
| 강조하다: | Indoor duplex fiber optic cable,LSZH duplex optical cable,2000M PVC fiber optic cable |
||
제품 설명
Indoor Duplex Optical Cable 2000M LSZH/PVC/PU
Simplex cable use Φ600μm or Φ900μm tight buffer fiber as optical communication medium, The tight buffer fiber wrapped with a layer of aramid yarn as strength member units, which is most extruded to produce a layer of (PVC) or low-smoke halogen-free material (LSZH, low-smoke, halogen-free, flame retardant) jacket.
Product Applications
- Optical fiber active connection jumper or tail fiber
- Indoor shaft stage and forced ventilation level wiring
- Interconnection of instruments and communication equipment
Product Features
- Adopt a tight sleeve optical fiber for easy stripping
- Aramid yarn reinforced element makes the optical cable have excellent tensile resistance
- Good performance of flame-retardant, low induced attenuation within the operating temperature range
- The jacket of figure-8 structure is easy to be peeled off and used
- Meet various requirements of market and clients
Optical Parameter and Properties
| Optical fiber type | Test wavelength | Decay | Full injection bandwidth (MHZ.km) | Effective modal bandwidth (MHZ.km) | Minimum bending radius(mm) |
|---|---|---|---|---|---|
| G652D | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 16 |
| G657A1 | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 10 |
| G657A2 | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 7.5 |
| 62.5/125 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥200/500 | 30 |
| 50/125 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥500/500 | 30 |
| OM3 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | 7.5 |
| OM4 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | 7.5 |
| OM5 | 850/953nm/1300nm | 3.0/.../1.0 | 3.5/.../1.5 | ≥3500/1850/500 | 7.5 |

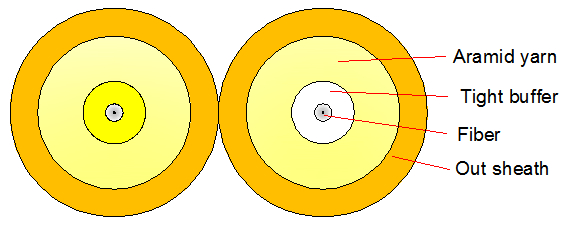

Product Structure
Product Picture
Why Choose TAKFLY?
Professional Manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experienced
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control:
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery:
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any doubt, feel free to contact me at any time!
