Duplex Armored Optical Cable 2000M LSZH/PVC/PU
제품 상세 정보:
| 원래 장소: | 중국, 심천 |
| 브랜드 이름: | DF/OEM/Nuetral |
| 인증: | CE/ROHS/REACH/ISO9001/ISO14001 |
| 모델 번호: | TK-PC-48F-SC-OS2-50M |
결제 및 배송 조건:
| 최소 주문 수량: | 협상 가능 |
|---|---|
| 가격: | negotiable denpend on QTY |
| 포장 세부 사항: | 물집 상자 + 판지 |
| 배달 시간: | 영업일 기준 5-9일은 수량에 따라 다릅니다. |
| 지불 조건: | 서부 동맹, T/T, MoneyGram/Paypal |
| 공급 능력: | 1000pcs/day |
|
상세 정보 |
|||
| 제품명: | 번들 기갑 광케이블 | 외부 직경 (밀리미터): | 3.0mm |
|---|---|---|---|
| 섬유 수: | 2 | 코어 강화: | 아라미드 원사 |
| 재료: | 스테인레스 스틸 | 직경(±1μm): | 125μm |
| 재킷 재료: | LSZH/PVC | 색상: | White&Blue 또는 맞춤형 |
| 파장: | 1310nm, 1550nm | 길이: | 2000m 또는 맞춤형 |
| 작동 온도: | -20 ℃ ~ 70 ℃ | 코팅 직경(±5μm): | 250μm |
| 섬유 브랜드: | 코닝, YOFC, OFS, 드라카 | ||
| 강조하다: | duplex armored fiber optic cable,2000m LSZH fiber optic cable,PVC PU armored optical cable |
||
제품 설명
Duplex Armored Optical Cable 2000M LSZH/PVC/PU
Bundle Armored Optical Cable 2000M LSZH/PVC/PU

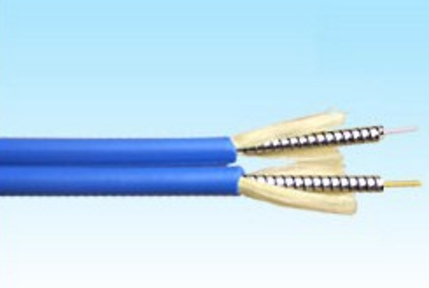

Duplex 8 glyph zipcord armored cable use Φ600µm or Φ900µm flame-retardant tight buffer fiber as optical communication medium. The tight buffer fiber wrapped with a layer of steel wire, and aramid yarn as strength member units, such unit is extruded with a layer of PVC or LSZH material as inner jacket. Then the cable is completed with a layer of PVC or LSZH(Low smoke, Zero halogen, Flame-retardant) jacket.
Duplex 8 glyph zipcord armored cable use Φ600µm or Φ900µm flame-retardant tight buffer fiber as optical communication medium. The tight buffer fiber wrapped with a layer of steel wire, and aramid yarn as strength member units, such unit is extruded with a layer of PVC or LSZH material as inner jacket. Then the cable is completed with a layer of PVC or LSZH(Low smoke, Zero halogen, Flame-retardant) jacket.
Fiber Optic Cable Applications
- Optical fiber active connection jumper or tail fiber
- Optical connections in optical communication equipment rooms and optical distribution frames
- Interconnection of instruments and communication equipment
Fiber Optic Cable Features
- Good mechanical and environmental characteristics
- Flame retardant characteristics meets the requirements of relevant standards
- The mechanical characteristics meet the requirements of relevant standards
- Soft, flexible, easy to splice, and with big capacity data transmission
- Anti rodent and UV stable
- Meet various requirements of market and clients
Fiber Optic Cable Parameter and Properties
Fiber Optic Cable Structure
Product Picture
Why choose TAKFLY?
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experienced
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control:
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery:
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any doubt, feel free to contact me at any time!
