상세 정보 |
|||
| 연결 구조: | FC-SC | 허용 측면 압력: | > 1000 (N/100mm) |
|---|---|---|---|
| 허용 인장 강도: | 1000N <10000N | 핵심: | 단일 코어 |
| 외피 재료: | PVC | 섬유 유형: | 0.9mm 2.0mm 3.0mm |
| 섬유 길이: | 1m 3m 5m 10m 또는 사용자 정의 | 커넥터: | FC에 대한 SC |
| 삽입 손실: | <0> | 반환 손실: | ≥50dB |
| 반복성: | ≤0.1 | 내구성: | <0.1dB 전형적인 변화, 1000 짝짓기 |
| 상호 교환 성: | ≤0.2db | 작동 온도: | -20 ° C ~ +70 ° C |
| 저장 온도: | -40' Ｃ ~ +80' Ｃ | ||
| 강조하다: | Simplex Fiber Optic Patch Cord,PVC Sheath Fiber Optic Cable,Customized Length Optical Patch Cord |
||
제품 설명

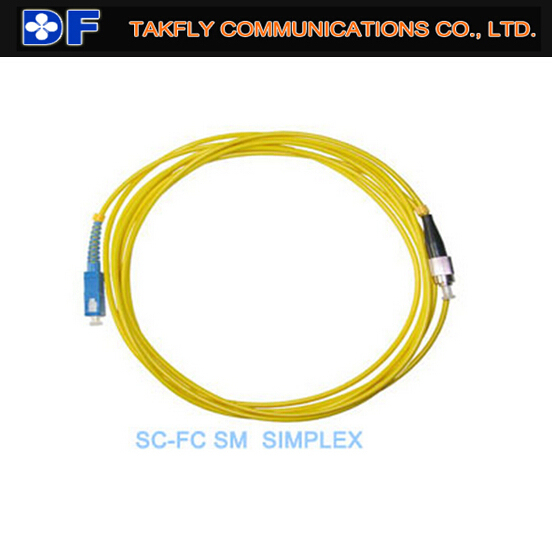

SC to FC SM Simplex Fiber Optic Patch Cord
High-performance SC to FC single mode simplex fiber optic patch cord designed for equipment jumper cables, cross connects, and work area connections. Manufactured using OFNR riser grade cable and 100% factory tested to ensure performance to TIA/EIA-568-B-3 standards.
Available Specifications
- Length options: 1.1m, 3m, 5m, 10m
- Cable diameter: 2.0mm or 3.0mm loose tube
- End face options: UPC or APC polish
Key Features
- Excellent durability and exchangeability
- High temperature stability
- Low insertion loss and back reflection loss
- Superior quality standard PC/UPC/APC polishing
- Compliant with Telcordia GR-326-CORE, TIA/EIA and IEC standards
- RoHS compliant, green production
- High stability in various environments
- Custom orders available
Technical Specifications
| Parameter | SM(PC) | SM(UPC) | SM(APC) | MM(PC) |
|---|---|---|---|---|
| Insertion loss | <0.3dB | ≤0.2dB | <0.3dB | <0.3dB |
| Return loss | ≥50dB | ≥50dB | ≥65dB | ≥35dB |
| Repeatability | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 |
| Durability | <0.1dB typical change, 1000 mating | |||
| Interchangeability | ≤0.2dB | |||
| Vibration | ≤0.2dB | |||
| Operating Temperature | -20°C ~ +70°C | |||
| Storage Temperature | -40°C ~ +80°C | |||
| Cable Diameter | 3.0mm, 2.0mm, 0.9mm | |||
All patch cords are available in both multimode (62.5/125µ M and 50/125µ M) and single mode cable-types, in duplex and simplex versions.
