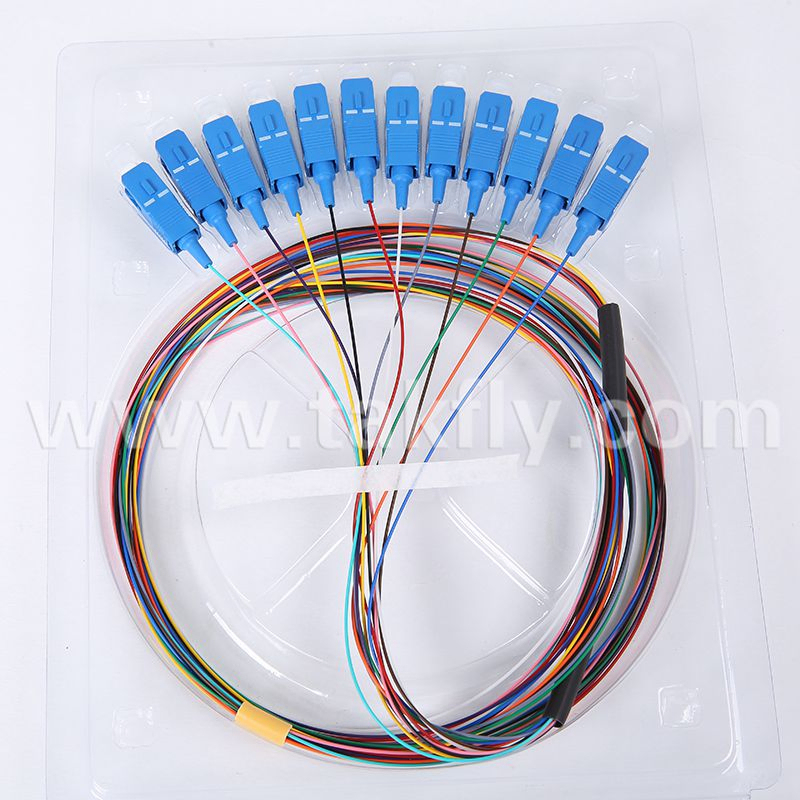

12 Core SC/UPC Single-Mode Fiber Optic Pigtail with 900um Tight Buffer and 2 Years Warranty
제품 요약
12 Core SC/UPC Single-Mode Color Fiber Optic Pigtail Fiber Optic Pigtails provide an optimal solution for fusion splicing within fiber optic enclosures. Featuring low insertion loss and low backreflection, these color-coded 900um tight buffer pigtails are designed for high fiber count splicing ...
Product Custom Attributes
연결 구조:
SC
재료 모양:
둥근 와이어
측면 압력:
> 1000 (N/100mm)
인장 강도:
> 10000N
핵심 수:
12 핵심
외피 재료:
PVC
커넥터 유형:
SC, LC, FC, 세인트 등
재킷 OD:
0.9/2.0/3.0mm
폴란드 유형:
UPC/APC
페룰 소재:
지르코니아 세라믹
삽입 손실:
≤0.3 db
반환 손실:
≥45 dB
작동 파장:
1310, 1510 nm
작동 온도:
-40~80℃
저장 온도:
-45~85°C
강조하다:
900um Tight Buffer Fiber Optic Pigtail
,2 Years Warranty Optical Pigtail
,1-5 Days Delivery Fiber Pigtail
기본 속성
원래 장소:
센즈헨, 중국(본토)
인증:
RoHS, CE, ISO9001
부동산 거래
최소 주문 수량:
1
가격:
0.21
제품 설명
12 Core SC/UPC Single-Mode Color Fiber Optic Pigtail
Fiber Optic Pigtails provide an optimal solution for fusion splicing within fiber optic enclosures. Featuring low insertion loss and low backreflection, these color-coded 900um tight buffer pigtails are designed for high fiber count splicing applications. The industry-standard color coding simplifies enclosure layout and organization.
Specifications
| Parameter | Unit | FC, SC, LC | ST, MU | MT-RJ, MPO | E2000 |
|---|---|---|---|---|---|
| Insertion loss (typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 |
| Operating wavelength | nm | 1310, 1510 | |||
| Exchangeability | dB | ≤0.1 | ≤0.1 | ≤0.2 | ≤0.2 |
| Vibration | dB | ≤0.2 | |||
| Operating temperature | °C | -40~80 | |||
| Storage temperature | °C | -45~85 | |||
| Cable diameter | mm | φ3.0, φ2.0, φ0.9 | |||
Fiber Optic Pigtail Color Coding
1. Blue
2. Orange
3. Green
4. Brown
5. Grey
6. White
7. Red
8. Black
9. Yellow
10. Purple
11. Pink
12. Aqua
Key Features and Applications
- Color-coded fiber jacket for easy identification and management
- Low insertion loss and back reflection loss
- Clearly identifiable fiber buffer colors under all lighting conditions
- Reduces installation time and prevents incorrect patching
Applications
- Data centers and premise installations
- Telecommunication networks
- Ethernet, fiber channel, ATM, LAN, MAN and WAN
- Data communication systems
- Indoor applications
Product Images
Applications
Order Information
Certificates
Factory Photo
