상세 정보 |
|||
| 연결 구조: | SC/LC | 재료 모양: | 둥근 와이어 |
|---|---|---|---|
| 허용 측면 압력: | 100 (N/100mm) | 허용 인장 강도: | 100n <1000n |
| 핵심: | 단일 코어 | 외피 재료: | PVC |
| 섬유 유형: | G652D, G655, G657, Om1/Om2/Om3/Om4 | 세련: | PC, UPC, APC |
| 핵심 번호: | 단순성 | 작동 온도: | -40C ~+80C |
| 섬유 모드: | 단일 모드 또는 멀티 모드 | 케이블 직경: | 0.9mm, 2.0mm, 3.0mm |
| 작동 파장: | 1310/1550NM | 재킷 재료: | PVC/Lszhofnp/Ofnr |
| 삽입 손실: | 0.15dB MTRJ: 0.30dB | ||
| 강조하다: | 100N Tensile Strength Loopback Fiber Optic Patchcord,-40C to +80C Operating Temperature Fiber Optic Patchcord,1310/1550nm Wavelength FTTH Patchcord |
||
제품 설명
FTTH Single Mode Multimode Loopback Fiber Optic Patchcord
FTTH Single Mode Multimode Loopback Fiber Optic Patchcord assemblies provide a looped signal from the source device to hardware for testing purposes, enabling signal checks for both transmit and receive functions.
Key Features
- Designed for testing applications
- 100% functionally tested
- Available in various connector types
- SC/LC duplex clip for insertion accuracy
- 8 inches standard length
- Custom lengths available upon request
Applications
- Equipment Interconnection
- Device Pig-tailing
- Premise Networks
- Patch Panel Applications
- Communications Connections
Technical Specifications
- Connector Types: SC, LC, MU, MTRJ
- Polish Types: PC, UPC, APC
- Insertion Loss (Typical): 0.15 dB (MTRJ: 0.30 dB)
- Insertion Loss (Maximum): 0.30 dB (MTRJ: 0.50 dB)
- Durability: < 0.2dB (500 cycles)
- Operational Temperature: -20°C to +70°C
Detailed Specifications
| Item | Unit | Parameter |
|---|---|---|
| Operating Wavelength | Nm | 1310/1550 |
| Attenuation Range | dB | 1-10dB(1dB step), 15, 20, 25, 30dB |
| Return Loss | dB | PC:≥50 UPC: ≥55 APC: ≥60 |
| Attenuation Tolerance | dB | ≤1.0 (11-30dB) |
| Working Temperature | °C | -25°C~+75°C |
| Storage Temperature | °C | -40°C~+85°C |

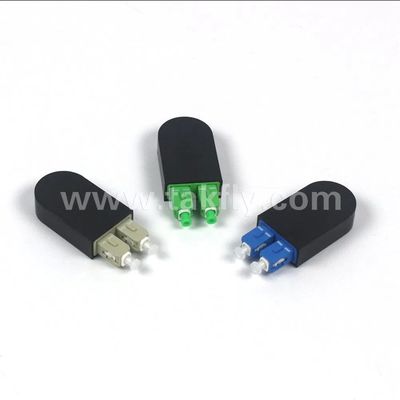

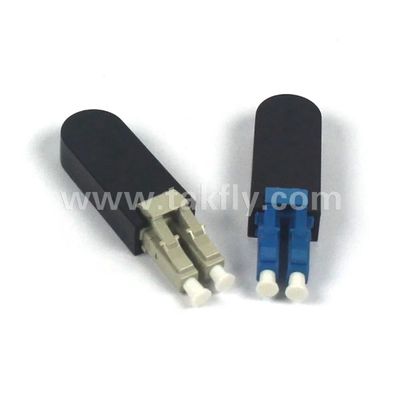

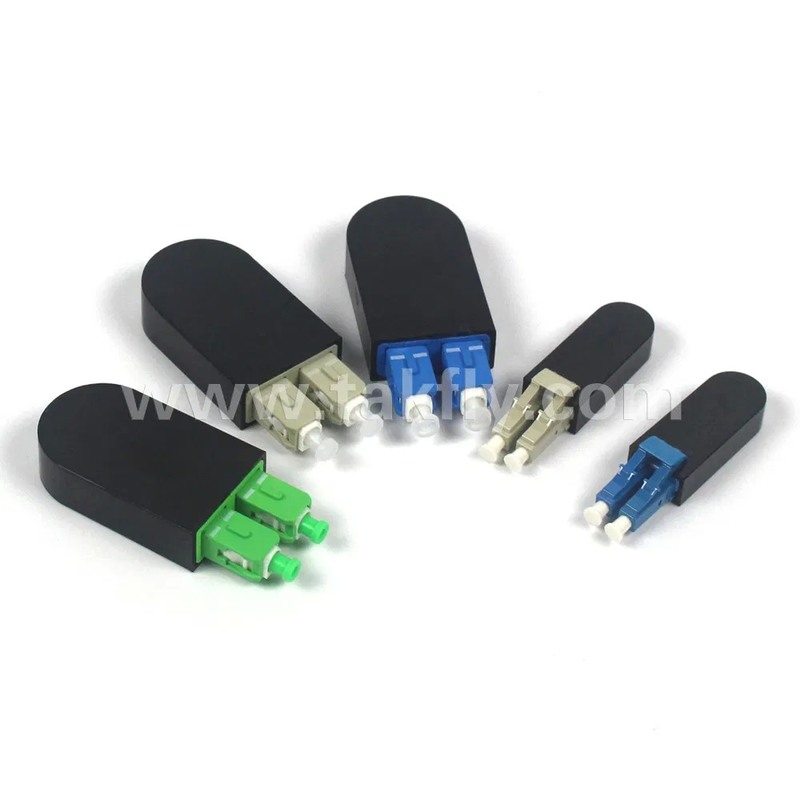

Product Images
Why Choose TAKFLY
Manufacturing Excellence
- 18+ years experience in fiber optic products manufacturing
- 450+ assembly workers with 3+ years experience
- 26+ R&D Engineers
- 16 Germany-imported Injection Machines
- 10+ Cable Production Lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- OEM branding available
- Regular participation in international exhibitions
- 24/7 after-sales service
Quality Control Process
- Raw material incoming inspection
- Full inspection after each production process
- Half-production inspection
- Finished product inspection before packing
- Pre-shipment spot check
Delivery & Shipping
- Samples: 1-3 working days
- Mass Production: 3-7 working days
- Packaging Options: Plastic Bag, Carton, Pallet
- Shipping Methods: DHL, UPS, FEDEX, TNT, EMS (3-5 days), Sea or Air freight
Payment Terms
T/T, Paypal, Western Union and L/C accepted. Competitive pricing available for large quantity orders.
With over 5 years of experience in this field, we provide professional service and technical support. Contact us today for inquiries or product questions.
