상세 정보 |
|||
| 연결 구조: | 12cores 섬유 점퍼 | 재료 모양: | 둥근 와이어 |
|---|---|---|---|
| 허용 측면 압력: | 100 (n/100mm) <1000 (n/100mm) | 허용 인장 강도: | 100n <1000n |
| 외피 재료: | PVC | 커넥터 유형: | SC, FC, ST, LC, MTRJ, MPO, MTP, MU, SMA, ECT |
| 케이블 자켓 색상: | 노란색, 파란색, 녹색, 아쿠아, 빨간색, 마젠타, 베이지 색 | 케이블 외경: | 0.9mm, 1.6mm, 1.8mm, 2.0mm, 2.4mm, 2.8mm, 3.0mm |
| MPO MTP 연마: | PC, UPC, 자동 위상 조정 | 섬유 유형: | OS1, OS2, OM1, OM2, OM3, OM4 |
| 케이블 자켓 재료: | PVC, LSZH, OFNP, PE | 섬유 코어: | SX, DX, 4 ~ 144 멀티 섬유 코어 |
| 반환 손실: | PC> 30dB; APC> 50dB | 삽입 손실: | <0> |
| 작동 온도: | -45 ~ +85도 | ||
| 강조하다: | SC Duplex OM1 fiber optic cable,62.5/125um fiber patch cord,3mm PVC fiber optic cable |
||
제품 설명

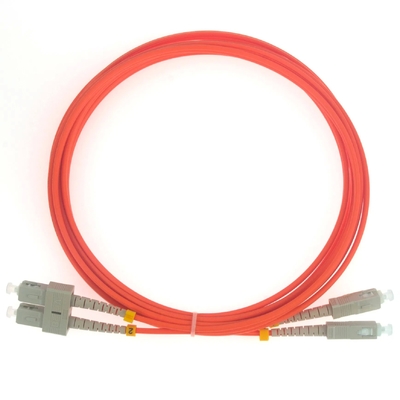

SC Multimode OM1 62.5/125um Duplex Fiber Optic Patch Cord
The SC Multimode OM1 62.5/125um Duplex Fiber Optic Patch Cord provides quick and easy fiber termination in the field. Available for 900 micron applications, this solution enables installers to terminate and make connections in minutes at equipment and fiber patch panels. Our quick connector system eliminates the need for epoxy, adhesives, or costly curing ovens. All key manufacturing steps are completed in the factory to ensure excellent connection quality at a competitive price.
Key Features
- Low insertion loss
- High return loss (low reflection at interface)
- Easy installation process
- Cost-effective solution
- High reliability
- Low environmental sensitivity
- User-friendly design
Applications
- CATV systems
- Active device termination
- Telecommunication networks
- Metro networks
- Local Area Networks (LANs)
- Data processing networks
- Test equipment
- Premise installation
- Wide Area Networks (WANs)
Technical Specifications
| Parameter | Singlemode (UPC) | Singlemode (APC) | Multimode |
|---|---|---|---|
| Insertion loss | ≤ 0.2db | ≤ 0.2db | ≤ 0.25db |
| Return loss | ≥55db | ≥65db | ≥30db |
| Durability | ≤ 0.1db typical change, 1000 times mating | ||
| Operating Temperature | -45 to +85°C | ||
Ferrule Hole Sizes
| Type | Singlemode (UPC/APC) | Multimode |
|---|---|---|
| Size 1 | 125.0+1/-0um, Concentricity: ≤1.0um (UPC) 125.0+1/-0um, Concentricity: ≤0.5um (APC) |
125.0um, Concentricity: ≤3.0um |
| Size 2 | 125.3+1/-0um, Concentricity: ≤1.0um (UPC) 125.3+1/-0um, Concentricity: ≤0.5um (APC) |
127.0um, Concentricity: ≤3.0um |
| Size 3 | 125.5+1/-0um, Concentricity: ≤1.0um (UPC) 125.5+1/-0um, Concentricity: ≤0.5um (APC) |
128.0um, Concentricity: ≤3.0um |
| Size 4 | 126.0+1/-0um, Concentricity: ≤1.0um (UPC) 126.0+1/-0um, Concentricity: ≤0.5um (APC) |
- |
Product Connector Options
| Item | Connector Description | Item | Connector Description |
|---|---|---|---|
| PC/UPC/APC | PC/UPC/APC | ||
| Connector Singlemode 9/125 | ST | Connector Multimode (50/125 or 62.5/125) | ST |
| SC | SC | ||
| FC | FC | ||
| LC | LC | ||
| MU | MU | ||
| MTRJ(female) | MTRJ(female) | ||
| MTRJ(male) | MTRJ(male) | ||
| DIN | E2000 | ||
| E2000 |

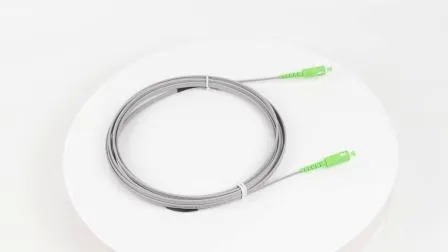

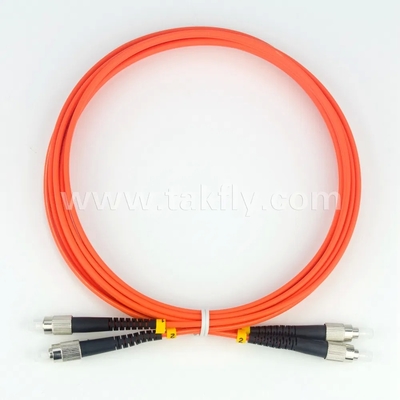

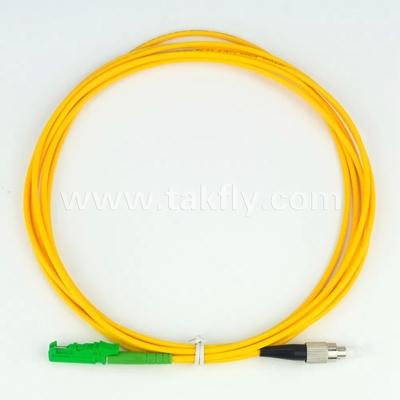

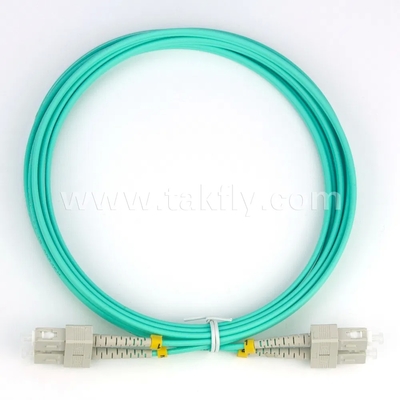

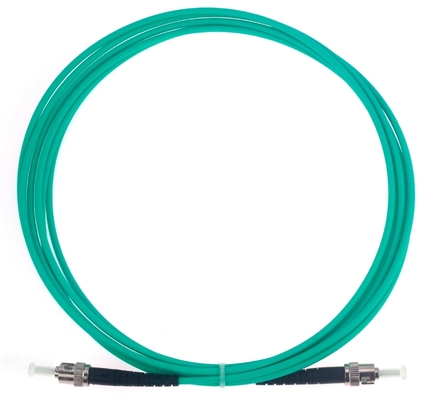

Product Images
