상세 정보 |
|||
| 연결 구조: | SC-SC | 재료 모양: | 둥근 와이어 |
|---|---|---|---|
| 허용 측면 압력: | 100 (N/100mm) | 허용 인장 강도: | 100n <1000n |
| 핵심: | 단순 듀플렉스 쿼드 | 외피 재료: | PVC, LSZH |
| 섬유 모드: | 단일 모드 | 케이블 직경: | 0.9mm, 2.0mm, 3.0mm |
| 작동 파장: | 1310/1550NM | 케이블 길이: | 1m, 3m, 5m 또는 사용자 정의 |
| 작동 온도: | -40C ~+80C | 삽입 손실: | ≤0.20dB |
| 가변성: | ≤ 0.20dB | 곡률 반경: | 10 ≤ r ≥25 nm |
| 주파수를 삽입하고 당기십시오: | > 1000 시간 | ||
| 강조하다: | SC-SC single mode fiber optic cable,duplex fiber optic patch cable 0.9mm,single mode fiber optic cable 3.0mm |
||
제품 설명

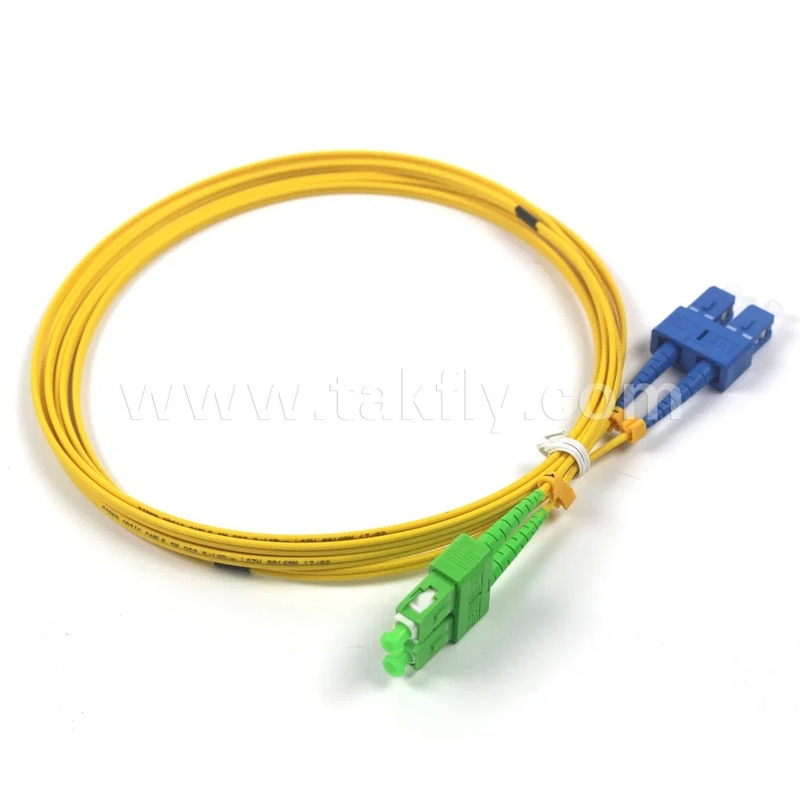

Sc/APC-Sc/Upc Single Mode Duplex Fiber Optic Patch Cable
The Sc/APC-Sc/Upc Single Mode Duplex Fiber Optic Patch Cable is a high-performance patch cord designed for connecting devices in fiber optic networks. These ISO/IEC 11801 compliant cables feature SC/APC connectors for reliable signal transmission.
Key Features
- Low insertion loss and high return loss
- Excellent exchangeability between connectors
- Supports 10 Gigabit data transmission rates
- Available with multiple connector types: FC, LC, SC, MU, ST, MTRJ, E2000, MPO
- Polishing options: PC, UPC and APC
- Compliant with IEC standards
Applications
- Telecommunication networks
- Fiber optic communication systems
- CATV, LAN, MAN, WAN networks
- Test & Measurement equipment
- Optical access networks
Technical Specifications
| Parameter | Unit | Standard & Requirement |
|---|---|---|
| Insertion loss | dB | ≤0.20 |
| Changeability | dB | ≤ 0.20dB |
| Radius of curvature | nm | 10 ≤ r ≥25 |
| Curvature eccentricity | um | <50 |
| Fiber core undercut | nm | <50 |
| Insertion loss change | dB | < 0.1 |
| Return loss change | dB | < 5 |
| Insert & pull out (Max.) | kg | 2 |
| Insert and pull frequency | Time | > 1000 |
| Operating temperature | °C | -40 ~ +85 |

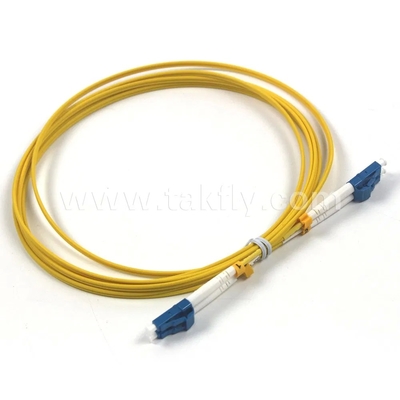

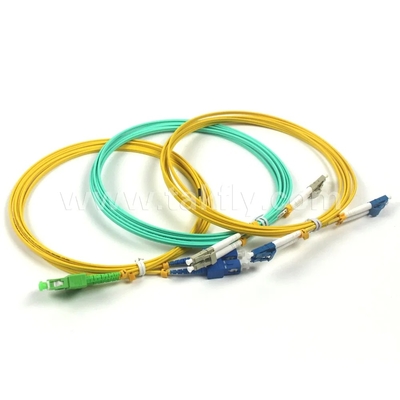

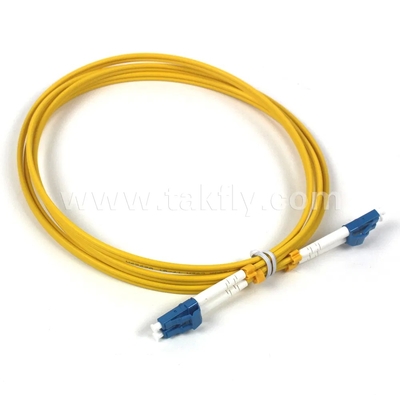

Product Images
