상세 정보 |
|||
| 코어 수: | 단일 코어 | 물미 말단 면: | APC |
|---|---|---|---|
| 모양: | 조각 | 제조 공정: | 본떠집니다 |
| 커넥터 유형: | SC | 유형: | 내장 및 직선 |
| 케이블 자켓 색상: | 노란색, 파란색, 녹색, 아쿠아, 빨간색, 마젠타, 베이지 색 | 케이블 외경: | 0.9mm, 1.6mm, 1.8mm, 2.0mm, 2.4mm, 2.8mm, 3.0mm |
| 세련: | PC, UPC, 자동 위상 조정 | 섬유 유형: | OS1, OS2, OM1, OM2, OM3, OM4 |
| 케이블 자켓 재료: | PVC, LSZH, OFNP, PE | 커넥터 색상: | 녹색, 파란색 또는 베이지 색 |
| 반환 손실: | PC> 30dB; APC> 50dB | 삽입 손실: | <0> |
| 생산 능력: | 주당 20,000 | ||
| 강조하다: | Fiber optic connector APC,SC FC LC fiber connector,Low insertion loss fiber optic |
||
제품 설명
Factory Price SC/FC/LC/ST/APC/UPC Ferrule Fiber Optic Patch Cord Connector
Optical Fiber Connector provides quick and easy fiber termination in the field. Available for 900 micron applications, allowing installers to terminate and make connections in minutes at equipment and fiber patch panels. Our quick connector system eliminates the need for epoxy, adhesives, or costly curing ovens. All key manufacturing steps are completed in the factory to ensure excellent connection quality. High quality at low prices through direct manufacturer sourcing.
Key Features
- Low insertion loss
- High return loss (minimal reflection at interface)
- Easy installation
- Cost-effective solution
- Reliable performance
- Low environmental sensitivity
- User-friendly design
Applications
- CATV systems
- Active device termination
- Telecommunication networks
- Metro networks
- Local Area Networks (LANs)
- Data processing networks
- Test equipment
- Premise installation
- Wide Area Networks (WANs)
Technical Specifications
| Mode | SM | MM |
|---|---|---|
| Polish | UPC | APC | PC |
| Insertion Loss | ≤0.2dB | ≤0.3dB | ≤0.2dB |
| Return Loss | ≥55dB | ≥65dB | ≥35dB |
| Interchangeability | ≤0.2dB | |
| Salt Spray | ≤0.1dB | |
| Repeatability | ≤0.1dB (1000 times) | |
| Vibration | ≤0.2dB (550Hz 1.5mm) | |
| Temperature | ≤0.2dB (-40+85 sustain 100 hours) | |
| Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) | |
| Apex Offset | 0μm ~ 50μm | |
| Radius of Curvature | 7mm ~ 25mm | |

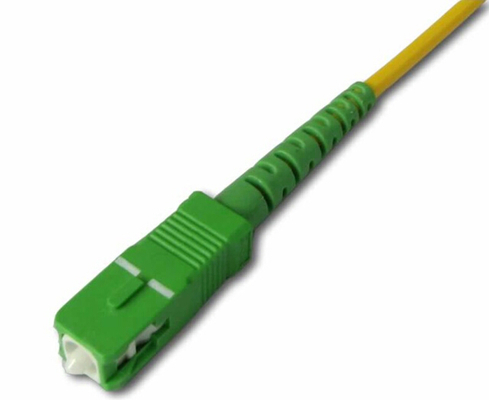

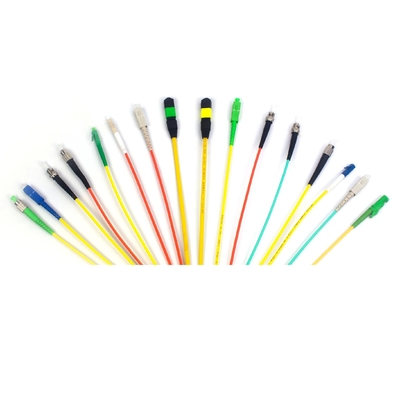

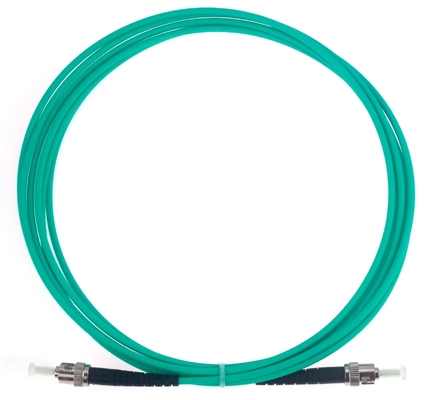

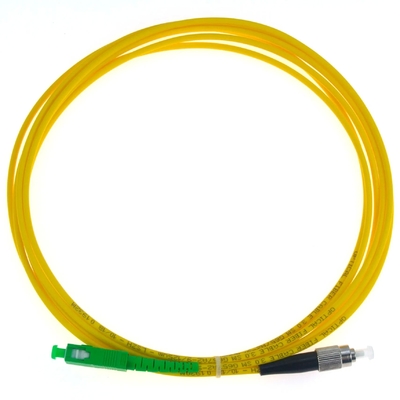

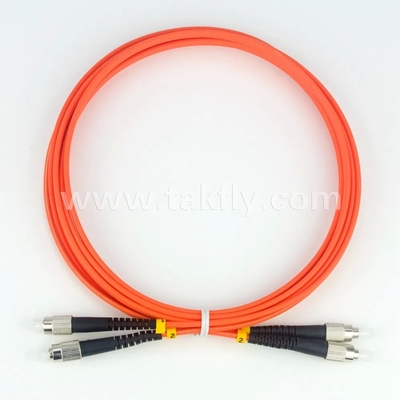

Product Images
