상세 정보 |
|||
| 연결 구조: | E2000-SC | 재료 모양: | 둥근 와이어 |
|---|---|---|---|
| 허용 측면 압력: | 100 (n/100mm) <1000 (n/100mm) | 허용 인장 강도: | 100n <1000n |
| 핵심: | 이중 코어 | 외피 재료: | PVC/LSZH/OFNP/OFNR |
| 섬유 유형: | G652D, G655, G657 | 세련: | PC, UPC, APC |
| 작동 온도: | -40C ~+80C | 케이블 길이: | 1m.3m.5m 또는 사용자 정의 |
| 섬유 모드: | 단일 모드 또는 멀티 모드 | 케이블 직경: | 1.6mm, 2.0mm, 3.0mm |
| 작동 파장: | 1310/1550NM | 삽입 손실: | ≤0.20dB |
| 반환 손실: | ≥60db | ||
| 강조하다: | duplex fiber optic patchcord,single mode fiber optic cable,G652D G657A fiber optic |
||
제품 설명

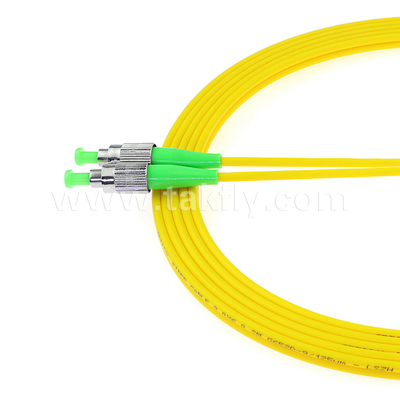

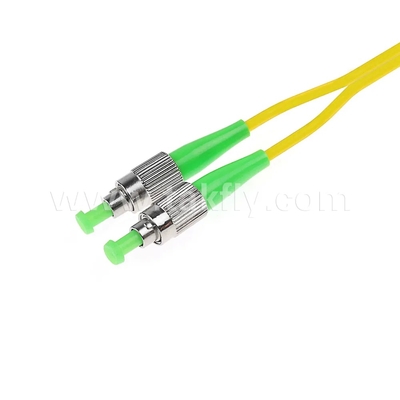

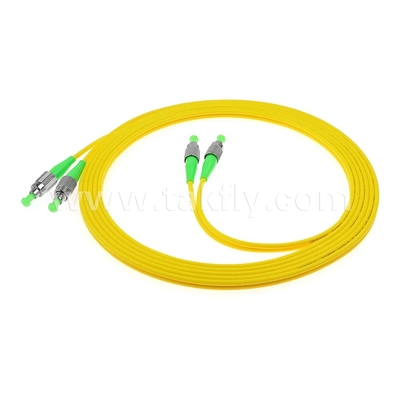

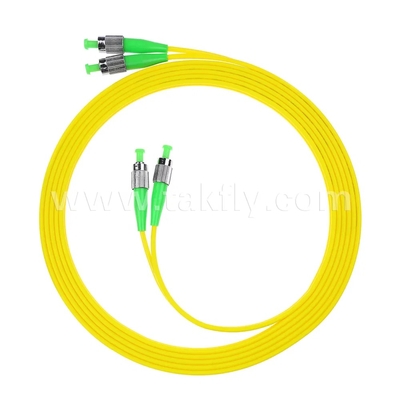

CE RoHS Qualified FCAPC to FCAPC Singlemode G652D G657A Duplex Fiber Optic Patchcord
Fiber Optic Patch Cords are designed to interconnect or cross connect fiber networks within structured cabling systems. Typical fiber connector interfaces are SC, ST, FC, MU, MTRJ, E2000 and LC in either multimode or single-mode applications.
Key characteristics:
- All connectors have precision pre-radiused zirconia ferrules
- ST and FC connectors have metal bodies
- Corning, YOFC, OFS fiber is standard
- Standard and custom configurations available
- Duplex clips included with duplex configurations
Features
- Comply with IEC and YD-T826/1996, NTT, YD/T826, YD/T895, YD/T896, RoHS Standard
- Connector type standard: IEC61574 series
- Low Insertion Loss: IEC 61300-3-4, IL≤0.20dB
- High Return Loss: IEC61300-3-6; RL≥60dB
- Flammability: IEC60332-1
- Excellent repeat plug feature and interchangeability
- Ceramic Ferrule with high-density docking (concentricity ≤0.5)
- Available with general PVC or LSZH cable options
Advantages
- 4-stage polishing process: 1200um, 9um, 1um and 0.5um polishing
- Ferrule concentricity <0.5
- Insertion Loss <0.2dB
- Fast lead time: 2-4 working days
- Manufacturing machines imported from Germany and Japan
Applications
- Telecommunications
- CATV, LAN, MAN, WAN, Test & Measurement
- Medical applications
Specifications
| Item | Parameter |
|---|---|
| Operating Wavelength(nm) | 1260 ~ 1650 |
| Type(1*N) | 1*2 | 1*4 | 1*8 | 1*16 | 1*32 | 1*64 |
| Max.Insertion Loss(dB) | 3.9 | 7.2 | 10.3 | 13.5 | 16.8 | 20.3 |
| Max.Uniformity(dB) | 0.8 | 0.8 | 0.8 | 1.0 | 1.5 | 2.0 |
| Min.Return Loss(dB) | 55 |
| Max.PDL(dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Type(2*N) | 2*2 | 2*4 | 2*8 | 2*16 | 2*32 | 2*64 |
| Max.Insertion Loss(dB) | 4.2 | 7.5 | 10.6 | 13.9 | 17.2 | 20.8 |
| Max.Uniformity(dB) | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 |
| Fiber Type | ITU-T G657A1, G657A2 and G.652D |
| Max.Temperature Stability(dB) | 0.5 (Typical 0.3) |
| Operating Temperature(ºC) | -40 ~ +85 |
| Storage Temperature(ºC) | -40 ~ +85 |
All measurements are made at room temperature, and connectors not included
