상세 정보 |
|||
| 연결 구조: | SC | 재료 모양: | 둥근 와이어 |
|---|---|---|---|
| 허용 측면 압력: | 100 (n/100mm) <1000 (n/100mm) | 허용 인장 강도: | 100n <1000n |
| 핵심: | 멀티 코어 | 외피 재료: | PVC |
| 커넥터 유형: | SC, FC, ST, LC, MTRJ, MPO, MTP, MU, SMA, ECT | 케이블 외경: | 0.9mm, 1.6mm, 1.8mm, 2.0mm, 2.4mm, 2.8mm, 3.0mm |
| 케이블 자켓 재료: | PVC, LSZH, OFNP, PE, PU | 섬유 유형: | OS1, OS2, OM1, OM2, OM3, OM4 |
| 섬유 코어: | SX, DX, 4 ~ 144 멀티 섬유 코어 | 반환 손실: | PC> 30dB; APC> 50dB |
| 삽입 손실: | <0.3 dB | 작동 온도: | -45 ~ +85도 |
| 페룰 홀 크기: | 125.0+1/-0UM, ConcerTricity : ≤1.0um | 125.0+1/-0UM, ConcerTricity : ≤0.5um | 125.0UM, ConcerTricity | ||
| 강조하다: | 12 core OM3 fiber optic pigtail,LSZH jacket fiber optic cable,SC FC ST LC fiber pigtail |
||
제품 설명

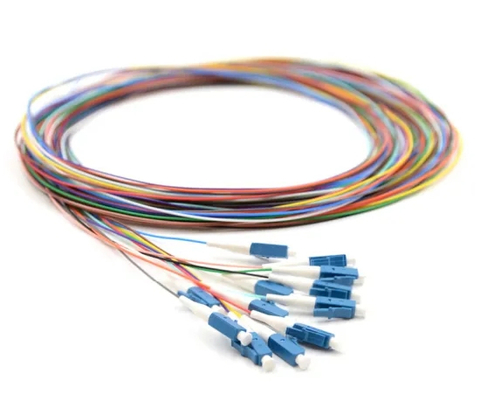

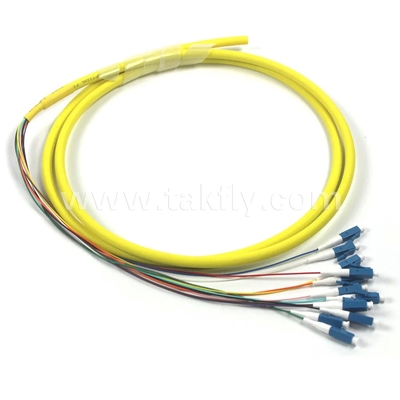

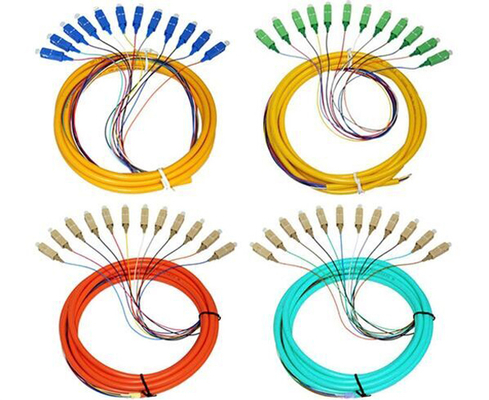

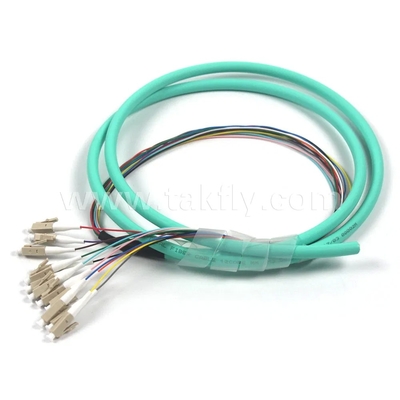

High Quality LSZH Jacket 12 Cores LC SC FC ST Bundle Fan-out OM3 Fiber Optic Pigtail
Product Description
Optical Fiber Pigtail provides quick and easy field termination of fibers. Available in 900 micron options, allowing installers to terminate and make connections in minutes at equipment and fiber patch panels. Our quick connector system eliminates the need for epoxy, adhesives, or costly curing ovens. All key manufacturing steps are completed in the factory to ensure excellent connection quality. We offer high quality products at competitive prices through direct sourcing.
Key Features
- Low insertion loss
- High return loss (low reflection at interface)
- Easy installation
- Cost-effective solution
- Reliable performance
- Low environmental sensitivity
- User-friendly design
Applications
- CATV systems
- Active device termination
- Telecommunication networks
- Metro networks
- Local Area Networks (LANs)
- Data processing networks
- Test equipment
- Premise installation
- Wide Area Networks (WANs)
Technical Specifications
| Parameter | Singlemode (UPC) | Singlemode (APC) | Multimode |
|---|---|---|---|
| Insertion loss | ≤ 0.2dB | ≤ 0.2dB | ≤ 0.25dB |
| Return loss | ≥55dB | ≥65dB | ≥30dB |
| Durability | ≤ 0.1dB typical change, 1000 times mating | ||
| Operating Temperature | -45 to +85°C | ||
Ferrule Hole Sizes
| Singlemode (UPC) | Singlemode (APC) | Multimode |
|---|---|---|
| 125.0+1/-0μm, Concentricity: ≤1.0μm | 125.0+1/-0μm, Concentricity: ≤0.5μm | 125.0μm, Concentricity: ≤3.0μm |
| 125.3+1/-0μm, Concentricity: ≤1.0μm | 125.3+1/-0μm, Concentricity: ≤0.5μm | 127.0μm, Concentricity: ≤3.0μm |
| 125.5+1/-0μm, Concentricity: ≤1.0μm | 125.5+1/-0μm, Concentricity: ≤0.5μm | 128.0μm, Concentricity: ≤3.0μm |
| 126.0+1/-0μm, Concentricity: ≤1.0μm | 126.0+1/-0μm, Concentricity: ≤0.5μm |
Product Options
| Item | Connector Description | Item | Connector Description |
|---|---|---|---|
| PC/UPC/APC | PC/UPC/APC | ||
| Connector Singlemode 9/125 | ST | Connector Multimode (50/125 or 62.5/125) | ST |
| SC | SC | ||
| FC | FC | ||
| LC | LC | ||
| MU | MU | ||
| MTRJ(female) | MTRJ(female) | ||
| MTRJ(male) | MTRJ(male) | ||
| DIN | E2000 | ||
| E2000 |
