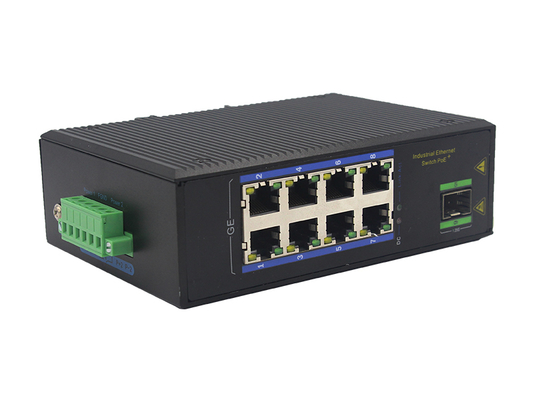

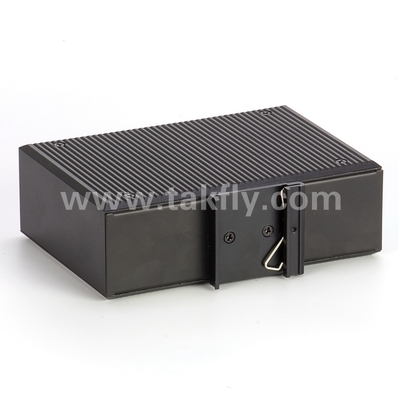

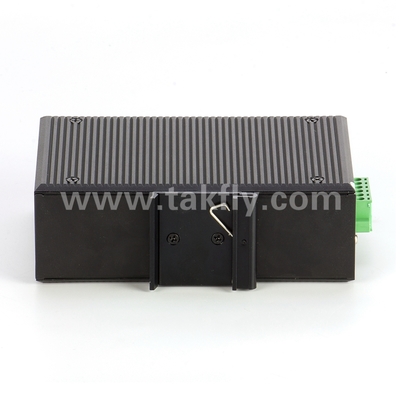

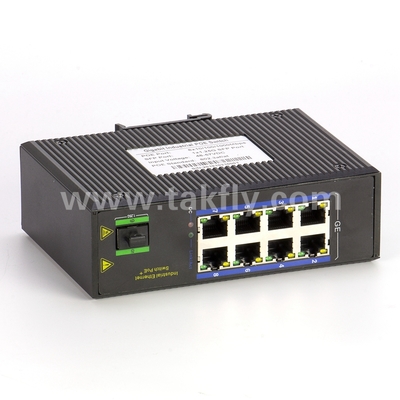

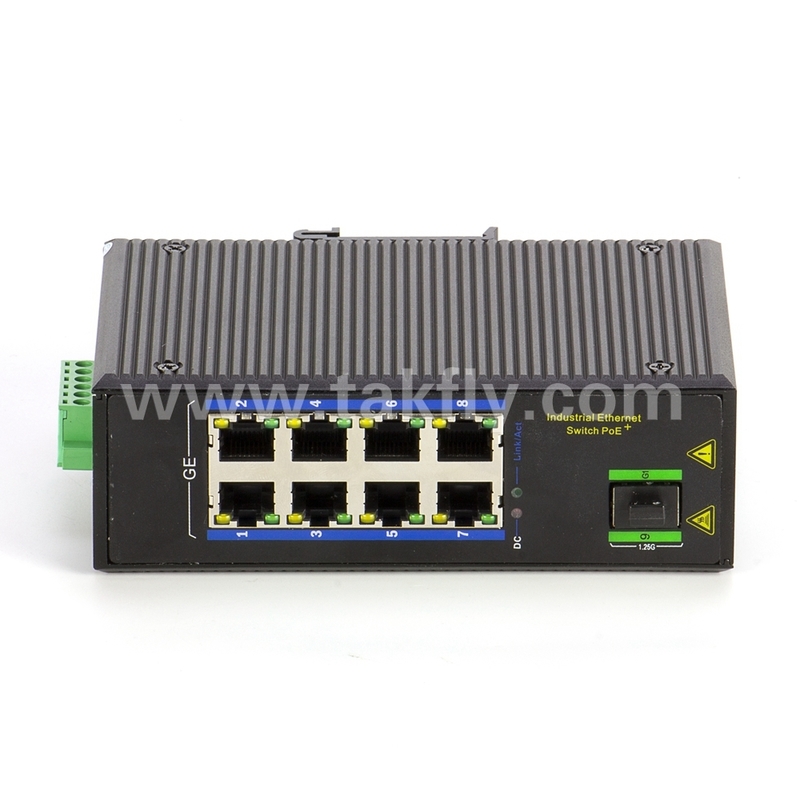

8-Port Industrial Gigabit POE Switch with SFP DIN-Rail Mount
제품 상세 정보:
| Place of Origin: | China |
| 브랜드 이름: | TAKFLY/OEM |
| 인증: | CE, ROHS, REACH |
| Model Number: | DF-1FG-4GPI |
결제 및 배송 조건:
| Minimum Order Quantity: | 1 |
|---|---|
| 가격: | 28.57USD |
| Packaging Details: | Carton box |
| Delivery Time: | 2~3 days |
| Payment Terms: | ,T/T,Western Union |
| Supply Ability: | 5000 piece/week |
|
상세 정보 |
|||
| Interface: | 8x10/100/1000Base-T POE port + 1x 1000Mbps SFP Slot | Power Supply: | Input Voltage: DC48～57V/Terminal block |
|---|---|---|---|
| Shell: | IP40 protect grade, metal shell | Installation: | DIN-Rail |
| Weight: | 0.70kg | Size: | 23*16.5*7.5cm |
| Warranty: | 5-years | ||
| 강조하다: | 8-port industrial POE switch,Gigabit Ethernet switch DIN-rail,SFP fiber switch POE |
||
제품 설명
Industrial Outdoor POE Ethernet Switch
1 SFP Port Media Converter | 8*10/100/1000M Gigabit Industrial POE Ethernet Switch
Product Attributes
| Attribute | Value |
|---|---|
| Interface | 8x10/100/1000Base-T POE port + 1x 1000Mbps SFP Slot |
| Power Supply | Input Voltage: DC48～57V/Terminal block |
| Shell | IP40 protect grade, metal shell |
| Installation | DIN-Rail |
| Weight | 0.70kg |
| Size | 23*16.5*7.5cm |
| Warranty | 5-years |
Product Description
Industrial PoE switch with 8 Port 10/100/1000Mbps PoE ports and 1 port 1000Mbps SFP slot, for connecting with devices like computer, switch, hub, server, etc, as well as powering network camera, industrial VoIP phone, wireless AP and other PoE supported devices.
Specially designed for harsh outdoor applications. Its 6KV network port surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted PoE system. Power input also chooses industry-standard types of power.
Features
- 8 Port 10/100/1000Mbps POE with Auto Uplink, 1 port 1000Mbps SFP
- 8 Port support PoE, supports IEEE 802.3af(15.4W), IEEE802.3at PoE (30W)
- Automatic MAC address learning and aging
- Automatically support IGMP (Multicasting)
- 10/100/1000Mbps Auto-negotiation, auto-MDI-MDI-X
- LED indicators for monitoring power/link/activity
- Supports 10/100/1000Mbps-Full/Half-duplex
- Supports DIN-Rail installation
- -40℃~+85℃ operating temperature range
Specifications
| Interface | 8x10/100/1000Base-T POE port + 1x 1000Mbps SFP Slot |
|---|---|
| Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u; 100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; IEEE802.3af, IEEE802.3at |
| PoE Specification | PoE Standard: IEEE802.3af/ IEEE802.3at |
| Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
| Fiber Media | Multi-mode: 2KM; Single-mode: 20/40/60/80KM |
| Power Supply | Input Voltage: DC48～57V/Terminal block |
| Installation | DIN-Rail |
| Warranty | 5 years |
