상세 정보 |
|||
| 제품 유형:: | 메가비트 산업용 DIN 레일 스위치 | 인터페이스: | 5×10/100Mbps RJ45 포트 |
|---|---|---|---|
| 전원공급장치: | 입력 전압 : DC48 ～ 57V/터미널 블록 | 껍데기: | IP40 보호 등급, 금속 쉘 |
| 설치: | Din-Rail | 보호 등급.:: | IP40 |
| 작동 온도:: | 40C~+85C | ||
| 강조하다: | 5-port DIN-rail PoE switch,Megabit industrial Ethernet switch,DIN-rail fiber switch with PoE |
||
제품 설명

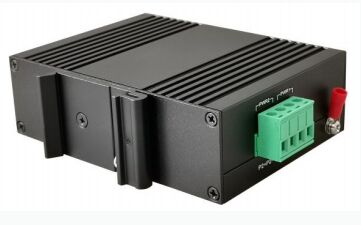

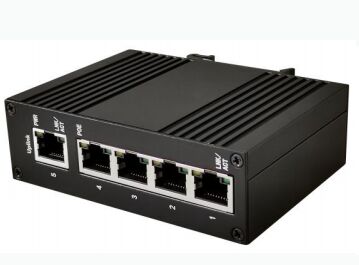

5-port Megabit Industrial DIN-Rail POE Switch
The 5-port Megabit Industrial DIN-Rail POE Switch adopts store-and-forward mode with high performance and low power consumption design. Featuring compact size, ease of use, and long lifespan, this product is engineered for industrial environments with comprehensive protection measures including lightning protection, anti-static, and reverse connection protection.
Operating temperature range of -40℃ to +85℃ ensures reliable performance in extreme conditions. The switch automatically learns and updates MAC addresses, enhancing network transmission and switching performance specifically for industrial applications.
Key Features
- 5×10/100Mbps RJ45 ports with Power over Ethernet (PoE) support
- Compliant with IEEE802.3 (Ethernet), IEEE802.3u (Fast Ethernet), and IEEE802.3x (flow control) standards
- Supports IEEE802.3af and IEEE802.3at PoE protocols
- Automatic negotiation for 10/100Mbps environments
- Auto MDI/MDIX crossover detection for easy installation
- Full-duplex and half-duplex communication support
- High-standard electromagnetic interference protection
- Dual redundant power inputs for uninterrupted operation
- Industrial-grade components with rigorous production control
- Full aluminum alloy casing for superior heat dissipation
- DIN rail mounting with IP40 protection rating
Technical Specifications
| Port Configuration | 5×10/100Mbps RJ45 ports |
|---|---|
| PoE Standards | IEEE802.3af, IEEE802.3at |
| Operating Temperature | -40℃ to +85℃ |
| Protection Rating | IP40 |
| Mounting | DIN rail |
| Power Input | Dual redundant power supply |
Applications
Intelligent transportation, industrial monitoring, mining, power generation, water conservancy, oil fields, infrastructure, ports, energy, agriculture, wireless coverage, military applications, and public utility markets. Ideal for harsh environments exceeding commercial product specifications.
