Female MPO MTP Multi-mode APC Fiber Mode Connector for Connections
제품 상세 정보:
| 브랜드 이름: | Takfly/DF |
| 인증: | CE, ROHS, ISO14001, ISO9001, CPR,ANATEL,REACH |
| Model Number: | TK-MPO-PC |
| 문서: | MPO-MPO MTP-MTP Patchcord s...1).pdf |
결제 및 배송 조건:
| Minimum Order Quantity: | 1 |
|---|---|
| 가격: | 14 |
| Packaging Details: | International Export Packing |
| Delivery Time: | 1-3 Working Days( Depends On Quantity) |
| Payment Terms: | TT 100% |
| Supply Ability: | 3000 Pcs/ Day |
|
상세 정보 |
|||
| 섬유 직경: | 50/125um, 62.5/125um, 9/125um | 반복 가능성: | ≤ 0.1dB |
|---|---|---|---|
| 섬유 모드: | 단일 모드 / 멀티 모드 | 호환성: | ≤ 0.2dB |
| 테스트 파장 (NM): | SM : 1310/1550 mm : 850/1300 | 삽입 손실 스타드: | 표준 ： ≤0.35/0.7 (전형적인/max) 낮은 손실 ： ≤0.2/0.35 (일반/최대) |

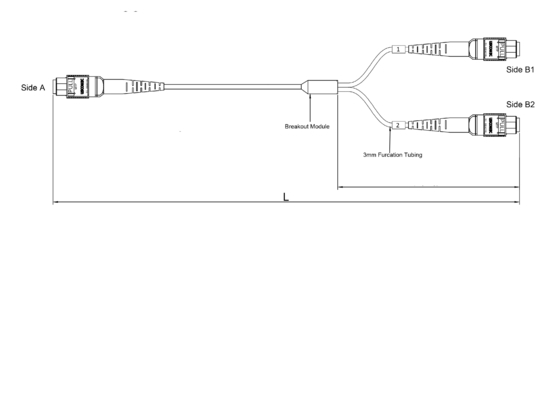

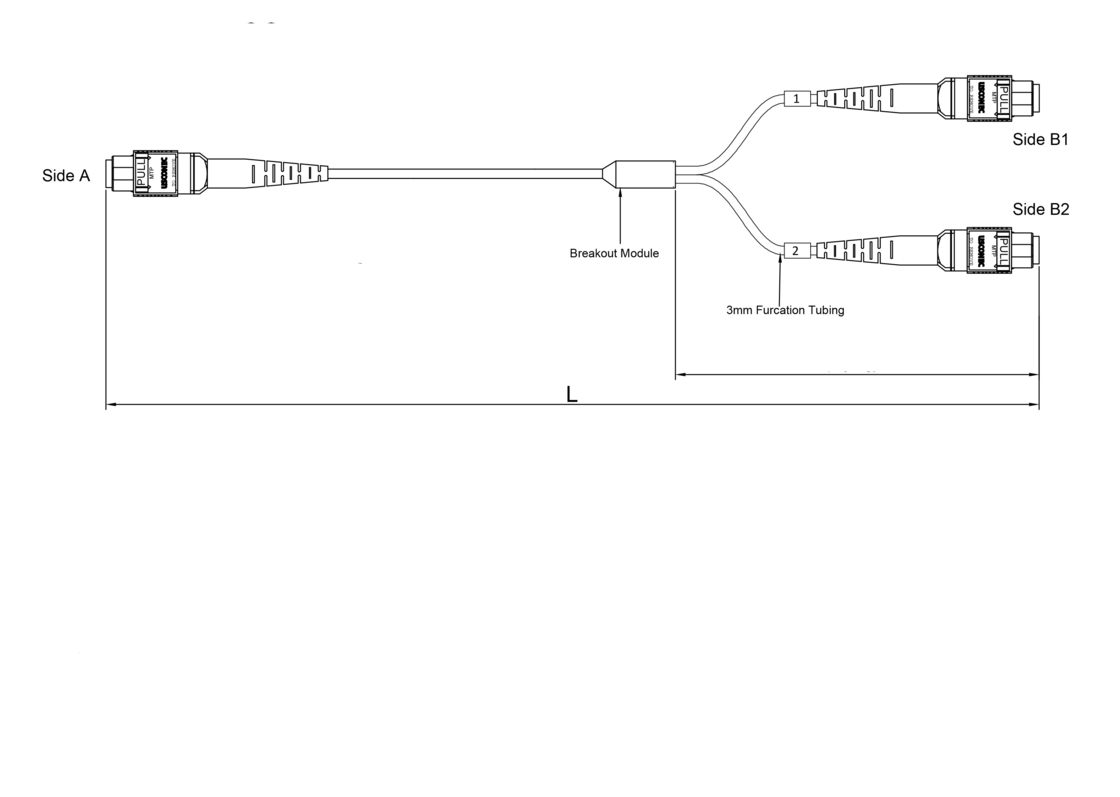

| 다른 팬아웃 방식: | 사용 가능 | 브레이크아웃 길이: | 0.5M / 1M /1.5M / 맞춤형 |
| 강조하다: | Multi-mode MPO MTP Connector,APC Fiber Mode Connector,Female MPO MTP Connector |
||
제품 설명
Product Description:
The MPO MTP Cable is a versatile solution for high-density data center applications, providing reliable connectivity for multi-fiber push-on connectors. This product is designed to meet the demands of modern networking environments, offering seamless integration and exceptional performance.
Available in both singlemode and multi-mode fiber modes, the MPO MTP Fiber Optic Cable is suitable for a wide range of network configurations. Whether you require long-distance connectivity or high-speed data transfer within a local area network, this cable delivers consistent and efficient results.
When it comes to testing wavelength, the MPO MTP Cable offers flexibility and precision. For singlemode fiber, the test wavelengths are 1310nm and 1550nm, while for multi-mode fiber, the wavelengths are 850nm and 1300nm. This ensures accurate signal transmission and reception across different network setups.
The insertion loss standards of the MPO MTP Cable are designed to meet industry requirements for optimal performance. The standard insertion loss is ≤0.35dB/0.7dB (Typical/Max), guaranteeing reliable signal transmission. For low-loss applications, the cable offers an insertion loss of ≤0.2dB/0.35dB (Typical/Max), ensuring minimal signal degradation and maximum efficiency.
With a variety of fiber diameters available, including 50/125um, 62.5/125um, and 9/125um, the MPO MTP Cable can accommodate diverse network setups and requirements. Whether you need high bandwidth capabilities or enhanced signal clarity, this cable provides the necessary flexibility to support your specific connectivity needs.
The jacket OD of the MPO MTP Cable ranges from 3.0mm to 4.5mm, featuring a double jacket design for added durability and protection. This robust construction ensures the longevity and reliability of the cable, making it ideal for demanding data center environments and high-traffic network installations.
Features:
- Product Name: MPO MTP Fiber Optic Patchcord
- Interchangeability: ≤ 0.2dB
- Insertion loss Stardand:
- Standard: ≤ 0.35/0.7 (Typical/Max)
- Low Loss: ≤ 0.2/0.35 (Typical/Max)
- Jacket Od: 3.0mm-4.5mm (double Jacket)
- Length: Customized (1/2/3/5/7/10m, Etc)
- Polish Type: PC/APC
Technical Parameters:
| Interchangeability | ≤ 0.2dB |
| Breakout Length | 0.5M / 1M / 1.5M / Customized |
| Other Fanout Way | Available |
| Gender | Male( With PIN)/ Female(without PIN) |
| Fiber Diameter | 50/125um, 62.5/125um, 9/125um |
| Jacket Od | 3.0mm-4.5mm(double Jacket) |
| Polish Type | PC/APC |
| Repeatability | ≤ 0.1dB |
| Length | Customized( 1/2/3/5/7/10m, Etc) |
| Durability | ≤ 0.2dB |
Applications:
The TK-MPO-PC product from Takfly/DF is a versatile MPO MTP Fiber Optic Trunk Cable that is suitable for a wide range of applications and scenarios. With its high-quality construction and excellent performance attributes, this product is ideal for use in various environments.
Whether you need to establish high-speed data connections in a data center, telecommunications network, or enterprise IT infrastructure, the TK-MPO-PC is a reliable choice. Its certification by CE, ROHS, ISO14001, ISO9001, CPR, ANATEL, and REACH guarantees its compliance with international quality standards.
The TK-MPO-PC is designed to offer exceptional repeatability of ≤ 0.1dB and durability of ≤ 0.2dB, ensuring consistent and reliable performance over time. It supports both Singlemode and Multi-mode fiber modes, making it versatile for various network requirements.
With options for Male (With PIN) and Female (without PIN) genders, the TK-MPO-PC can be used for MPO MTP Fiber Optic Patchcord applications, enabling easy and efficient connections in fiber optic networks. Its Test Wavelength of SM:1310/1550 MM:850/1300 ensures compatibility with different wavelength requirements.
Whether you need to set up Multi-Fiber Push-On Terminations in a large-scale data center or establish high-density fiber connections in a telecommunications network, the TK-MPO-PC is the perfect solution. With a minimum order quantity of 1 and a supply ability of 3000 pcs/day, this product offers flexibility and scalability to meet your project requirements.
Packaged in International Export Packing, the TK-MPO-PC ensures safe and secure delivery to your location. With a delivery time of 1-3 working days (depending on quantity) and payment terms of TT 100%, acquiring this high-quality MPO MTP product is convenient and efficient for your business needs.
Support and Services:
The MPO MTP product offers comprehensive Product Technical Support and Services to assist customers with any inquiries or issues they may encounter. Our dedicated team of experts is available to provide guidance, troubleshooting, and resolution for all technical matters related to the MPO MTP product. Whether you need assistance with installation, configuration, maintenance, or troubleshooting, our technical support team is here to help ensure that you get the most out of your MPO MTP product.
Packing and Shipping:
Product Packaging and Shipping for MPO MTP:
The MPO MTP product is carefully packaged to ensure safe delivery to our customers. Each unit is placed in a sturdy cardboard box with protective cushioning to prevent any damage during transit.
For shipping, we use reliable courier services to deliver your order promptly and securely. You can track your package using the provided tracking number to monitor its journey to your doorstep.
