High-Density MPO Patch Panel with 12F Fiber Counts and Customizable Options for Data Centers
제품 상세 정보:
| 원래 장소: | 광동, 심천 |
| 브랜드 이름: | TAKFLY |
| 인증: | CE,ROHS,REACH,ISO9001,ISO14001 |
| 모델 번호: | DF-카세트-T1771 |
결제 및 배송 조건:
| 최소 주문 수량: | 1 조각 |
|---|---|
| 가격: | US$0.01 ~ US$1200/PC |
| 포장 세부 사항: | 스펀지 + 상자 + 판지 |
| 배달 시간: | 0 일 |
| 지불 조건: | L/C,D/A,D/P,T/T,웨스턴 유니온,MoneyGram |
|
상세 정보 |
|||
| 반복성 반복성: | ≤ 0.1dB | 섬유 개수: | 12층 |
|---|---|---|---|
| 어댑터 유형: | LC 이중/SC 단순 | 다른 팬아웃 방식: | MTP, LC 사용 가능 |
| 섬유 호환성: | 다중 모드; 싱글모드 | 맞춤형: | 예 |
| 커넥터 인터페이스: | LC | Hs 코드: | 854470000 |
| 세련: | PC, UPC, APC | 커넥터 극성: | A형/B형/C형 |
| 파이버 모드: | 멀티 모드 | 외부 피복 색상: | 노란색, 물색 또는 맞춤형 |
| 깊이: | 200mm | 작동 온도: | -40℃ ~ +80℃ |
| 브레이크아웃 길이: | 0.5M / 1M /1.5M / 맞춤형 | ||
| 강조하다: | High-Density MPO Patch Panel,12F Fiber Counts MPO Patch Panel,Customizable MPO Patch Panel |
||
제품 설명
Description:
To address the challenges of maximizing cabinet space in modern data centers, we proudly present our Takfly High-Density Rackmount Cabling Solution. This integrated system streamulates fiber management and connection, enabling a clean, scalable, and efficient infrastructure.

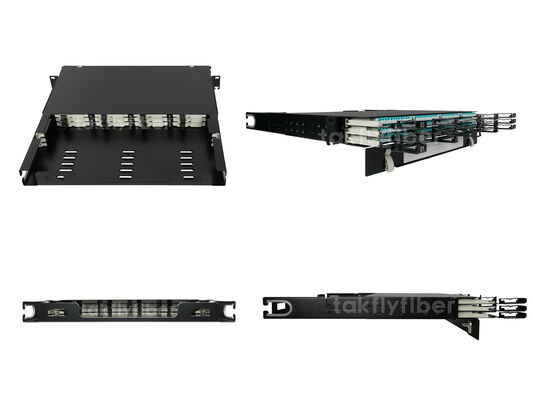

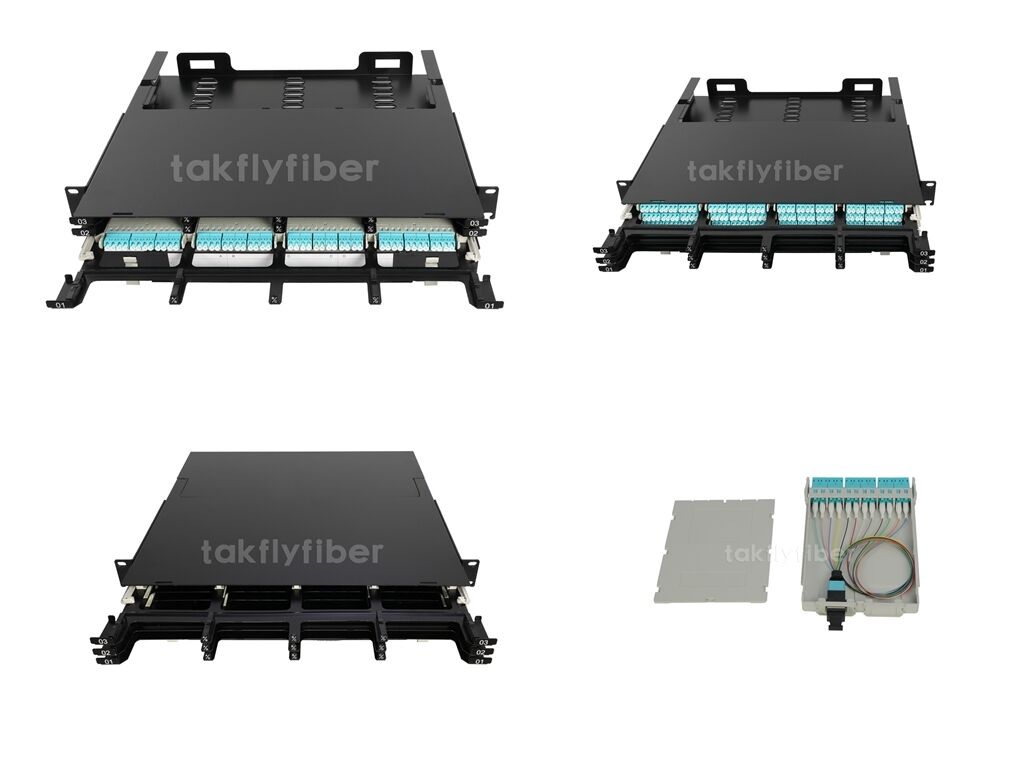

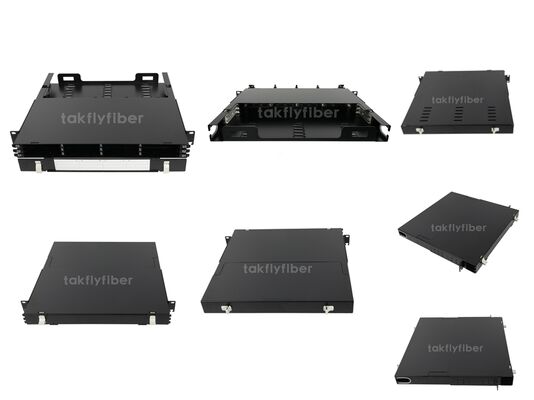

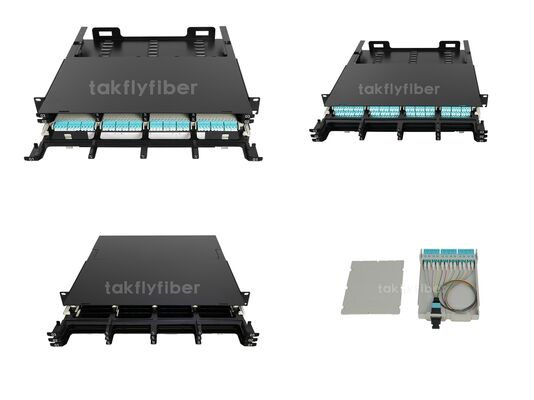

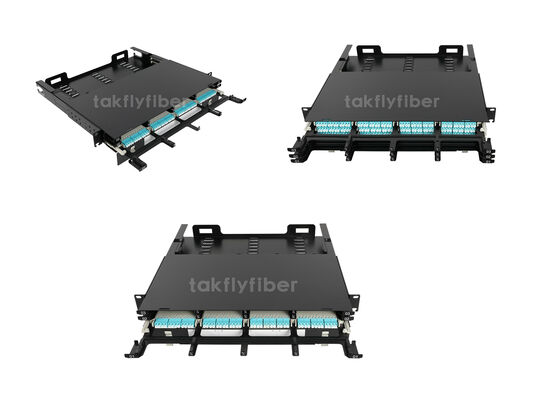

Our core solution features a series of rackmounted fiber distribution boxes in 1U, 2U, and 4U configurations. Designed to house and manage our easy-plug, pre-terminated MTP/MPO fiber modules, these enclosures facilitate a true plug-and-play deployment.
We offer complete compatibility with supporting modules and accessories to build a flexible network backbone:
-
MPO-to-LC Cassette Modules (12-fiber & 8-fiber configurations)
-
4-Port MPO Adapter Panels
Each easy-plug MTP/MPO to LC cassette module accommodates a 12-fiber trunk cable and comes pre-loaded with LC adapters. This modular design simplifies installation, reduces on-site termination errors, and allows for easy reconfiguration or expansion.
The Takfly series is engineered for superior network availability and performance, making it the ideal structured cabling foundation for demanding SAN, LAN, and Data Center applications. Optimize your space and simplify your fiber management today.
Features:
- Apply to Main Distribution Area, Horizontal Distribution Area(HDA), Equipment Distribution Area(EDA) cabling systems to meet the cabling requirements of 10G/40G/100G.
- Rack-type shell, with the functions of protecting, managing and organizing optical cables.
- Meet high-density wiring requirements, 1U supports 144 cores, 2U supports 288 cores, 4U supports 576 cores.
- Modular installation method is adopted inside, which avoids welding and improves wiring efficiency.
- The box structure is a sliding rail design, extending straight and smoothly.
- Using three layers of trays, each layer can be placed 4 sets of module boxes or MPO adapter panels, a total of 12 sets of three layers.
Applications:
- Data center
- Telecommunication networks
Standard:
- TIA/EIA-568
- RoHS
- ISO9001
Specifications:
| Size | 482.6mm*464.9mm*44.2mm(1U) |
| Material | SPCC, 1.2mm Black (RAL9005) |
| Weight | 6.8KG |
Structure:
FQA :
1. Q: Are you a manufacturer or a trading company?
A: Yes, we are a direct manufacturer and solution provider based in Shenzhen, China, specializing in FTTH and data center total solutions. Our company was founded in 2000.
2. Q: What is your minimum order quantity (MOQ)?
A: We accept orders starting from 1 piece, though unit pricing is higher for small quantities. Volume orders receive significantly more competitive pricing.
3. Q: Can you provide FOB pricing?
A: Yes, we quote FOB and other Incoterms as needed. We ship via air (DHL, TNT, FedEx, etc.) for smaller orders and by sea for large-volume shipments.
We can provide a detailed quote including shipping costs and lead time once we know your specific product requirements and order quantity. We have established partnerships with competitive freight forwarders to offer you flexible logistics solutions.
4. Q: How do you ensure product quality?
A: Our production strictly follows IEC and European standards. We hold certifications including CE, ISO, RoHS, CPR, and ANATEL. Every product undergoes 100% testing before shipment.
5. Q: What is your typical lead time?
A: Lead time depends on the product and order size. For standard fiber optic patch cords, we can deliver within 2–3 working days for orders under 5,000 pieces, as we stock regular items. We also accommodate urgent orders whenever possible.
6. Q: What is your warranty policy?
A: We provide a 1-year warranty on patch cords from the delivery date, covering non-artificial damage. In case of artificial damage, we offer free repair services; only shipping costs will be borne by the customer.
7. Q: What kind of packaging do you use?
A: We use standard export-grade packaging. Custom logo printing is available upon request—please inform us before we finalize the quotation.
8. Q: Do you offer OEM/ODM services?
A: Yes, we support full OEM/ODM for all products and are willing to sign a Confidentiality Agreement upon request.
9. Q: Can I request a sample?
A: Samples are available depending on the product. We provide free samples for items under $10 USD; however, shipping costs must be covered by the customer prior to dispatch.
10. Q: What is the ordering process?
A:
1. Send us an inquiry with product name, specifications, quantity, and shipping address (for FOB/CIF/CFR quotes).
2. We will issue a formal quotation with lead time.
3. Once the quote is confirmed, we send a Proforma Invoice with our bank details.
4. Production begins after receipt of payment.
5. We confirm shipping details with you before dispatch.
6. Tracking information is provided after shipment.
11. Q: What are your payment terms?
A: We accept T/T, Western Union, PayPal, and MoneyGram for full advance payment. For larger orders, we can arrange 50% deposit with the balance paid before delivery.
We are committed to offering you the most competitive pricing. If you receive a lower quote from another supplier with the same quality standards, TAKFLY will match that price.
