High Density 12F Customizable MPO Patch Panel for Data Center HDA EDA Applications
제품 상세 정보:
| 원래 장소: | 광동, 심천 |
| 브랜드 이름: | TAKFLY |
| 인증: | CE,ROHS,REACH,ISO9001,ISO14001 |
| 모델 번호: | DF-카세트-T1771 |
결제 및 배송 조건:
| 최소 주문 수량: | 1 조각 |
|---|---|
| 가격: | US$0.01 ~ US$1200/PC |
| 포장 세부 사항: | 스펀지 + 상자 + 판지 |
| 배달 시간: | 0 일 |
| 지불 조건: | L/C,D/A,D/P,T/T,웨스턴 유니온,MoneyGram |
|
상세 정보 |
|||
| 반복성 반복성: | ≤ 0.1dB | 섬유 개수: | 12층 |
|---|---|---|---|
| 어댑터 유형: | LC 이중/SC 단순 | 다른 팬아웃 방식: | MTP, LC 사용 가능 |
| 섬유 호환성: | 다중 모드; 싱글모드 | 맞춤형: | 예 |
| 커넥터 인터페이스: | LC | HS코드: | 854470000 |
| 세련: | PC, UPC, APC | 커넥터 극성: | A형/B형/C형 |
| 파이버 모드: | 멀티 모드 | 외부 피복 색상: | 노란색, 물색 또는 맞춤형 |
| 깊이: | 200mm | 작동 온도: | -40℃ ~ +80℃ |
| 브레이크아웃 길이: | 0.5M / 1M /1.5M / 맞춤형 | ||
| 강조하다: | High Density MPO Patch Panel,12F Fiber Counts MPO Patch Panel,Customizable MPO Patch Panel |
||
제품 설명
Product Launch: High-Density Fiber Optic Patch Panel Series
To maximize cabinet space utilization in modern data centers, we introduce our High-Density Rackmount Fiber Patch Panel Series—available in 1U, 2U, and 4U configurations—alongside fully compatible MPO-LC cassette modules and adapter panels.
This modular solution supports easy-plug MPO/MTP to LC fiber cassette integration, enabling efficient deployment of pre-terminated cabling systems in high-density environments. Designed for seamless scalability and flexibility, it is ideal for structured cabling across Main Distribution Areas, Horizontal Distribution Areas, and Equipment Distribution Areas, fully supporting 10G, 40G, and 100G applications.
Description:
Takfly series rackmounted patch panel is designed to manage and house easy-plug MTP / MPO to LC fiber cassette modules, for connecting plug-and-play pre-terminated high density MTP / MPO Fiber cabling system.This solution contributes to greater network availability that especially suitable for SAN, LAN and Data Center applications. Each easy-plug MTP / MPO to LC cassette is accommodated with a 12 fiber MTP / MPO based fiber assemblies, and pre-loaded with LC adapters in different fiber modes for your choices.
Features:
- Apply to Main Distribution Area, Horizontal Distribution Area(HDA), Equipment Distribution Area(EDA) cabling systems to meet the cabling requirements of 10G/40G/100G.
- Rack-type shell, with the functions of protecting, managing and organizing optical cables.

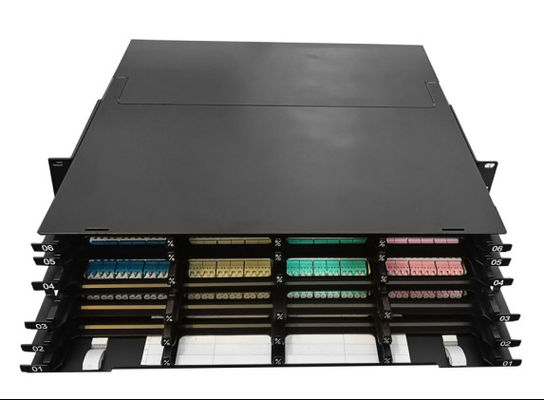

- Meet high-density wiring requirements, 1U supports 144 cores, 2U supports 288 cores, 4U supports 576 cores.
- Modular installation method is adopted inside, which avoids welding and improves wiring efficiency.

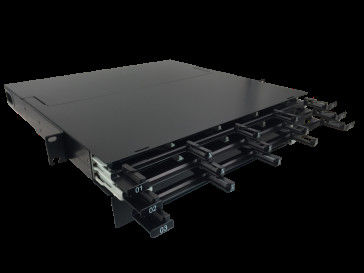

- The box structure is a sliding rail design, extending straight and smoothly.

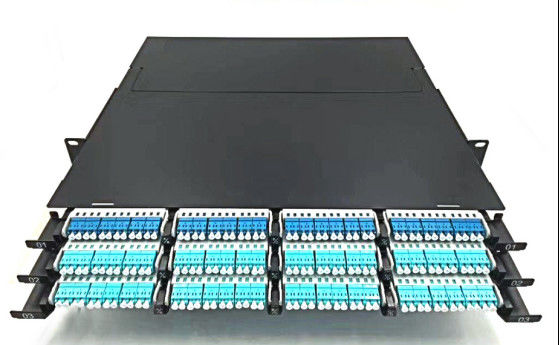

- Using three layers of trays, each layer can be placed 4 sets of module boxes or MPO adapter panels, a total of 12 sets of three layers.
Applications:
- Data center
- Telecommunication networks
Specifications:
| Size | 482.6mm*464.9mm*44.2mm(1U) |
| Material | SPCC, 1.2mm Black (RAL9005) |
| Weight | 6.8KG |
Standards & Certification:
- TIA/EIA-568
- RoHS
- ISO9001
Structure:
FQA :
A. Company & Capabilities
-
Q: Are you a manufacturer?
A: Yes. We are a manufacturer and total solution provider for FTTH and data center products, headquartered in Shenzhen, China, and established in 2000. -
Q: Can you offer OEM/ODM services?
A: Yes, we support full OEM/ODM customization. A Confidentiality Agreement can be signed upon request to protect your designs and information.
B. Product & Quality
3. Q: How is your quality assured?
A: Our production follows IEC and European standards, and we hold CE, ISO, RoHS, CPR, and ANATEL certifications. Every product undergoes 100% testing before delivery.
-
Q: What is your warranty policy?
A: We typically offer a 1-year warranty from delivery for products such as patch cords, covering non-artificial damage. For artificial damage, we provide free repair; the customer covers shipping costs. Warranty terms may vary by product.
C. Orders & Delivery
5. Q: What is your MOQ?
A: The MOQ can be as low as 1 piece, though larger quantities enable more competitive pricing.
-
Q: What is your lead time?
A: Lead time depends on the product and order quantity. For example, fiber optic patch cords (up to 5,000 pcs) typically take 2–3 working days. We stock standard items and can accommodate urgent requests. -
Q: What packing do you use?
A: We use international export-standard packaging. Custom logo printing is available—please inform us before quotation.
D. Samples & Pricing
8. Q: Can I request a sample?
A: Yes, depending on the product. Samples under $10 are free; the customer covers shipping prior to dispatch.
-
Q: Can you quote FOB prices?
A: Yes, we quote FOB and other Incoterms. We ship by air (DHL, TNT, UPS, FedEx) or by sea for larger volumes. We work with reliable forwarders to provide cost-effective shipping solutions. Please share detailed requirements and quantities for an accurate quote with freight and lead time.
E. Payment & Order Process
10. Q: How can I place an order?
A: The process is as follows:
1) Send an inquiry with product name, specifications, quantity, and destination (for FOB/CIF/CFR).
2) We provide a quotation with lead time.
3) After confirmation, we issue a Proforma Invoice (PI) with bank details.
4) Production starts upon payment receipt.
5) We confirm consignee details before shipping.
6) A tracking number is provided after dispatch.
-
Q: What are your payment terms?
A: We accept T/T, Western Union, PayPal, and MoneyGram. For larger orders, we can arrange 50% deposit with the balance paid before delivery.
Price Match Commitment
If you find a comparable product of the same quality at a lower price, TAKFLY is willing to match it—please contact us with details.
