2개 슬롯 LGX 박스와 1U 19 " 렉 섀시 8CH CWDM DWDM 먹스 역다중화기 파장 분할 다중화기
제품 요약
1U 19”Rack Chassis 8 Channels CWDM/DWDM Mux Demux With 2 Slot LGX Box Fiber Optic CWDM/DWDM - Features: - Low Insertion Loss - Wide pass band - High Channel Isolation - High Stability and reliability - Epoxy-free on Optical Path Fiber Optic CWDM/DWDM - Applications: - Line Monitoring - WDM Network - ...
Product Custom Attributes
8CH WDM 먹스 Demux
,8CH 파장 분활 multiplexer
,19 " WDM 먹스 역다중화기
기본 속성
부동산 거래
제품 설명
1U 19”Rack Chassis 8 Channels CWDM/DWDM Mux Demux With 2 Slot LGX Box
Fiber Optic CWDM/DWDM - Features:
- Low Insertion Loss
- Wide pass band
- High Channel Isolation
- High Stability and reliability
- Epoxy-free on Optical Path
Fiber Optic CWDM/DWDM - Applications:
- Line Monitoring
- WDM Network
- Telecommunication
- Cellular Application
- Fiber Optical amplifier
- Acess Network
Fiber Optic CWDM/DWDM - Performance Specifications:
| Parameters | Unit | Specifications | ||||
| Channel Count | Ch | 8 | ||||
| Channel Center Wavelength | nm |
1470/ 1490/ 1510/ 1530/ 1550/ 1570/ 1590/ 1610 |
||||
| Channel Passband | Min | nm | ±7.5 | |||
| Insertion Loss | Max | dB | <2.2 | |||
| Isolation | Adjacent Channel | Min | dB | 30 | ||
| Non-Adjacent Channel | Min | dB | 40 | |||
| Passband Ripple | Max | dB | 0.3 | |||
| Polarization Dependent Loss | Max | dB | 0.1 | |||
| Directivity | Min | dB | 55 | |||
| Return Loss | Min | dB | 50 | |||
| Polarization Mode Dispersion | Max | ps | 0.1 | |||
| Power Handling | Max | mW | 500 | |||
| Pigtail and Connector Type | COM | 0.9/mm black loose tube with connector | ||||
| Other ports | 0.9/mm white loose tube with connector | |||||
| Fiber Type | SMF-28e | |||||
| Fiber length | m | ≥1 | ||||
| Operating Temperature | °C | -10 ~ 70 | ||||
| Storage Temperature | °C | -40 ~ 85 | ||||
| Package Dimension | mm | (L)100×(W)80×(H)10 | ||||

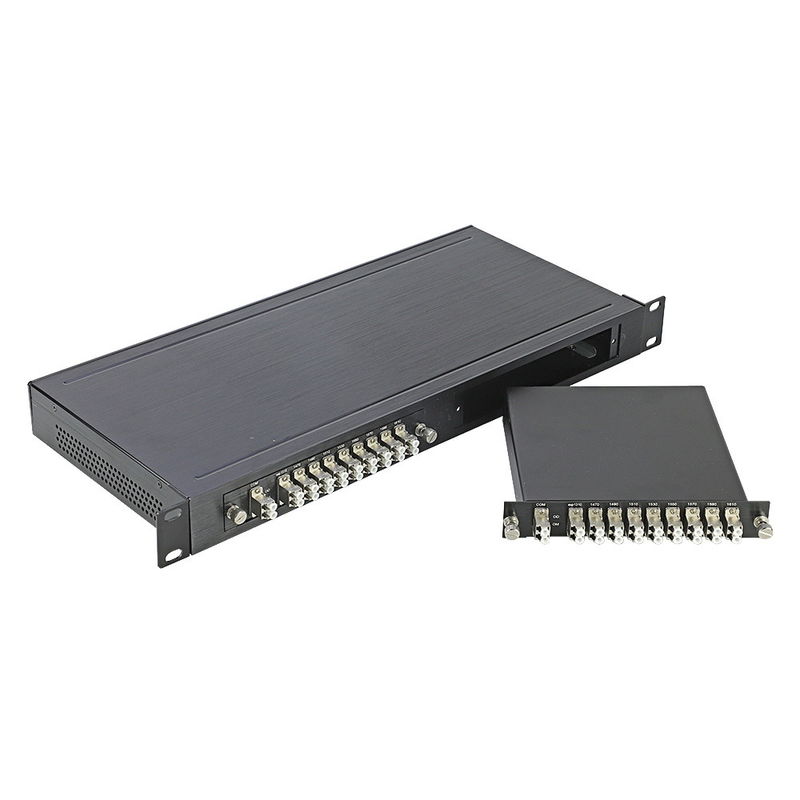

Fiber Optic CWDM/DWDM - Product Picture:

Fiber Optic CWDM/DWDM - TAKFLY Company Overview:

Fiber Optic CWDM/DWDM - TAKFLY Certificates:

Fiber Optic CWDM/DWDM - TAKFLY Worldwide Exhibitions:

Why choose TAKFLY--Advantages as follows:
1. Fiber Optic Professional Manufacturer:
- With more than 20 years manufacturing experience in Fiber optic products;
- More than 300 assembly workers with 3 years experienced;
- More than 10 R&D Engineers;
- 16 Sets Germany imported Injection Machine and 16 Production Lines;
- More than 30 sets of Testing Machines: OTDR,3D Tester,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, ect.
- OEM Brand is acceptable.
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia ,Global Soure Electronic Exhibition,etc.
2. Quality Control:
- Spot check the raw material incoming inspection before production;
- Fully check after every individual process finished;
- Fully check production half done;
- Fully check the finished products before packing;
- Spot check before shipping;
3. Delivery:
- Samples: 1-3 working days.
- Mass Production Order: 3-7 working days (or Upon the exact Qty of the order ).
- Packaging: Plastic Bag, Carton and Pallet are available according to your request.
4. Shipping:
- DHL,UPS,FEDEX,TNT,EMS, usually is 3-5 working days. Would keep tracking shipping status and reporting to clients;
- By Sea or By Air, could use your own pointed forwarder or our cooperated one.
5. Payment Term: T/T, Paypal, Western Union and L/C are available.
6. Price: If your QTY is big, the price could be negotiated.
7. Customer service: Our sales respond quickly and efficiently. You could reach us by Email, Phone, WhatsApp, Wechat, Skype etc. We are on-line all the day and could reply you in time.
If you're interested in our products or have any question, Why not send inquiry at once ?
Welcome & Just Do It Now !
-
