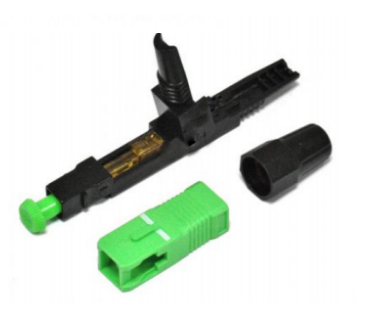

FTTH Field-Assembled Mechanical Fiber Optic Connector TK-FC-SCA-B001 For Telecommunication System
제품 상세 정보:
| 원래 장소: | 중국, 심천 |
| 브랜드 이름: | DF/OEM/Nuetral |
| 인증: | CE/ROHS/REACH/ISO9001/ISO14001 |
| 모델 번호: | TK-FC-SCA-B001 |
결제 및 배송 조건:
| 최소 주문 수량: | 협상 가능 |
|---|---|
| 가격: | negotiable denpend on QTY |
| 포장 세부 사항: | 물집 상자 + 판지 |
| 배달 시간: | 영업일 기준 5-9일은 수량에 따라 다릅니다. |
| 지불 조건: | Western Union, T/T, MoneyGram/PayPal |
| 공급 능력: | 1000pcs/일 |
|
상세 정보 |
|||
| 제품명: | 통신 시스템을 위한 FTTH 현장 조립 기계 광섬유 커넥터 TK-FC-SCA-B001 | 적용 가능: | 드롭 케이블.실내 케이블 |
|---|---|---|---|
| 파이버 모드: | 단일 모드 또는 다중 모드 | 섬유 종류: | G.652D, G.657A1 |
| 섬유 케이블: | 3.0*2.0mm 고무절연 광케이블 ∅3.0/∅2.0 /∅0.9 절연 광케이블 | 삽입 손실: | ≤0.35dB |
| 반사 손실: | UPC≥45dB, APC≥55dB | 인장강도: | ≥40N |
| 작동 온도: | -40°C~+85°C | 섬유 브랜드: | 코닝, YOFC, OFS, 드라카 |
| 강조하다: | FTTH mechanical fiber optic connector,field-assembled fiber optic connector,fiber optic connector for telecommunication |
||
제품 설명
FTTH Field-Assembled Mechanical Fiber Optic Connector TK-FC-SCA-B001
TAKFLY Mechanical Field-Mountable Fiber Optic Connector (FMC) simplifies fiber connections without requiring fusion splicing equipment. This quick-assembly connector needs only standard fiber preparation tools: cable stripper and fiber cleaver.
Applications
- LAN environment desk connections
- Optical access network infrastructure
- Fiber to the Subscriber (FTTX) applications
- Patch panels and distribution frames
- Direct equipment termination
- FTTx network deployments
- Optical equipment room wiring reconstruction
- Data Room Transformation
Key Features
- Factory-installed fiber stub for immediate use
- No epoxy or polishing required
- Quick and easy field fiber termination
- Eliminates cable excess length and pigtail splice storage
- Cost-effective installation solution
- Low insertion loss and back reflection loss
- Extremely easy operation process
- Short operation time - approximately 15 seconds
Optical Characteristics
| Category | Specification |
|---|---|
| Applicable for | Drop cable, Indoor cable |
| Fiber mode | Single mode or Multi mode |
| Fiber type | G.652D, G.657A1 |
| Fiber cable | 3.0*2.0mm rubber-insulated optical cable ∅3.0/∅2.0 /∅0.9 insulated optical cable |
| Fiber diameter | 0.125mm |
| Force holds 2 x 3mm cable type | ≥ 40 N, loss ≤ 0.4 dB (sample cable length: 22 - 28 cm, test time: 2 minutes) |
| Fiber lock | Lock holds fiber reliability, bears hang force ≥ 3.8 N, attenuation changes ≤ 0.2 dB |
| Working wavelength | 1310 nm, 1490 nm, 1550 nm |
| Operation time | About 50 (no fiber cut) |
| Insertion Loss | ≤0.35 dB |
| Insertion Loss Typical value | 0.3 dB |
| Return Loss | UPC≥45 dB, APC≥55 dB |
| Fastening strength of naked fiber | ≥3 N |
| Tensile strength | ≥40 N |
| Reusable | ≥10 times |
| Operating Temperature | -40℃ to +85℃ |
| On-line tensile strength (20N) | ΔIL≤0.3 dB |
| Mechanical durability (500 times) | ΔIL≤0.3 dB |
| Drop-off test (4m height, 3 times) | ΔIL≤0.3 dB |
Environmental Performance
| Condition | IL Variation | RL Variation | Appearance |
|---|---|---|---|
| High TEMP (110℃, 200H) | ≤0.5 | ≤5 | No mechanical damage |
| Low TEMP (-40℃, 200H) | ≤0.5 | ≤5 | No mechanical damage |
| TEMP Cycling (-40～85℃, 100 cycles) | ≤0.5 | ≤5 | No mechanical damage |
| HAST (110℃, 90%RH, 200H) | ≤0.5 | ≤5 | No mechanical damage |
| Immersion (25℃, 200H) | ≤0.5 | ≤5 | No mechanical damage |
| Salt Mist (5% Nacl, 35℃, 200H) | ≤0.5 | ≤5 | No mechanical damage |
Mechanical Performance
| Condition | IL Variation | RL Variation | Appearance |
|---|---|---|---|
| Impact (4m height, 3 cycles) | ≤0.5 | ≤5 | No mechanical damage |
| Vibration (10-50Hz, 30min each axial) | ≤0.5 | ≤5 | No mechanical damage |
| Torsional (15N, 200 times) | ≤0.5 | ≤5 | No mechanical damage |
| Tensile (50N, 1 minute) | ≤0.5 | ≤5 | No mechanical damage |
Packaging Information
| Size (CM) | 14.6*7.6*1.6 |
|---|---|
| QTY (PCS/Box) | 10 |
| N.W (KG/PCS) | 0.0031 |
| N.W (KG/Box) | 0.0465 |
| G.W (KG/Box) | 0.031 |
Gift Packing
| Size (CM) | 15.8*14.5*9.5 |
|---|---|
| QTY (Blister Box/Gift Box) | 10 |
| N.W (KG/Box) | 0.55 |
| G.W (KG/Box) | 0.52 |
Outer Packing
| Size (CM) | 46*46*32.5 |
|---|---|
| QTY (Gift Box/Box) | 30 |
| QTY (Pcs/Box) | 3000 |
| N.W (KG/Box) | 15.5 |
| G.W (KG/Box) | 16.5 |
Product Image
Why Choose TAKFLY?
- 26+ years manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years experience
- 10+ R&D Engineers dedicated to innovation
- 16 Germany imported Injection Machines and 16 Production Lines
- 30+ testing machines: OTDR, 3D, VFL, IL&RL test instruments, tension strength testers, crush resistance testers, power meter testers, light checkers
- OEM branding accepted
- Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control
- Raw material incoming inspection before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Pre-shipping spot checks to ensure quality
Delivery Information
Samples: 1-3 working days
Mass Production Order: 3-7 working days
Packaging: Plastic Bag, Carton and Pallet available per request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please provide your email or contact information through our website for catalogue and pricing.
Q2: Can I negotiate the prices?
A2: Yes, we consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
A3: Shipping charges depend on shipment size and method. We provide quotes upon request.
Q4: Can I visit you?
A4: Yes, our factory is in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
A5: If quality issues arise, provide photos for our reference. Our QC department will investigate and provide solutions while implementing future quality improvements.
Q6: What is your terms of packing?
A6: Standard packing includes blister box and cartons. Customized packing available per customer requirements.
Q7: What is your terms of payment?
A7: T/T 30% deposit, 70% balance before delivery. We provide product and package photos before final payment.
Q8: What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU available.
Q9: How about your delivery time?
A9: Generally 5-7 working days after receiving advance payment. Specific timing depends on items and order quantity.
Q10: Can you produce according to the samples?
A10: Yes, we can produce based on your samples or technical drawings.
