16 Channel Video Digital Optical Converter: AHD/CVI/TVI to BNC to Fiber Optic Video Transmitter/Receiver
제품 상세 정보:
| 원래 장소: | 중국, 심천 |
| 브랜드 이름: | DF/OEM/Nuetral |
| 인증: | CE/ROHS/REACH/ISO9001/ISO14001 |
| 모델 번호: | 16채널 비디오 디지털 광 컨버터 |
결제 및 배송 조건:
| 최소 주문 수량: | 협상 가능 |
|---|---|
| 가격: | negotiable denpend on QTY |
| 포장 세부 사항: | 물집 상자 + 판지 |
| 배달 시간: | 영업일 기준 5-9일은 수량에 따라 다릅니다. |
| 지불 조건: | Western Union, T/T, MoneyGram/PayPal |
| 공급 능력: | 1000pcs/일 |
|
상세 정보 |
|||
| 제품명: | 16채널 비디오 디지털 광 변환기: AHD/CVI/TVI에서 BNC, 광섬유 비디오 송신기/수신기 | 비디오 채널: | 16 |
|---|---|---|---|
| 비디오 대역폭: | 0~6.5MHz | 샘플 속도: | 8비트/10비트 |
| 신호 대 노이즈비: | ≥ 65dB | 신호 시스템: | PAL/NTSC/SECAM |
| 데이터 인터페이스: | RS485 | 데이터 속도: | DC-256Kbps |
| 섬유 브랜드: | 코닝, YOFC, OFS, 드라카 | 전송 파장: | 1310nm/1550nm |
| 광학 인터페이스: | FC / PC | 광학 동적 범위: | 17dB |
| 작동 온도:: | -10 ℃ ~ +55 ℃ | ||
| 강조하다: | 16 channel AHD to fiber optic converter,CVI TVI BNC fiber optic transmitter,digital optical video receiver with warranty |
||
제품 설명
16 Channel Video Digital Optical Converter: AHD/CVI/TVI to BNC to Fiber Optic Video Transmitter/Receiver
This advanced digital optical converter series employs cutting-edge all-digital communication technology, capable of simultaneously transmitting 32 forward video channels and 1 reverse RS485/422 data channel over a single fiber optic cable. Utilizing non-compressed digital video encoding compatible with PAL, NTSC, and SECAM formats, it delivers broadcast-level image quality with exceptional clarity.
Featuring plug-and-play design for simplified installation without on-site commissioning, these converters operate reliably across diverse environments with prolonged stability. LED status indicators monitor power and operational parameters, while comprehensive lightning-proof design ensures equipment stability with no electromagnetic, radio frequency, or ground current interference.
The product combines high-quality digital transmission with long-distance capabilities and competitive pricing, making it an ideal solution for demanding fiber-optic video transmission applications.
Applications
- Security & Safe City building security monitoring
- Highway and railway transportation remote monitoring
- Urban public transport monitoring systems
- Security applications
- Operator unattended engine room monitoring
- Bank security monitoring
- Power system remote monitoring
- Industrial and mining production process monitoring
- Water flood control and reservoir site monitoring
- Airport security monitoring
- Radio and television image transmission
- School campus and examination room monitoring
- High-rise buildings and intelligent community security
- Customs barrier and warehouse video surveillance
- Petrochemical facility monitoring
- Prison video surveillance systems
- Government agency monitoring and alarm systems
- Security areas, command and control positions visualization
- Forest fire command systems
Key Features
- Fully-digital, non-compressed broadcast fiber optic transmission
- Ultra-optical dynamic range, no adjustment required during use
- Compatible with PAL, NTSC, SECAM and other video formats
- RS232/485/422 data communication
- Three-level lightning protection
- Industrial design with high reliability for harsh environments
- Automatic power adjustment, temperature compensation, and overload protection with auto-restoration
- Full Surface Mount Technology
- Use of standard 19" 1.2U Chassis for easy installation
Performance Specifications
Video Indicators
| Parameter | Specification |
|---|---|
| Video Channels | 16 |
| Video Bandwidth | 0 ~ 6.5 MHz |
| Sample Rate | 8bit/10bit |
| Signal to Noise Ratio | ≥ 65dB |
| Differential Gain | <1% (typical) |
| Differential Phase | <0.8° (typical) |
| Vertical Tilt | <0.5% (max) |
| Input/Output Impedance | 75Ω (unbalanced) |
| Input/Output Level | 1.0Vpp (typical) |
| Signal System | PAL/NTSC/SECAM |
Data Indicators
| Parameter | Specification |
|---|---|
| Data Interface | RS485/422 (optional) |
| Physical Interface | Five industrial terminal |
| Data Rate | DC-256Kbps |
| Bit Error Rate | <10E-12 |
Optical Indicators
| Parameter | Specification |
|---|---|
| Transmission Wavelength | 1310nm/1550nm |
| Optical Interface | FC/PC |
| Transmit Optical Power | -8dB |
| Receiver Sensitivity | -25dB |
| Optical Dynamic Range | 17dB |
| Maximum Optical Loss | 14dB |
| Transmission Distance | More than 20KM (single) |
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -10℃ ~ +55℃ |
| Humidity | 0 ~ 95% (no condensation) |
| Power Consumption | 2.5W @ DC5V |
| Dimensions | 483mm (length) x170mm (W) x55mm (H) |
| Weight | 6.0kg |

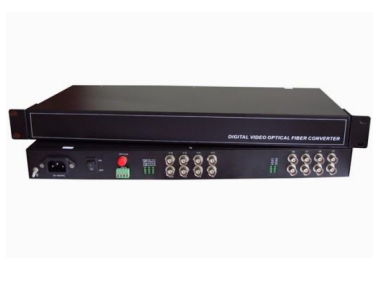

Product Images
Why Choose TAKFLY?
- More than 26+ years manufacturing experience in fiber optic products
- More than 450 assembly workers with 3 years experience
- More than 10 R&D Engineers
- 16 sets of Germany imported Injection Machines and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR, 3D, VFL, IL&RL test instruments; tension strength testers, crush resistance testers, power meter testers, light checkers, etc.
- OEM Brand acceptance
- Exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Spot check raw material incoming inspection before production
- Full check after every individual process completion
- Full check of production half-done items
- Full check of finished products before packing
- Spot check before shipping
Delivery Information
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet available according to request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
A3: Shipping charges depend on shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
A4: Certainly, our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
A5: If quality issues arise upon receipt, please provide photos for our reference. Our QC department will investigate and provide appropriate solutions, and we will implement improvements for future production.
Q6: What is your terms of packing?
A6: Generally, we pack goods in blister boxes and cartons, and can accommodate custom packaging requests.
Q7: What is your terms of payment?
A7: T/T 30% deposit, with 70% balance due before delivery. We provide photos of products and packaging before final payment.
Q8: What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
A9: Generally, delivery takes 5-7 working days after receiving advance payment. Specific timing depends on items ordered and order quantity.
Q10: Can you produce according to the samples?
A10: Yes, we can manufacture according to your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
