16 Hot-Swappable Slots and Centralized Manageable Rackmount Chassis Media Converters
제품 상세 정보:
| 원래 장소: | 중국, 심천 |
| 브랜드 이름: | DF/OEM/Nuetral |
| 인증: | CE/ROHS/REACH/ISO9001/ISO14001 |
| 모델 번호: | 16개의 핫스왑 가능 슬롯 및 중앙 집중식 관리 가능 랙마운트 섀시 미디어 컨버터 |
결제 및 배송 조건:
| 최소 주문 수량: | 협상 가능 |
|---|---|
| 가격: | negotiable denpend on QTY |
| 포장 세부 사항: | 물집 상자 + 판지 |
| 배달 시간: | 영업일 기준 5-9일은 수량에 따라 다릅니다. |
| 지불 조건: | Western Union, T/T, MoneyGram/PayPal |
| 공급 능력: | 2000 nos/주 |
|
상세 정보 |
|||
| 제품명: | 16개의 핫스왑 가능 슬롯 및 중앙 집중식 관리 가능 랙마운트 섀시 미디어 컨버터 | 표준을 충족하십시오: | IEEE802.3z, IEEE802.3u, IEEE802.3x 및 IEEE802.3ah |
|---|---|---|---|
| 데이터 속도: | 10Mbps, 100Mbps, 1000M 반이중/전이중 자동 감지 | 커넥터: | 세인트, 사우스 캐롤라이나, FC, LC |
| 작동 온도: | 0~50' Ｃ | 저장 임시 :: | -10 ~ +70°C |
| 습기: | 5%~ 90% | ||
| 강조하다: | rackmount fiber optic media converter,hot-swappable media converter chassis,centralized manageable media converter |
||
제품 설명
16-Slot Hot-Swappable Rackmount Chassis Media Converters
16-Slot Multifunctional Management System is an Ethernet and SDH transmission equipment offering exceptional price/performance ratio.
Supported Media Converter Types
- 10/100M Fiber Ethernet Media Converter
- 10/100/1000M Fiber Ethernet Media Converter
- 1 Fx + 2 Tx Fiber Ethernet Media Converter
- 125M~4.25G OEO Fiber Media Converter
- 10G OEO Fiber Media Converter
- 40G OEO Fiber Media Converter
- Variety of data rates, SM/MM, single fiber/double fiber, SFP, SFP+, XFP, and QSFP compatibility
Features simple setup with comprehensive management interface supporting SNMP, WEB, CONSOLE and TELNET protocols for integrated chassis management.
Management Functions
GUI-Based Network Management
- Easy operation with graded management modes (common user, super user, administrator)
- Centralized management with Top tree interface for managing multiple chassis simultaneously
- Grouping management for convenient manipulation among multiple converters
- Master/slave structure with management modules supporting up to 4 chassis cascading (128 fiber ports and RJ45 ports)
Protocol Support
- Console Management: Set IP and user authority, display/control local and remote media converters via WINDOWS
- WEB Management: Set IP and user authority, display/control local and remote media converters via browser (IE compatible)
- SNMP Protocol: MIB files for third-party SNMP integration, configurable TRAP addresses and trigger factors
- Special Management Software: Control center with background operation, database storage, user authority setup, and local/remote converter management
Technical Specifications
Ethernet Interface
| Standards Compliance | IEEE802.3z, IEEE802.3u, IEEE802.3x, IEEE802.3ah |
|---|---|
| Data Rate | 10Mbps, 100Mbps, 1000M half/full duplex auto-sensing |
| Connector | RJ-45, UTP CAT5 or CAT5E, transmission distance up to 100m |
Fiber Port Specifications
| Connector Types | ST, SC, FC, LC |
|---|---|
| Operating Wavelength | Multi-mode: 850nm, 1310nm Single-mode: 1310nm, 1550nm |
| Optical Fibers | Multi-mode: 50/125, 62.5/125, 100/140μm Single-mode: 8.3/125, 8.7/125, 9/125, 10/125μm |
Environmental Specifications
| Operating Temperature | 0~50℃ |
|---|---|
| Storage Temperature | -10~70℃ |
| Humidity | 5%~90% |
| Dimensions (Standalone) | 156mm(W) × 128mm(D) × 32mm(H) |
| Power Supply | 85VAC~265VAC or -40VDC~-57VDC |

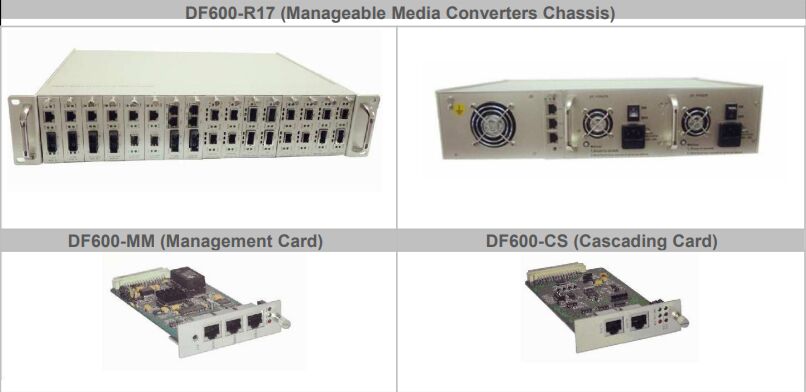

Technical Diagram
Why Choose TAKFLY
- 26+ years of fiber optic product manufacturing expertise
- 450+ experienced assembly workers with 3+ years of experience
- 10+ dedicated R&D Engineers driving continuous innovation
- 16 Germany-imported injection machines and advanced production lines
- 30+ testing equipment including OTDR, 3D, VFL, IL & RL test instruments
- Comprehensive quality testing with tension strength and crush resistance testers
- Power meter testers and light checkers for quality assurance
- OEM branding accepted
- Regular participation in major industry exhibitions worldwide
Quality Control Process
- Raw material spot checks during incoming inspection
- Full inspection after completion of every production process
- Comprehensive half-done production checks
- Thorough finished product inspection before packaging
- Final spot checks before shipping
Delivery Information
- Samples: 1-3 working days
- Mass Production Orders: 3-7 working days
- Packaging: Plastic bags, cartons, and pallets available per customer requirements
Frequently Asked Questions
How can I get your catalogue and price list?
Please provide your email or contact information through our website to receive our catalogue and price list.
Can I negotiate the prices?
Yes, we may consider discounts for multiple container loads of mixed goods.
How much will the shipping charges be?
Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
Can I visit you?
Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
What if there is a quality problem when we receive the goods?
If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, and we will implement improvements for future production.
What are your packing terms?
We typically pack goods in blister boxes and cartons, but can accommodate custom packaging requests.
What are your payment terms?
T/T 30% deposit, with 70% balance due before delivery. We provide photos of products and packaging before final payment.
What are your delivery terms?
EXW, FOB, CFR, CIF, DDU
What is your delivery time?
Generally 5-7 working days after receiving advance payment. Specific timing depends on product items and order quantity.
Can you produce according to samples?
Yes, we can manufacture products based on your samples or technical drawings.
