10/100M,10/100/1000M One TO One Manageable Media Converter (IEEE802.3ah OAM compliant) Factory Direct Sales Reliable Network Connection Factory Direct Sales Reliable Network Connection
제품 상세 정보:
| 원래 장소: | 중국, 심천 |
| 브랜드 이름: | DF/OEM/Nuetral |
| 인증: | CE/ROHS/REACH/ISO9001/ISO14001 |
| 모델 번호: | 10/100M,10/100/1000M 일대일 관리 가능한 미디어 변환기 |
결제 및 배송 조건:
| 최소 주문 수량: | 협상 가능 |
|---|---|
| 가격: | negotiable denpend on QTY |
| 포장 세부 사항: | 물집 상자 + 판지 |
| 배달 시간: | 영업일 기준 5-9일은 수량에 따라 다릅니다. |
| 지불 조건: | Western Union, T/T, MoneyGram/PayPal |
| 공급 능력: | 1000pcs/일 |
|
상세 정보 |
|||
| 제품명: | 10/100M,10/100/1000M 일대일 관리 가능한 미디어 변환기 | 데이터 속도: | 10Mbps, 100Mbps, 1000M 반이중/전이중 자동 감지 |
|---|---|---|---|
| 커넥터: | 세인트, SC, FC, SFP | 작동 온도: | 0 ~ 50℃ |
| 습기: | 5%~ 90% | 온도를 저장하세요: | -10~70℃ |
| 회의 기준: | IEEE802.3,IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x | 보증: | 1-5년 |
| 섬유 브랜드: | 코닝, YOFC, OFS, 드라카 | ||
| 강조하다: | 10/100M media converter IEEE802.3ah compliant,1000M fiber optic media converter OAM,manageable media converter reliable network connection |
||
제품 설명

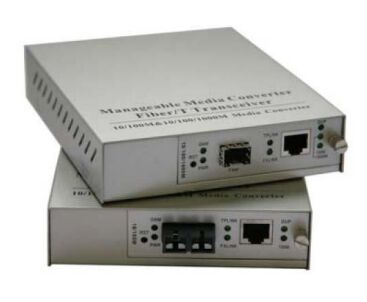

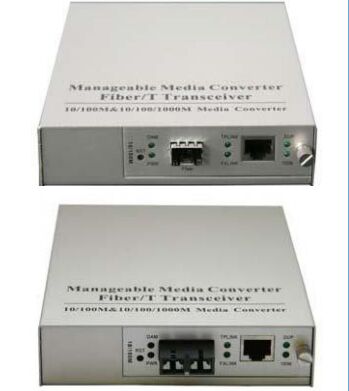

10/100M, 10/100/1000M One TO One Manageable Media Converter
IEEE802.3ah OAM compliant media converter with factory direct sales for reliable network connections offering superior performance and comprehensive management capabilities.
Product Overview
This IEEE802.3ah OAM manageable Ethernet fiber media converter enables real-time supervision of remote units and function configuration. The system accelerates operator response speeds, reduces daily maintenance and network expenditures, and enhances service quality.
Hardware Features
- Built-in IP-based Web Interface
- Support for remote and local management
- IEEE 802.3X Frame Flow Control for full-duplex mode
- Store and Forward mechanism
- Manual IP address setting/DHCP client for IP address assignment
- SNMP v1 / v2c monitor / private Enterprise MIB
- Event trap and SNMP trap support
- Speed duplex mode configuration / Flow Control setting / bandwidth Control on TP / Fiber port
- Support Port Status / Ethernet Statistics on both TP and Fiber interface
- Support Maximum frame size to 9K bytes
- Loop detection / Broadcast / Multicast / Unicast storm control
- Management VLAN / 16 IEEE 802.1Q VLAN groups / Q-in-Q VLAN
- 802.1p Tag Priority / IP address priority / IP DSCP option
- Quality of Service Mode and Strict Priority / Weighted Round Robin (WRR) QoS policies
- TS-1000 OAM / IEEE 802.3ah OAM / Loop Back Test
- 16 TCP / UDP Filter groups
- Password setting, IP setting and device description setting through Planet Smart discovery utility
- Firmware upgrade via remote Web interface
- External DC 5V 2A power supply
- LED indicators for easy network diagnosing
- Reset Button at the front panel for factory default reset
- Choice of fiber-connector from SC, LC, WDM, Multi-mode/Single-mode fiber / 1000Base-SX/LX mini GBIC module
Technical Specifications
| Interface Type | Specifications |
|---|---|
| Ethernet Interface | IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x Data rates: 10Mbps, 100Mbps, 1000M half/full duplex auto-sensing RJ-45 connector UTP CAT5 or CAT5E connecting with RJ-45, transmission distance to 100m |
| Fiber Port | Connectors: ST, SC, FC, SFP Wavelength: 850nm, 1310nm (Multi-mode); 1310nm, 1550nm (Single-mode) Fiber types: Multi-mode: 50/125, 62.5/125, 100/140um; Single-mode: 8.3/125, 8.7/125, 9/125, 10/125um |
| Operating Environment | Operating Temperature: 0~50°C Storage Temperature: -10~70°C Humidity: 5%~90% (non-condensing) |
Why Choose TAKFLY
- 26+ years of fiber optic manufacturing experience
- 450+ assembly workers with 3+ years experience
- 10+ R&D Engineers dedicated to innovation
- 16 Germany-imported Injection Machines and production lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- Comprehensive testing equipment for quality assurance
- OEM branding accepted
- Global exhibition participation
Quality Control Process
- Raw material spot checking before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Pre-shipping spot checks
Delivery Information
- Samples: 1-3 working days
- Mass Production Orders: 3-7 working days
- Packaging: Plastic bags, cartons, and pallets available per request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, along with implementing quality improvements for future production.
Q6: What is your terms of packing?
We typically pack goods in blister boxes and cartons, but can accommodate custom packaging requests from customers.
Q7: What is your terms of payment?
T/T 30% as deposit, and 70% balance before delivery. We provide photos of products and packaging before final payment.
Q8: What is your terms of delivery?
EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
Generally 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
Q10: Can you produce according to the samples?
Yes, we can manufacture products based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
