2.5G Ethernet Switch with 10G Uplink and Fanless Metal Housing for High-Speed Network Expansion
제품 상세 정보:
| 브랜드 이름: | Takfly/DF |
| 인증: | CE, ROHS, ISO14001, ISO9001, CPR,ANATEL,REACH |
| 모델 번호: | TK-MPO-PC |
결제 및 배송 조건:
| 최소 주문 수량: | 1 |
|---|---|
| 포장 세부 사항: | 국제적 수출 포장 |
| 배달 시간: | 1-3 영업일(수량에 따라 다름) |
| 지불 조건: | TT 100% |
| 공급 능력: | 3000 PC/일 |
|
상세 정보 |
|||
| 외장재: | PVC | 작동 파장: | 1310/1550NM |
|---|---|---|---|
| 삽입 손실: | 0.3db | 상호 교환 성: | 0.2dB 이하 |
| 극성: | A, B 또는 C를 입력하세요. | 섬유질량: | 24 |
| 방법: | SM MM | 페룰재료: | 세라믹 |
제품 설명

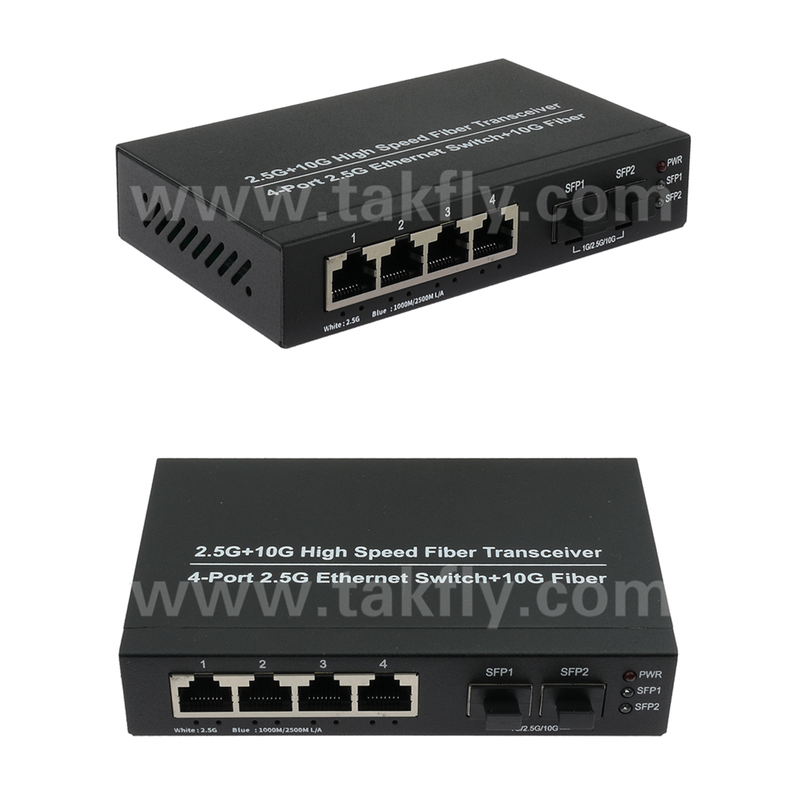

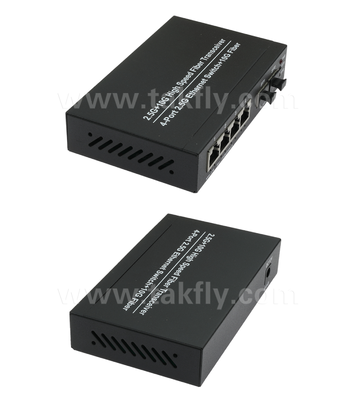

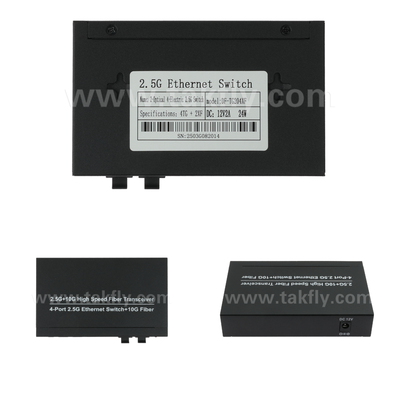

2.5G 2 Port Fiber 4 Port Copper Ethernet Switch
Product Overview
This high-performance 2.5G Ethernet switch features a 10G uplink for ultra-fast connectivity without requiring replacement of existing fiber cables. Powered by an advanced chipset, it delivers 2.5 times the speed of standard Gigabit, making it ideal for demanding network applications.
All ports support wire-speed forwarding for optimal performance, while the plug-and-play design requires no configuration. The desktop-style fanless metal housing ensures quiet and reliable operation, with RJ45 ports featuring built-in signal LEDs for easy status monitoring.
Designed to extend Ethernet data transmission over fiber links, the switch enables seamless network expansion and is compatible with a wide range of 2.5G network devices including computers, routers, NAS servers, printers, IP cameras, and wireless access points.
Ideal for medium to large enterprise networks, security surveillance systems, hotel deployments, and campus environments.
Technical Features
- 2 SFP fiber ports supporting 1G/2.5G/10G speeds and 4 copper RJ45 ports supporting 1G/2.5G Ethernet
- Compliant with IEEE802.3 (Ethernet), IEEE802.3u (Fast Ethernet), IEEE802.3ab (Gigabit Ethernet), IEEE802.3bz (2.5G Ethernet), and IEEE802.3ae (10G Ethernet) standards
- Auto MDI/MDIX support for easy installation and system setup
- High-quality, high-speed network chips with carefully selected chipset design protecting against overload, short circuits, and damage
- RJ45 ports auto-negotiate 100M/1000M/2.5G speeds for true plug-and-play operation
- 10G uplink SFP fiber ports support auto-negotiation for 1G/2.5G/10G speeds
- Store-and-forward switching architecture with high-capacity internal buffers for non-blocking 2.5G wire-speed forwarding
- Professional surge protection for power and network ports
- Fanless passive cooling ensures stable operation from -10°C to +70°C
- Supports both full-duplex and half-duplex communication with auto-negotiation
- All-metal housing for enhanced durability, strength, and superior heat dissipation
Technical Specifications
| Product Type | 2.5G Ethernet Switch |
| MTBF | 100,000 hours |
| Input Voltage | External power supply DC 12V |
| Operating / Storage Temperature | -10℃ ~ +70℃ |
| Relative Humidity | 5% ~ 95% (non-condensing) |
| Port Description | 2 x SFP fiber ports (1G/2.5G/10G) + 4 x RJ45 copper ports (1G/2.5G) |
| Total Power Consumption | < 6.5W (full load) |
| Fiber Port Type | SFP |
| LED Indicators | Power, Fiber Port Status, Copper Port Status, System Status |
| Switching Mode | Store-and-Forward |
| Switching Capacity | 60Gbps |
| Packet Forwarding Rate | 44.64Mpps |
| MAC Address Table | 8K |
| Network Standards | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3bz, IEEE802.3ae |
| Flow Control | Supported |
| Network Topology | Supports ring, star, bus, tree, and other topologies |
| Ingress Protection | IP30 |
| Housing | High-quality metal with superior heat dissipation |
| Model Number | ZSTX-GS06-2.5G2F4-SFP |
| Power Supply | External power supply DC 12V |
| Weight | 0.4kg / unit |
| Product Dimensions | 128.6 × 78.5 × 26 mm (excluding protrusions) |
| Package Dimensions | 200 × 162 × 47 mm |
| Carton Quantity | 48 units / carton |
Frequently Asked Questions
How do I place an order?
Our standard process: 1. Send us your inquiry including product name, specifications, quantity, and destination port; 2. We provide a formal quotation with lead time; 3. Upon confirmation, we issue a Proforma Invoice (PI) with bank details; 4. Production commences after receipt of payment; 5. We confirm consignee details before shipping; 6. Tracking number provided upon dispatch.
What are your payment terms?
We accept T/T, Western Union, PayPal, and MoneyGram. For large orders, we can arrange 50% deposit with balance due before delivery.
What is your MOQ?
Minimum order quantity starts from 1 piece. Pricing becomes significantly more competitive with larger volumes.
What are your lead times?
Lead times depend on product and order quantity. For standard items like fiber optic patch cords (up to 5,000 pcs), production typically takes 2-3 business days. We maintain stock for regular products and accommodate urgent requests.
Can I request a sample?
Yes. Samples for products valued under $10 USD are complimentary; customer is responsible for shipping costs, which must be settled prior to dispatch.
Can you quote FOB prices?
Certainly. We provide FOB quotes and ship via air (DHL, TNT, UPS, FedEx) or sea for bulk orders. We provide comprehensive quotations with freight and lead time upon receiving detailed requirements.
Can you offer OEM/ODM services?
Yes, we accept OEM/ODM for all products and can sign a Confidentiality Agreement to protect your designs.
How is your quality assured?
We adhere to IEC and European standards and hold certifications including CE, ISO, RoHS, CPR, and ANATEL. All products undergo 100% testing prior to delivery.
What is your warranty policy?
Warranty terms vary by product. Patch cords carry a standard 1-year warranty against non-artificial defects from delivery date. We also offer free repair for accidental damage; customers are responsible for associated shipping costs.
What is your packaging?
We use standard export-grade packaging. Custom logo printing is available upon request; please inform us prior to quotation.
Are you a manufacturer?
Yes, we are a manufacturer and total solutions provider for FTTH and data center applications, founded in 2000 and based in Shenzhen, China.
