상세 정보 |
|||
| 포트 매개변수: | 1*SFP, 1*RJ45 | 데이터 속도: | 10g |
|---|---|---|---|
| 전원공급장치: | 외부 DC 12V 2A | 작동 온도: | 0기음 ~ +50기음 |
| 강조하다: | 10g SFP+ fiber optic media converter,RJ45 port media converter,fiber optic converter with warranty |
||
제품 설명

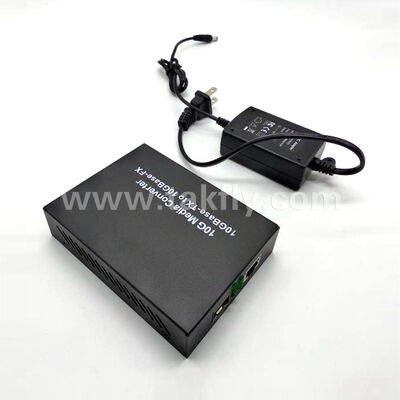

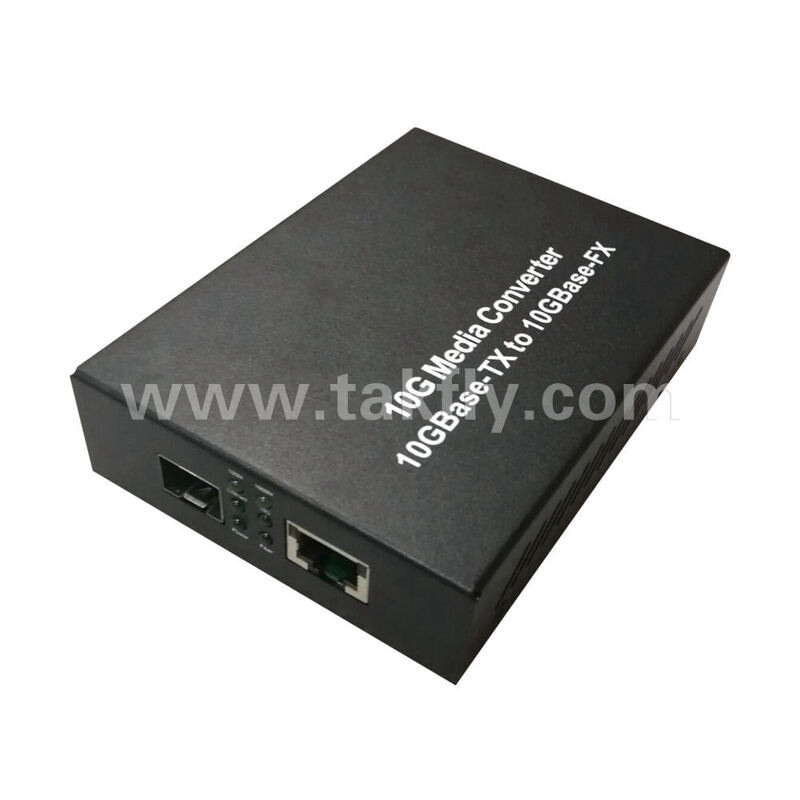

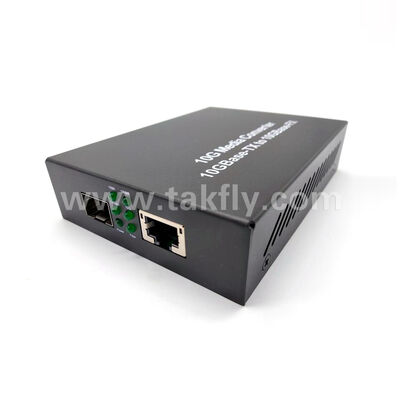

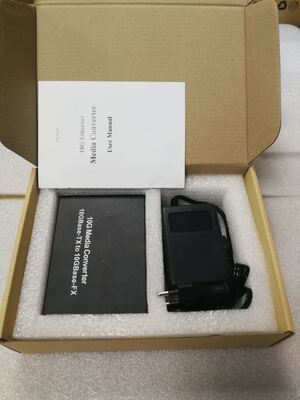

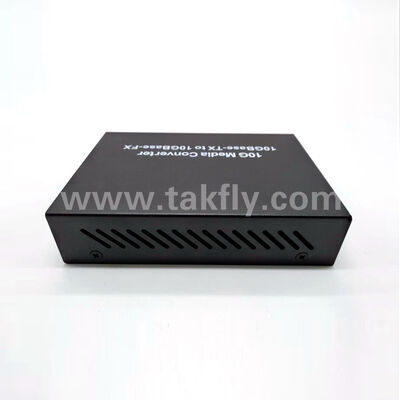

10g SFP+ & RJ45 Port Fiber Optic Media Converter
Product Overview
10G Unmanaged Media Converter with SFP+ & RJ45 port, designed for large workgroups requiring high-speed Ethernet network expansion. This converter efficiently transforms 1/10G-BASE-T to 10G-BASE-FX, providing high-performance, cost-effective solutions for LAN campus networks.
This fiber media converter extends network transmission distances from 100 meters over copper wires up to 120 kilometers via fiber optics, while offering isolation protection, enhanced data security, superior stability, and easy maintenance.
Key Features
- High-performance Marvel chips enable non-blocking transmission and switching
- Enhanced security and stability in data transmission
- Supports electrical outlet 10Gbase-T to 10Gbase-SR/LR/ER/ZR
- Optical port with 3R function (balanced amplification, clock extraction, integral regeneration)
- Transparent data transmission with minimal delay
- Supports 850, 1310, 1550nm and CWDM/DWDM wavelengths per ITU-T standards
- Supports long jumbo frames
- DMI function support for optical modules
- Loopback functionality for testing
- Compatible with SFP+/XFP optical modules
- 5-20V wide voltage power supply
- Rack centralized power supply management
- External power supply support
Technical Specifications
| Access Method | 1×10G RJ45, 1×10Gbase-FX (SFP port) |
|---|---|
| Operation Mode | Full/Half duplex |
| Standard Protocol | IEEE802.3 1000 Base-T, IEEE802.3u 10/100/1000Base-SX/TX, IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree, IEEE 802.3z, IEEE 802.3ab |
| Power Supply | External DC 12V 2A (standard), Optional 5V 4A |
| Operating Temperature | 0°C to 50°C |
| Humidity | 5% to 90% |
| Storage Temperature | -40°C to 70°C |
Product Images
