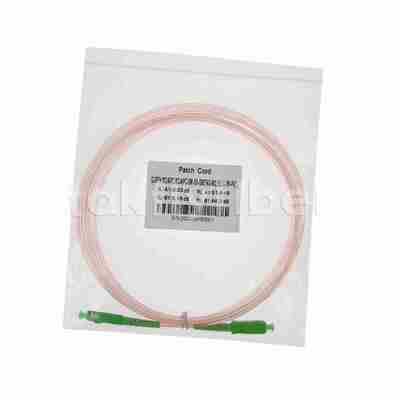

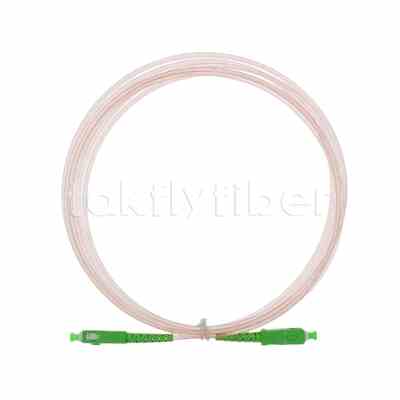

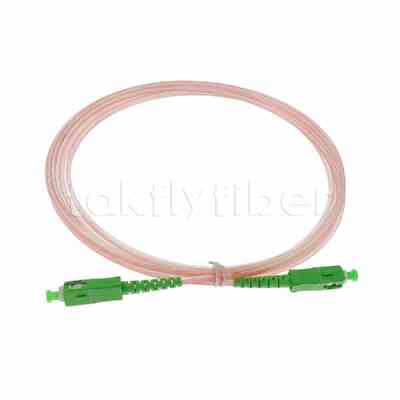

SCAPC to SCAPC Newly Developed Invisible Self-Adhesive Fiber Optic Patchcord for FTTH FTTR Application
제품 상세 정보:
| 원래 장소: | 중국 |
| 브랜드 이름: | DF/OEM/Nuetral |
| 인증: | CE/ROHS/REACH/ISO9001/ISO14001 |
| 모델 번호: | TK-SI-PC--SA-SA-2.0x3.0-PVC-XXX |
결제 및 배송 조건:
| 최소 주문 수량: | 100개 |
|---|---|
| 가격: | US$0.01~3.99/PC |
| 포장 세부 사항: | 수출 표준 포장 |
| 배달 시간: | 영업일 기준 5-9일은 수량에 따라 다릅니다. |
| 지불 조건: | Western Union, T/T, MoneyGram/PayPal |
| 공급 능력: | 5000pcs/day |
|
상세 정보 |
|||
| 제품명: | SCAPC에서 SCAPC로 새로 개발된 FTTH FTTR 애플리케이션용 보이지 않는 자체 접착식 광섬유 패치코드 | 간섭 손실: | 0.3dB 이하 |
|---|---|---|---|
| 반사 손실: | APC SM ≥ 60dB | 섬유 종류: | OS2, G652D, G657A1, G657A2, G657B3 |
| 지름: | 2.2x3.0±0.2mm | 커넥터 유형: | APC |
| 재킷 소재: | PVC | 색상: | 투명한 |
| 파장: | 1310nm, 1550nm | 길이: | 3m 또는 주문 제작됩니다 |
| 작동 온도: | -20℃~70℃ | 섬유 직경: | 9/125 |
| 등급: | 통신 등급 | 자격증: | CE/ROHS/도달 |
| 생산능력: | 10000pcs/일 | ||
| 강조하다: | Invisible Self-Adhesive FTTH Drop Cable,G657A Fiber SCAPC Patchcord,2.2x3.0mm Diameter Fiber Optic Patchcord |
||
제품 설명
SCAPC to SCAPC Invisible Self-Adhesive Fiber Optic Patchcord for FTTH/FTTR Applications
Takfly's Flat Self-adhesive FTTH Drop Cable provides direct connectivity to homes without bandwidth, wavelength, or transmission technology restrictions. The optical fiber unit is centrally positioned with two parallel strength members on either side, completed with a transparent PVC sheath and a self-adhesive double-sided tape layer.
Product Specifications
Fiber Optic Attributes
- Mode field diameter: 8.6um±0.4um at 1310nm
- Cladding diameter: 125.0um±0.7um
- Coating diameter: 245um±10um
- Coating-cladding concentricity error: ≤12.5um
- Cut-off wavelength: ≤1260nm
- Attenuation coefficient: 1310≤0.4dB 1550≤0.3dB
FTTH Cable Information
- Number of fiber: 1 core
- Fiber type: G657A1/SM G657A2/G657B3
- Strength member material: FRP
- Diameter: 0.5mm*2
Outer Sheath
- Material: LSZH Black
- Cable size: 2.0*3.0mm
Connector Test Specifications
| Item | Specifications |
|---|---|
| Type | SC/APC(1310) |
| Insertion Loss | ≤0.3 dB + 0.36 dB/km*L(km) @ 1310nm ≤0.3 dB + 0.25 dB/km*L(km) @ 1550nm |
| Return Loss | ≥60dB |
| Endface | IEC 61300-3-35 |
| Durability (1000 Mating) | 0.2dB Max. increase |
| Installation Temperature | -10℃～+60℃ |
| Operating Temperature | -25℃~70℃ |
| Storage Temperature | -40℃~75℃ |
| Cable pull | 70N |
Fiber Parameters
| Optical fiber type | Test wavelength | Attenuation | Full injection bandwidth (MHZ.km) | Effective modal bandwidth (MHZ.km) | Minimum bending radius (mm) |
|---|---|---|---|---|---|
| G652D | 1310/1550nm | 0.36/0.22 | ... | ... | 16 |
| G657A1 | 1310/1550nm | 0.36/0.22 | ... | ... | 10 |
| G657A2 | 1310/1550nm | 0.36/0.22 | ... | ... | 7.5 |
| G657B3 | 1310/1550nm | 0.36/0.22 | ... | ... | 5 |
Cable Structure
| Item | Contents | Value |
|---|---|---|
| Optical Fiber | Fiber Count | 1 or 2 |
| Fiber Type | SM G657A2 or SM G657AB3 | |
| Fiber Diameter | 0.25mm | |
| Strength Member | Material | FRP |
| Diameter | 2 x 0.5mm | |
| Outer Sheath Cable | Material | PVC |
| Thickness | 0.4mm | |
| Diameter | 2.0x3.0mm | |
| Double-sided Tape | Glue | Acrylic Acid |
| Release paper | PP | |
| Outer Diameter | Outer Sheath with Double-sided tape | 2.2x3.0±0.2mm |
Mechanical and Environmental Characteristics
| Cable type | Diameter (mm) | Weight (Kg/km) | Max. Tension (N) | Crush Resistance (N/100mm) | Min. Bending Radius (mm) | Storage temperature (℃) |
|---|---|---|---|---|---|---|
| GJXFH-1~2 | 2.2x3.0±0.2mm | 9.5 | 40/80 | 500/1000 | 20D/10D | -20~+70 |
Applications
- FTTR (Fiber to the Room): Enables seamless fiber connectivity in residential or commercial indoor environments
- Indoor Optical Networks: Ideal for high-speed data transmission with minimal visibility impact
- Telecom Systems: Reliable connectivity for LAN, WAN, and metro networks
- Smart Homes: Supports modern home networks requiring aesthetically pleasing and high-performance cabling
- Enterprise Networking: Suitable for discreet indoor installations in offices and business centers
Product Features
- Invisible Fiber Design: 2.2x3.0±0.2mm cable with transparent finish blends into surroundings for discreet indoor use
- High-Performance SC/SCA Connectors: Ensures low insertion loss and high return loss for stable signal transmission
- Compact and Flexible: Easy to route around corners, walls, and ceilings without affecting performance
- Low Bend Sensitivity: Built with G.657A2/B3 fiber for excellent bend performance and durability
With more than 10 years of sales experience and shipping experience in optical fiber products, we have helped more than 127 customers to expand their business and increase sales. We provide professional guidance to help you save time and money while increasing your sales.
