CPR Rated SC Pushable FTTH Drop Cable Fiber Optic Patchcord with 3.0mm TPU Jacket and G657A2 Fiber
제품 상세 정보:
| 원래 장소: | 중국 |
| 브랜드 이름: | DF/OEM/Nuetral |
| 인증: | CE/ROHS/REACH/ISO9001/ISO14001 |
| 모델 번호: | TK-PC-SAP-SA-A2-3.0-TPU |
결제 및 배송 조건:
| 최소 주문 수량: | 100개 |
|---|---|
| 가격: | US$0.01~9.99/PC |
| 포장 세부 사항: | 수출 표준 포장 |
| 배달 시간: | 영업일 기준 5-9일은 수량에 따라 다릅니다. |
| 지불 조건: | Western Union, T/T, MoneyGram/PayPal |
| 공급 능력: | 10000pcs/일 |
|
상세 정보 |
|||
| 제품명: | CPR 정격 SC 푸시 가능 FTTH 드롭 케이블 광섬유 접속 코드 SM G657A2 3.0mm TPU 재킷 | 간섭 손실: | 0.3dB 이하 |
|---|---|---|---|
| 반사 손실: | APC SM ≥ 60dB | 섬유 종류: | SM G657A2, G657B3 |
| 지름: | 3.0mm | 커넥터 유형: | APC |
| 재킷 소재: | LSZH / 열 가소성 폴리우레탄 수지 | 색상: | 검은색 |
| 파장: | 1310nm, 1550nm | 길이: | 5m 또는 사용자 정의 |
| 작동 온도: | -20℃~70℃ | 섬유 직경: | 9/125 |
| 등급: | 통신 등급 | 자격증: | CE/ROHS/도달 |
| 생산능력: | 10000pcs/일 | ||
| 강조하다: | CPR Rated Fiber Optic Patchcord,3.0mm TPU Jacket FTTH Drop Cable,G657A2 Fiber SC Pushable Cable |
||
제품 설명
CPR Rated SC Pushable FTTH Drop Cable Fiber Optic Patchcord
SC Pushable FTTH Drop Cable Fiber Optic Patchcords are pre-terminated, 3mm slim, armored, or ruggedized cables designed for tool-free, fast installation in tight spaces (conduits/pipes). They feature a special "bullet" style connector for easy pulling and pushing. These 1-core or multi-core Single-Mode (OS2) simplex cables are ideal for FTTx last-drop connections, providing low insertion loss and high durability for direct-to-home fiber deployment.
Key Features and Benefits
- Easy Installation: Designed for tool-free, pushable, and pullable installation through conduits or small ducts, minimizing need for splicing
- Design: Features a 3mm slim, flexible, ruggedized, and often black LSZH jacket for harsh, direct-buried, or underground environments
- Pre-terminated Connector: Equipped with SC/APC or SC/UPC connectors, featuring a bullet-style connector on one end to prevent damage during installation
- Performance: High-speed data transmission with low insertion loss (0.3dB) and high return loss (60dB for APC)
Technical Specifications
| Parameter | Specification |
|---|---|
| End face type | PC, UPC and APC |
| Fiber type | SM G657A2 |
| Cable Diameter | 3.0mm |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB, APC SM≥ 60 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | >200N |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | LSZH or TPU Black Jacket |
| Bending radius (Static/Dynamic) | 10D/20D |
| Length | Customized |
Fiber Parameters
| Item | Unit | Specification (SM G657A2/G657B3) |
|---|---|---|
| Mode Field Diameter @1310nm | μm | 8.2~9.0 |
| Mode Field Diameter @1550nm | μm | 9.1~10.1 |
| Cladding Diameter | μm | 125±0.7 |
| Cladding Non-Circularity | % | ≤0.7 |
| Core-Cladding Concentricity Error | μm | ≤0.5 |
| Coating Diameter | μm | 245±5 |
| Coating Non-Circularity | % | ≤6.0 |
| Cladding-Coating Concentricity Error | μm | ≤12 |
| Cable Cutoff Wavelength | nm | λcc ≤1260 |
| Attenuation @1310nm | dB/KM | ≤0.36 |
| Attenuation @1550nm | dB/KM | ≤0.25 |
| Macro-Bending Loss @1550nm | dB | ≤0.08 |
| Macro-Bending Loss @1265nm | dB | ≤0.25 |
Cable Construction
| Component | Description |
|---|---|
| Optical Fiber | Fiber count: 1, Color: Red |
| Tight Buffer Fiber | Material: LSZH, Diameter: 0.85±0.05 mm, Color: Red, One-time stripping length: 5-8 mm |
| Strength Member | Material: Aramid yarn |
| Outer Jacket | Material: TPU, Diameter: 3.0±0.2 mm, Color: Black |
Mechanical and Environmental Characteristics
| Test Item | Description |
|---|---|
| Tensile performance | IEC 60794-1-2-E1: short-term 800N, long-term 300N |
| Crush Resistance | IEC 60794-1-E3: short-term 500N, long-term 100N |
| Cable Impact | IEC 60794-1-E4: No damage to outer jacket and inner elements |
| Repeat Bending | IEC 60794-1-E6 |
| Torsion | IEC 60794-1-E7 |
| Cable Bend | IEC 60794-1-E11 |
| Temperature Range | IEC 60794-1-2-F1: -20℃-+60℃ |
| Bending Radius | Static: 10mm, Dynamic: 20mm |
Applications
- CATV
- Telecommunication networks
- Active device termination
- Local area networks (LANS)
- Data processing networks
- Test equipment
- Wide area networks (WANS)
Performance Features
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Standard: Telcordia GR-326-CORE

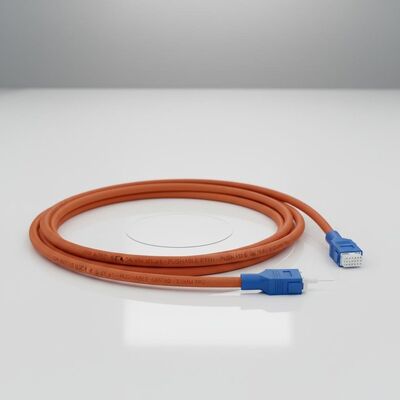

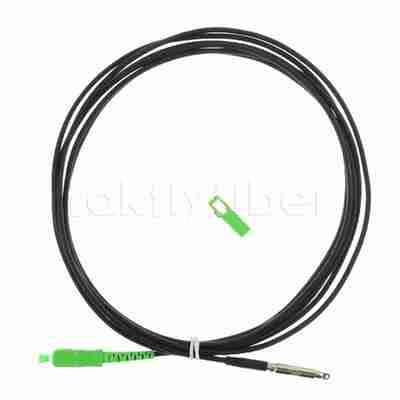

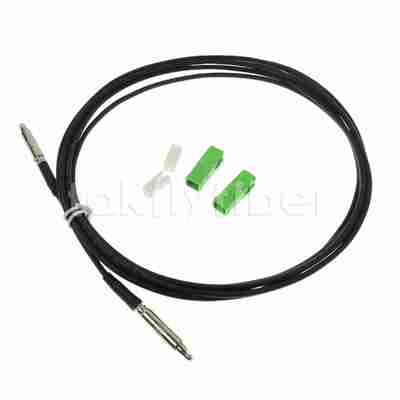

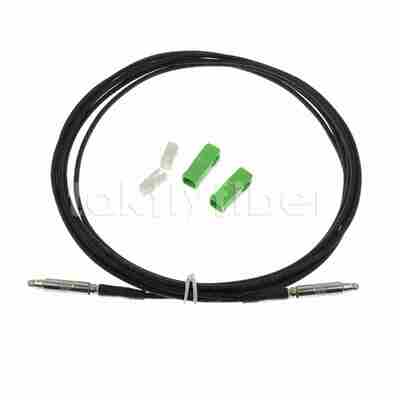

Product Images
Why Choose Takfly?
- Established in 2000, with more than 400 workers, Takfly has 21 years manufacturing experience in fiber optic products
- Certified with ISO9001, ISO14001, CE, ROHS, REACH, FCC, CPR and Anatel
- Main customers: Telefonica, Orange, Movistar, Vodafone, Singtel, Starhub, Corning, Amphenol, SENKO
- Availability of R & D with more than 26 engineers, OEM, ODM customer designs welcomed
- High quality, attractive price and fast delivery (2-7 days)
With more than 10 years of sales experience and shipping experience in optical fiber products, we have helped more than 127 customers to expand their business and increase sales, and believe we can provide you with professional guidance, help you save time and money, increase your sales.
