상세 정보 |
|||
| 상품 이름: | SC / UPC 금속 수컷들 - 여성 섬유 감쇠기 | 접속구의 형태: | SC 연결관 |
|---|---|---|---|
| 형태: | SM (UPC) | 감쇠기 타입: | 조정 유형 |
| 게델: | 남자이 - 여성 | 삽입 손실: | SM≤0.2dB |
| 묽게함: | 1-30dB | 지속 기간: | <0> |
| 인장 강도: | >100N ; <0.1 dB | 작동 온도: | -40 ℃ ~ + 85 ℃ |
| 저장 온도: | -40 ℃ ~ + 85 ℃ | 복귀 손실: | UPC SM≥55dB; UPC SM≥55dB; PC MM ≥ 35 dB PC MM ≥ 35dB |
| 하이 라이트: | OEM 광섬유 감쇠기,타크프리 SC UPC 감쇠기,타크프리 광섬유 감쇠기 |
||
제품 설명
Metal SC/UPC Attenuator Singlemode Male to Female Fiber Optic Attenuator
Fiber Optic Attenuator Product Name:
1 to 30 dB SC/UPC Metal Male - Female Fiber Attenuator
Fiber Optic Attenuator Description:
Fiber Optic Attenuator is a component installed in a fiber optic transmission system that reduces the power in the optical signal.
It is often used to limit the optical power received by the photodetector to within the limits of the optical receiver.connector types can mount for FC,SC,LC,ST,FC/SC,SC/ST,etc. adapters. And Attenuation value available 1-10db 15, 20, 30dB etc.
Takfly attenuator complies with industry green initiative such as ROHS, CE, REACH.
Fiber Optic Attenuator Features:
- Precision ceramic ferrule
- FC, SC, LC, ST, FC/SC, SC/ST optional
- Plastic or metal housing material
- Wide attenuation range
Fiber Optic Attenuator Application:
- Fiber optical telecommunication system
- Video & CATV
- Data Networks
- DWDM
Fiber Optic Attenuator Parameter:
| Parameter | Unit | Conditions | Index |
| Attenuation values | dB | UPC&APC | 0-30 |
| Attenuation range | dB | 0-4 | -0.5 to +0.5 |
| dB | 5-30 | -10% to +10% | |
| Return loss | dB | UPC | ≥50 |
| dB | APC | ≥60 | |
| Operating Wavelength | -- | 1310&1550 | |
| Storage Wavelength | -- | 1260-1640 | |
| Operating Temperature | -- | -40 to +75 | |
| Storage Temperature | -- | -40 to +85 | |
| Vibration loss | dB | 10-55Hz 2 hours | ≤0.2 |
| Fall loss | dB | 1.5m, 5 times fall | ≤0.2 |
| Max. power | -- | 500 |

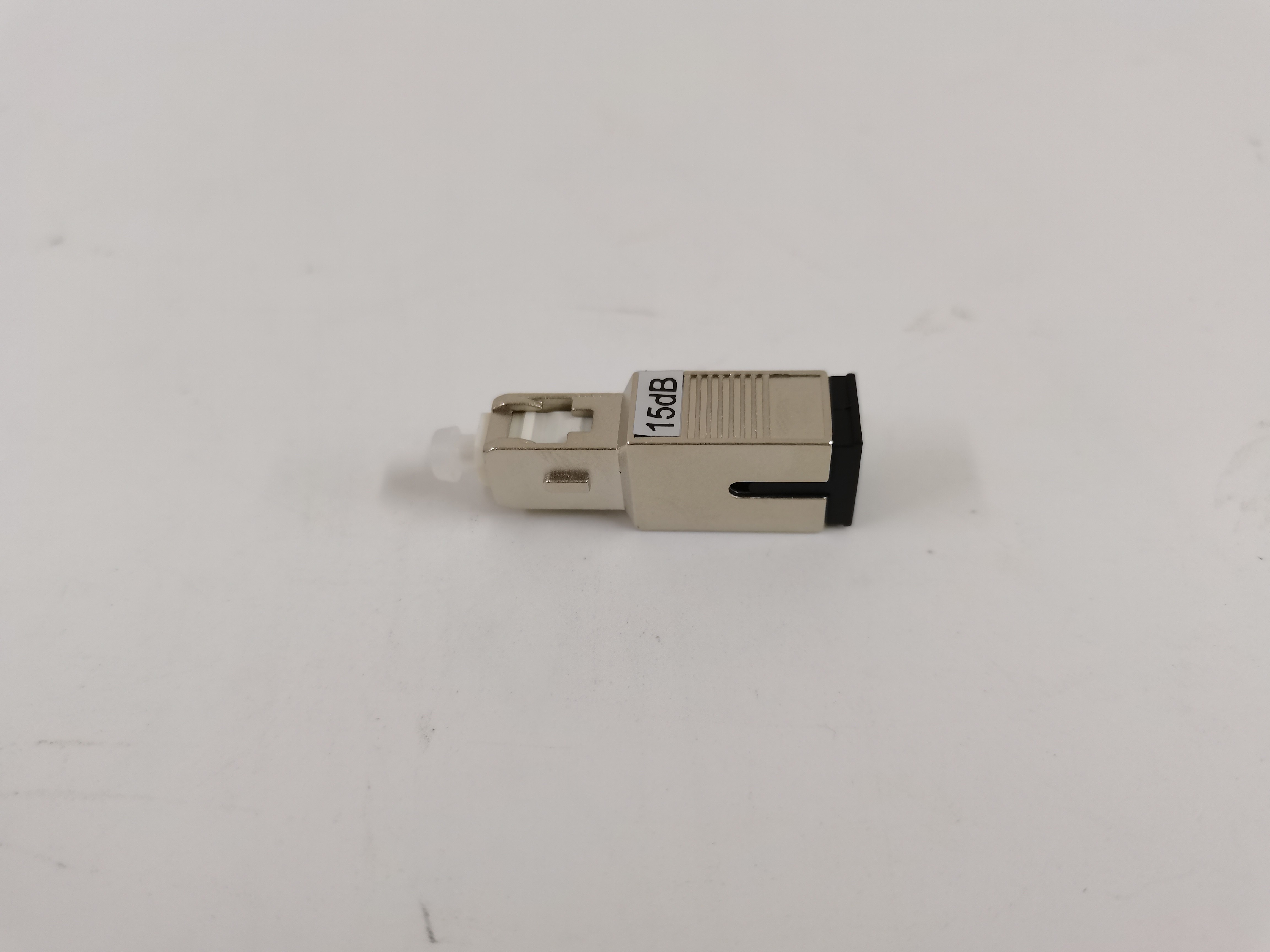

Fiber Optic Attenuator More Image:
More Fiber Optic Attenuator types:
Details to order fiber optic Attenuator:
Step 1: Connector type: MPO/MTP, E2000, FC, SC, LC, ST, MU, MTRJ, SMA
Step 2: Ferrule End-face: PC, UPC, APC
Step 3: Type: Single-mode, Multimode
Step 4: Attenuation: 1-10dB(1dB step), 15, 20, 25, 30dB
Step 5: Mode: Fixed, Female&Male, In-line, Variable
Step 6: Wavelength: 1310nm, 1550nm, 850nm, 1300nm
Why choose TAKFLY--Advantages as follows:
Professional manufacturer:
- With more than 20 years manufacturing experience in Fiber optic products;
- More than 250 assembly workers with 3 years experienced;
- More than 10 R&D Engineers;
- 16 Sets Germany imported Injection Machine and 16 Production Lines;
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, ect.
- OEM Brand is acceptable.
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia ,Global Soure Electronic Exhibition,etc.
Quality Control:
- Spot check the raw material incoming inspection before production;
- Fully check after every individual process finished;
- Fully check production half done;
- Fully check the finished products before packing;
- Spot check before shipping;
Delivery:
- Samples: 1-3 working days.
- Mass Production Order: 3-7 working days.
- Packaging: Plastic Bag, Carton and Pallet are available according to your request.
Shipping:
- DHL,UPS,FEDEX,TNT,EMS, usually is 3-5 working days. Would keep tracking shipping status and reporting to clients;
- By Sea or By Air, could use your own pointed forwarder or our cooperated one.
Payment Term: T/T,Paypal, Western Union and L/C are available.
Price: If your QTY is big, the price could be negotiated.
