상세 정보 |
|||
| 상품 이름: | 12 핵심 SM MM 탈출 패치 코드 | 접속구의 형태: | 12개 핵심 SC LC 거리 |
|---|---|---|---|
| 섬유 번수: | 12 섬유 | 케이블 직경: | 탈출 1.6 mm/2.0mm |
| 형태 유형: | 싱글모드, 다중 상태 | 핵심 유형: | 9/125um; 9 / 125um; 50/125um 50 / 125um |
| 케이블 색: | 노랗고 연한 녹청색입니다 | 삽입 손실: | ≤0.5dB |
| 복귀 손실: | APC SM≥ 60 dB ; UPC SM≥ 50 dB | 외부 칼집 물자: | LSZH, PVC |
| 반복성: | 0.1 이하 DB (데시벨) | 길이: | 맞춤화될 수 있습니다 |
| 하이 라이트: | SM MM 광섬유 Patchcord,2.0mm 광섬유 연결선,SM MM 12 핵심 탈출 섬유 케이블 |
||
제품 설명
12 Cores Breakout Fiber Cable LC-LC / SC-SC SM MM Fiber Optic Patchcord
Fiber Optic Patchcord Product Name:
12 Cores SM MM Breakout Patch Cord
Fiber Optic Patchcord Description:
Breakout 12 Cores LC-LC/SC-SC/SC-ST Patch Cord is consist of 12 Fiber Connectors SC/LC/ST in both ends, branch length can be done according to different requirements.
Compared with multi-purpose optical cables, branch optical cables are more expensive, heavier, and larger in size, so these optical cables are mainly used in places with medium and short transmission distances. In most cases, multi-purpose optical cables can meet the laying requirements.

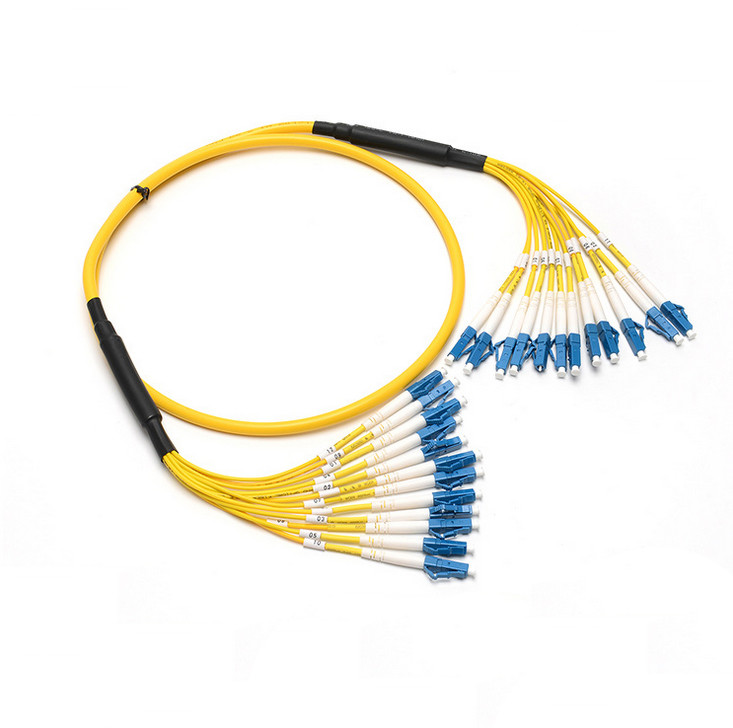

Fiber Optic Patchcord Photo:
Fiber Optic Patchcord Applications:
- Data Center
- Storage area networking fiber channel
- High density architectures
- Buildings
- Fiber to the Home
- Telecommunication networks
- Local area networks(LANs)
- Data processing networks
- Wide area networks(WANs)
Fiber Optic Patchcord Features:
- Rapid configuration and networking, reduce installation time
- 100% pre-terminated and tested in factory to ensure transfer performance
- Supports 40G and 100G network applications
- Jacket material: LSZH, OFNR, OFNP available
- Good exchangeability
- Good durability
- High-temperature stability
- Standard: Telcordia GR-326-CORE
Fiber Optic Patchcord Specification:
| End face type | APC/UPC/PC |
| Fiber type | SM(G652, G655,G657)；MM(OM1-OM5) |
| Cable Diameter | 2.0,3.0 or customized(Simplex/duplex) |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB ,APC SM≥ 60 dB, PC MM ≥ 35 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | >70N |
| Operating Temperature |
-20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | PVC,LSZH,TPU |
| Bending radius (Static/Dynamic |
10D/20D |
| Length | Customized |
How to order Fiber Optic Patchcord:
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8. MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female, fiber count (4/8/12/16/24/32 fiber )
Fiber Optic Patchcord types:
Fiber Optic Patchcord Workshop:
Why choose TAKFLY--Advantages as follows:
Professional manufacturer:
- With more than 20 years manufacturing experience in Fiber optic products;
- More than 250 assembly workers with 3 years experienced;
- More than 10 R&D Engineers;
- 16 Sets Germany imported Injection Machine and 16 Production Lines;
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, ect.
- OEM Brand is acceptable.
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia ,Global Soure Electronic Exhibition,etc.
Quality Control:
- Spot check the raw material incoming inspection before production;
- Fully check after every individual process finished;
- Fully check production half done;
- Fully check the finished products before packing;
- Spot check before shipping;
Delivery:
- Samples: 1-3 working days.
- Mass Production Order: 3-7 working days.
- Packaging: Plastic Bag, Carton and Pallet are available according to your request.
Shipping:
- DHL,UPS,FEDEX,TNT,EMS, usually is 3-5 working days. Would keep tracking shipping status and reporting to clients;
- By Sea or By Air, could use your own pointed forwarder or our cooperated one.
Payment Term: T/T,Paypal, Western Union and L/C are available.
Price: If your QTY is big, the price could be negotiated.
