상세 정보 |
|||
| 핵심: | 멀티 코어 | 연결관 A: | LC |
|---|---|---|---|
| 연결관 B: | MPO /MTP | 파이버 모드: | 50/125um |
| 케이블 직경: | 0.9/2.0/3.0 | 광택이 있는 유형: | PC / 자동 위상 조정 |
| 복귀 손실: | MM / PC :20dB/SM/APC :60dB | 삽입 손실: | 최대 0.35dB (0.15dB Typ.) |
| 외부 칼집 물자: | PVC/LSZH | 동적인 굴곡 반경 정전기 /: | 10D/20D |
| HS는 코드화됩니다: | 854470000 | 종류: | 남성/여성 |
| 하이 라이트: | OM4 광학 탈출 cable,50/125 광학 패치 케이블,MPO 광학 브레이크아웃 케이블 |
||
제품 설명

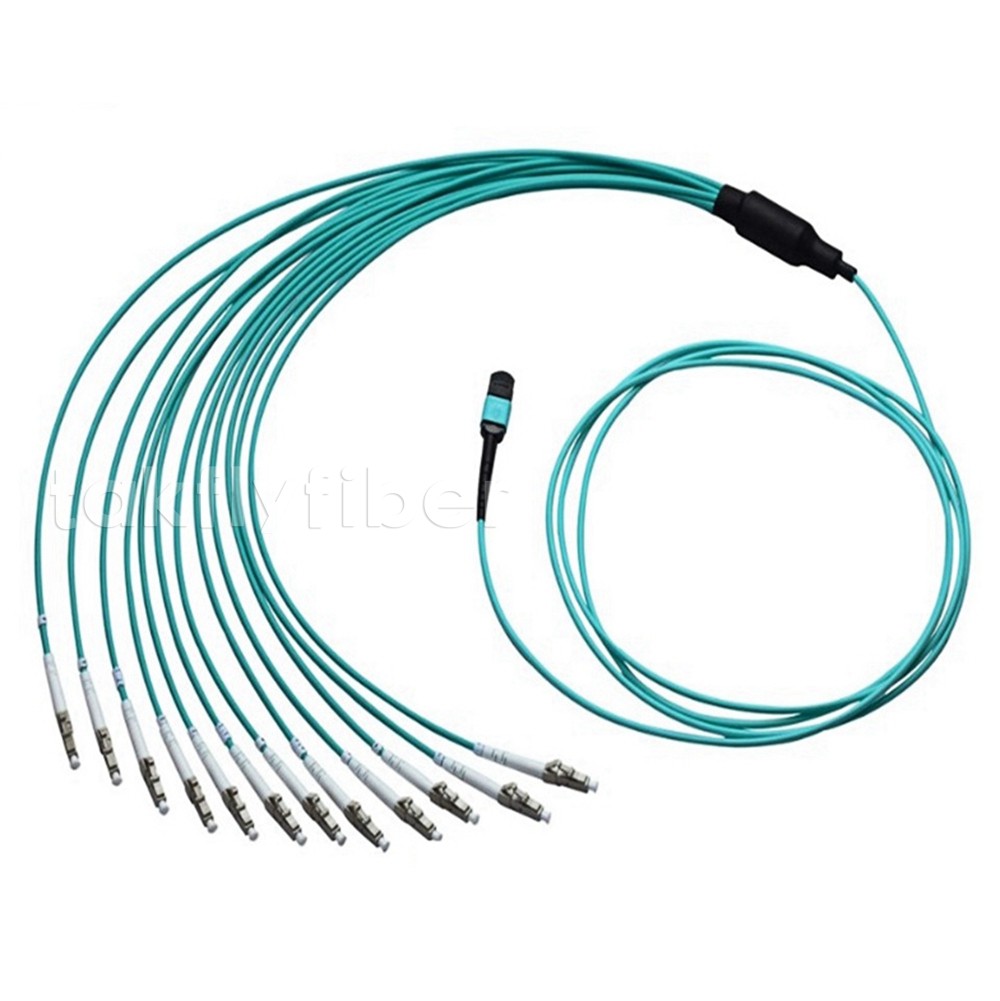

MPO-LC-Duplex-OM4-12 Fibers-Breakout 50/125 MPO Fiber Optic Patch-Cable
Fiber Optic MPO/MTP Patch Cord Description:
MPO Breakout cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. It is optimized for 40G QSFP+ SR4 to 10G SFP+ SR, 100G QSFP SR4 to 25G SFP-25G-SR-S optics direct connection and high-density data center applications.
Fiber Optic MPO/MTP Patch Cord Feature:
12 core fiber available
Cross Connection : AB/BA
Paralled Connection : AB/AB
Small volume, easy management
Insertion Loss : Low IL & Standard IL available
Can customize connection method as QSFP requirements
Fiber Optic MPO/MTP Patch Cord Application:
Use in high-speed multi-channel data, voice & video applications,Gigabit Ethernet Network;
Access Network, Telecom,Optical Test Equipment,Long-Distance LANs, CATV & Telecom Backbones,Industry
and Military Application.
Fiber Optic Termination Box Specification:
| Connector A | LC,SC,ST,FC....... | Connector B | MPO/MTP |
| Fiber Mode | SM(G652,G655,G657);MM(OM1-OM5) 50/125μm | Minimum Bend Radius | 7.5mm |
| Insertion Loss | Standard:≤0.35/0.7(Typical/Max) Low Loss:≤0.2/0.35(Typical/Max) |
Return Loss | SM:APC:60dB MM:PC:25dB |
| Attenuation at 850nm | ≤2.3dB/km | Attenuation at 1300nm | ≤0.6dB/km |
| Installation Tensile Load | 100 N | Long-Term Tensile Load | 50 N |
| Operating Temperature | -10°C to +70°C | Storage Temperature | -40°C to +85°C |
How to order Optical fiber patch cord?
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )
9.Insertion/ Return Loss:Standard/Low Loss
10.Type:Pigtail/Patch Cord/LGX Box/Patch Panel
FQA :
1. Q: Are you a manufacturer?
A: yes, we are a manufacturer , FTTH solution and data center total solution provider in Shenzhen, China, established in 2000.
2. Q: What's your MOQ?
A: MOQ can be 1 pcs, but the price is not competitive.More quantity,the price will be more competitive.
3. Q: Can you quote FOB price?
A: yes. We can delivery by air, DHL, TNT, UPC, FEDEX, etc. For big quantity we will deliver it by sea.
We can quote price with freight and lead time for you, after you let us know detailed requirements with quantity.
We have competitive shipping forwarders. For more solutions, you can feel free to contact us.
4. Q: How is your quality?
A: Our production is according to IEC, Europe standard. CE, ISO, RoHS, CPR, and ANATEL certified.
All the products are 100% test before delivery.
5. Q: What's your lead time?
A: It depends on the quantity and products. For fiber optic patch cord, the lead time can be 2 -3 working days within 5000 pcs. We keep the regular products in stock. Also, we can deal with urgent orders.
6. Q: What's your warranty?
A: Depends one different product, we have1 years warranty for patch cord since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for you for free, freight will be paid by your side.
7. Q: What's your packing?
A: International export standard package.If you need to print your logo on the packing, please let us know before we quote.
8. Q: Can you offer OEM/ODM?
A: yes, we can. all products accept OEM /ODM. we can sign the Confidentiality Agreement.
9. Q: Can I have a sample?
A: It depends on which products, Free sample provide under 10 usd. Freight will be paid by buyer before delivery.
10. Q: How can I order?
A:1.send mail or inquiries with product name, specification, and quantity to us . Provide your receive address if you need FOB,CIF,CFR price.
2.We will offer our quotation with lead time.
3.After the quotation confirmed, we will send a PI with our bank account.
4.Production will be arranged after the payment received.
5.Confirm the consignee with you before we deliver it.
6.The tracking number will be provided after the delivery.
11.what is your payment term?
A: T/T, Western Union, Paypal, MoneyGram at once. For big amounts, can be 50% deposit in advance, 50% balance paid before delivery.
With the same quality standard, if you could get better price from the market, TAKFLY also could support you same price.
3 years work experience in optical fiber industry, It's honored to be your professional product assistant.^^
