상세 정보 |
|||
| 항목: | SM 작미디어 컨버터 | 자료 비율: | 10/100Mbps |
|---|---|---|---|
| 사고 방식: | 1310nm | 섬유: | 단체 |
| 연결기: | SC | 전송거리: | 100m |
| 재료: | 알루미늄 / 검정색 | 차원: | 62.3*42.3*22mm |
| 하이 라이트: | 심엑스 광섬유 미디어 컨버터,100m 미디어 컨버터,10/100M 광섬유 매체 변환기 |
||
제품 설명

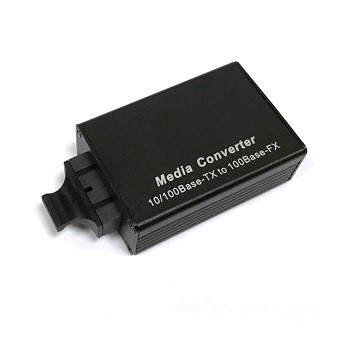

Mini Size 10/100M Singlemode Simpex Fiber Optic Media Converter in Ethernet
10/100M mini size Media converter Description
The fiber optic transceiver is a mini-Fast Ethernet fiber optic transceivers, which has a 10 / 100M Ethernet port and a 155M optical port, you can interconversion10 / 100Base-TX twisted pair electrical signal and long distance Of the 100Base-FX optical signal conversion, the network limit transmission distance from 100 meters of copper extended to 100 km, greatly extending the Ethernet transmission distance, but also with isolation protection, data security performance, and work Superior stability, easy to maintain and so on.
The miniature fiber optic transceivers use aluminum alloy shell, so the overall heat dissipation is better, the appearance
is even more beautiful, delicate
10/100M mini size Media converter Parameter
| Prodcut NO. | DF-MC-100M-SM-SC | |
| Size | 62.3*22.3*22mm | |
| Material | Aluminum | |
| Color | Black or Metal | |
| Standard |
IEEE802.3 10Base-T IEEE802.3u 100Base-TX/FX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX IEEE802.3x Flow control IEEE802.1q VLAN IEEE802.1p QoS IEEE802.1d Spanning Tree |
|
|
Copper Port |
Connector | RJ45 |
|
Data Rate |
10/100M | |
|
Distance |
0～100m | |
|
UTP Type |
UTP-5E or higher level | |
|
Fiber Port |
Connector |
SC slot |
|
Data Rate |
155Mbps | |
|
Optical wavelength |
850nm/1310nm/1490nm/1550nm | |
|
Distance |
100M | |
|
Performance |
Processing Type |
Store and Forward |
|
MAC Table Size |
2K | |
|
Buffer Space |
1Mbit | |
|
Maximum Packet Length |
9K bytes | |
|
Time Delay |
＜20μs | |
|
Power |
Input Voltage |
AC100V～240V 50/60Hz |
|
Connector |
DC Socket | |
|
Working Voltage |
5VDC | |
|
Power Consumption |
0.75W～3W | |
|
Environment |
Storage Temperature |
--40 ˚C ~ +70 ˚C |
|
Operating Temperature |
-10 ˚C ~ +55 ˚C | |
|
Relative Humidity |
5-95% ( no condensation) |
|
Note:
1.Power supply provided by user or order additionally.
2.SC connector as default, FC/ST/SFP slot as request.
10/100M mini size Media converter Application
- FTTx
- Security
- Network
10/100M mini size Media converter Features
- support 10 / 100Base-TX and 100Base-FX conversion between;
- 1 full duplex 155Mbps optical port, a 10 / 100M adaptive electrical port;
- 10 / 100M rate adaptive, MDI / MDI-X adaptive, full / half duplex adaptive;
- All optical / electrical ports have connection / activity status indicator to facilitate the installation, commissioning and maintenance of the equipment;
- support IEEE802.1 spanning tree (Spanning Tree) protocol, so that the network is more simple;
- support QoS, to ensure the efficient operation of the network;
- support broadcast storm suppression;
- support custom 5 ~ 16VDC wide voltage input;
- support up to 1552bytes long packet transmission;
- Full power at work only 1W;
- support low latency transmission, but also with isolation protection;
- imple to use, plug and play, without any settings;
- use low-power chip, low heat, long time to stabilize the work;
- small: small size, suitable for installation in a variety of small space;
- light: the body only 0.06kg, for long-distance transport is more economical;
- Ingenuity: the use of aluminum alloy shell, the overall heat better, more beautiful, refined
