상세 정보 |
|||
| 상품 이름: | 1U 19 " 렉 섀시 4 채널 CWDM / DWDM 먹스 역다중화기 위스 LC 연결기 | 채널 카운트 값: | 1-18CH |
|---|---|---|---|
| 채널 범위: | 1270-1610nm | 타입: | 광섬유 CWDM / DWDM |
| 동봉식: | 랙 탑재 가능 CWDM DWDM | 선반 장착 유형 소재: | 냉각 압연된 강철 |
| 하이 라이트: | 1U WDM Mux Demux,1U wdm in optical fiber communication,19" WDM Mux Demux |
||
제품 설명
1U 19" Rack Chassis 4 Channels CWDM/DWDM Mux Demux WIth LC Connector
Fiber Optic CWDM/DWDM - Features:
- Low Insertion Loss
- Wide pass band
- High Channel Isolation
- High Stability and reliability
- Epoxy-free on Optical Path
Fiber Optic CWDM/DWDM - Applications:
- Line Monitoring
- WDM Network
- Telecommunication
- Cellular Application
- Fiber Optical amplifier
- Acess Network
Fiber Optic CWDM/DWDM - Performance Specifications:
| Parameter | 4 Channel | 8 Channel | 16 Channel | ||||||
| Mux | Demux | Mux | Demux | Mux | Demux | ||||
| Channel Wavelength(nm) | 1270~1610 | ||||||||
| Center wavelength Accuracy(nm) | ±0.5 | ||||||||
| Channel Spacing(nm) | 20 | ||||||||
| Channel Passband@-0.5dB bandwidth (nm) | >13 | ||||||||
| Insertion Loss(dB) | ≤1.6 | ≤2.5 | ≤3.5 | ||||||
| Channel Uniformity(dB) | ≤0.6 | ≤1.0 | ≤1.5 | ||||||
| Channel Ripple(dB) | 0.3 | ||||||||
| Isolation(dB) | Adjacent | N/A | >30 | N/A | >30 | N/A | >30 | ||
| Non-adjacent | N/A | >40 | N/A | >40 | N/A | >40 | |||
| Insertion Loss Temperature Sensitivity(dB/℃) | <0.005 | ||||||||
| Wavelength Temperature Shifting(nm/℃) | <0.002 | ||||||||
| Polarization Dependent Loss(dB) | <0.1 | ||||||||
| Polarization Mode Dispersion(PS) | <0.1 | ||||||||
| Directivity(dB) | >50 | ||||||||
| Return Loss(dB) | >45 | ||||||||
| Maximum Power Handling(mW) | 500 | ||||||||
| Operating Temperature(℃) | -5~+75 | ||||||||
| Storage Temperature(℃) | -40~85 | ||||||||
| Package dimension(mm) |
|
||||||||

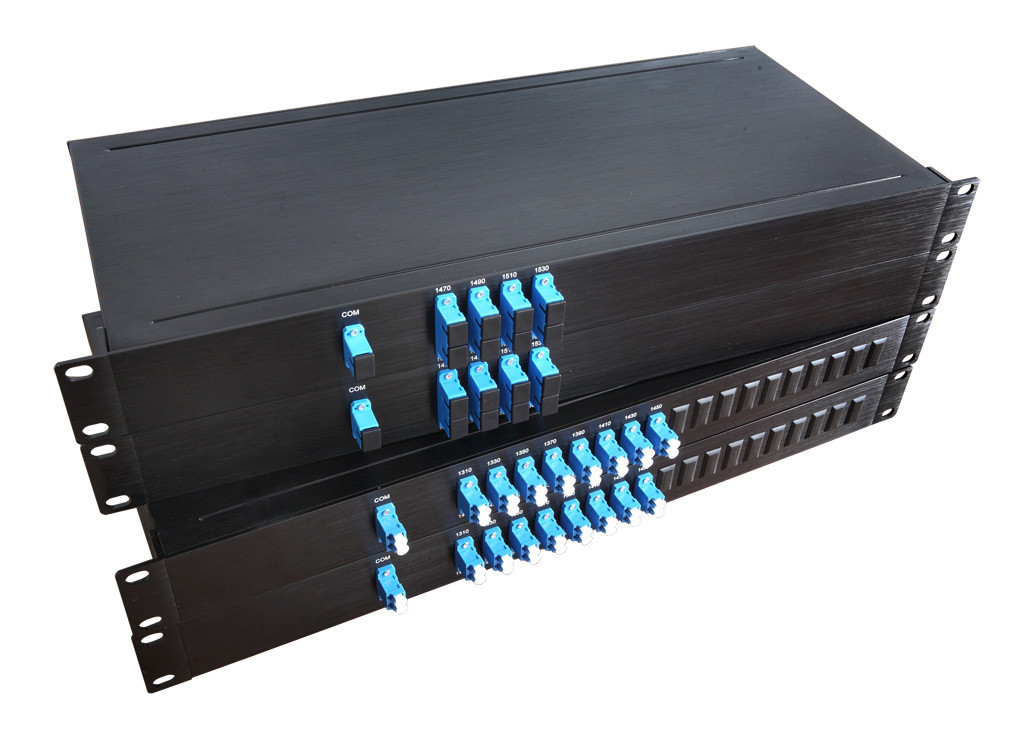

Fiber Optic CWDM/DWDM - Product Picture:
Fiber Optic CWDM/DWDM - TAKFLY Company Overview:
Fiber Optic CWDM/DWDM - TAKFLY Certificates:
Fiber Optic CWDM/DWDM - TAKFLY Worldwide Exhibitions:
Why choose TAKFLY--Advantages as follows:
1. Fiber Optic Professional Manufacturer:
- With more than 20 years manufacturing experience in Fiber optic products;
- More than 300 assembly workers with 3 years experienced;
- More than 10 R&D Engineers;
- 16 Sets Germany imported Injection Machine and 16 Production Lines;
- More than 30 sets of Testing Machines: OTDR,3D Tester,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, ect.
- OEM Brand is acceptable.
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia ,Global Soure Electronic Exhibition,etc.
2. Quality Control:
- Spot check the raw material incoming inspection before production;
- Fully check after every individual process finished;
- Fully check production half done;
- Fully check the finished products before packing;
- Spot check before shipping;
3. Delivery:
- Samples: 1-3 working days.
- Mass Production Order: 3-7 working days (or Upon the exact Qty of the order ).
- Packaging: Plastic Bag, Carton and Pallet are available according to your request.
4. Shipping:
- DHL,UPS,FEDEX,TNT,EMS, usually is 3-5 working days. Would keep tracking shipping status and reporting to clients;
- By Sea or By Air, could use your own pointed forwarder or our cooperated one.
5. Payment Term: T/T, Paypal, Western Union and L/C are available.
6. Price: If your QTY is big, the price could be negotiated.
7. Customer service: Our sales respond quickly and efficiently. You could reach us by Email, Phone, WhatsApp, Wechat, Skype etc. We are on-line all the day and could reply you in time.
If you're interested in our products or have any question, Why not send inquiry at once ?
Welcome & Just Do It Now !
