제품 설명

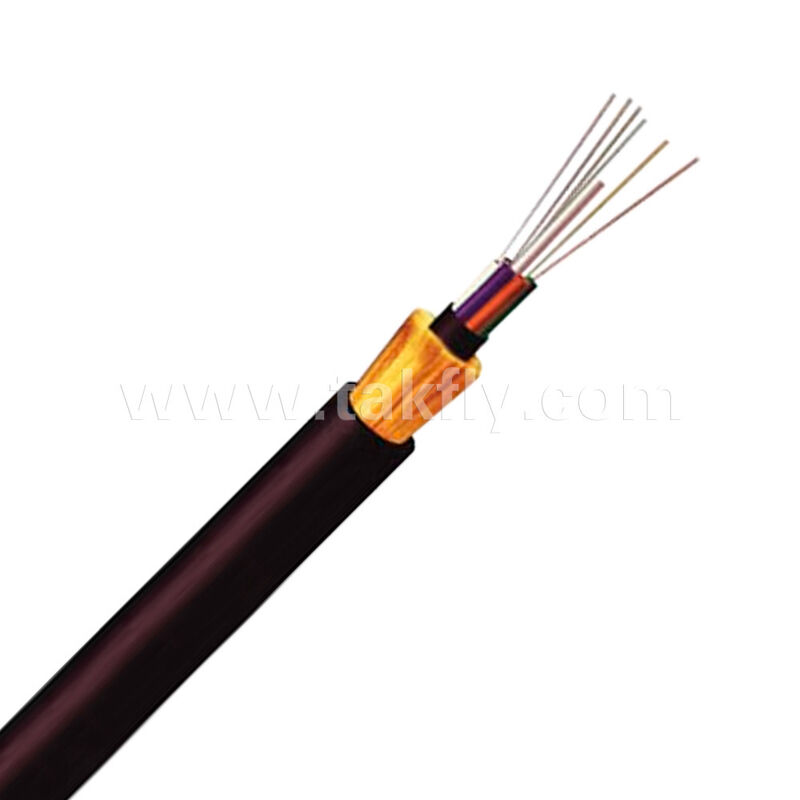

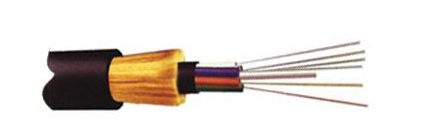

ADSS-100M All-Dielectric Self-Supporting Aerial Cable – 4 to 96 Fibers, 100m Span
This non-metallic, fully dielectric overhead cable is designed for a standard span of 100 meters. Available fiber counts: 4, 6, 12, 24, 48, 96 (G.652D single‑mode). The cable can be installed directly on poles or towers without a steel messenger. Suitable for power transmission lines (10kV-220kV) and telecommunication networks.
Fiber Optical & Geometrical Data (G.652D)
Attenuation, Dispersion & PMD Parameters
| Parameter | Unit | Before Cabling | After Cabling |
|---|---|---|---|
| Attenuation @1310 nm | dB/km | ≤0.34 | ≤0.38 |
| Attenuation @1550 nm | dB/km | ≤0.21 | ≤0.28 |
| Zero dispersion wavelength | nm | 1300-1324 | - |
| Zero dispersion slope | ps/(nm²*km) | ≤0.092 | - |
| Cable cut‑off wavelength λcc | nm | ≤1260 | - |
| Dispersion coefficient @1550 nm | ps/(nm*km) | ≤18 | - |
| Dispersion coefficient @1625 nm | ps/(nm*km) | ≤22 | - |
| PMD (max. individual fiber) | ps/√km | ≤0.1 | - |
| PMD (link design, M=20, Q=0.01%) | ps/√km | ≤0.06 | - |
| PMD (typical) | ps/√km | 0.04 | - |
| Group index (typ.) @1310 nm | - | 1.466 | - |
| Group index (typ.) @1550 nm | - | 1.467 | - |
| Macro‑bend loss (1 turn, 16mm radius) @1550 nm | dB | ≤0.05 | - |
| Macro‑bend loss (100 turns, 25mm radius) @1550 nm | dB | ≤0.05 | - |
| Macro‑bend loss (100 turns, 30mm radius) @1550 nm | dB | ≤0.05 | - |
Fiber Geometry Specifications
| Parameter | Unit | Value |
|---|---|---|
| Cladding diameter | µm | 125 ± 0.7 |
| Cladding non‑circularity | % | ≤1.0 |
| Coating diameter | µm | 235-250 |
| Coating/cladding concentricity error | µm | ≤12.0 |
| Coating non‑circularity | % | ≤6.0 |
| Core/cladding concentricity error | µm | ≤0.6 |
| Mode field diameter (MFD) @1310 nm | µm | 8.7-9.5 |
| Mode field diameter (MFD) @1550 nm | µm | 9.8-10.8 |

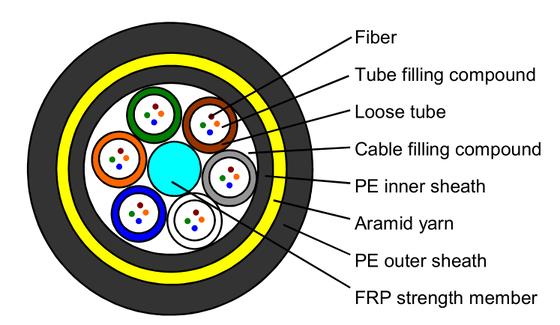

Cable Construction & Mechanical Specifications
The table below details loose tube stranded design for 24, 48 and 96 fibers. Configurations for 4, 6 and 12 fibers are available on request.
| Parameter | 24‑Fiber | 48‑Fiber | 96‑Fiber |
|---|---|---|---|
| Structure type | 1+6 | 1+6 | 1+8 |
| Central strength member (FRP) diameter | 2.0 mm | 2.0 mm | 2.0 / 3.7 mm |
| Loose tube material | PBT | PBT | PBT |
| Loose tube diameter | 2.0 mm | 2.0 mm | 2.0 mm |
| Number of loose tubes | 4 | 4 | 8 |
| Fibers per tube | 6 | 12 | 12 |
| Number of fillers | 2 | 0 | 0 |
| Water‑blocking | yarns + tape | yarns + tape | yarns + tape |
| Ripcords | 2 pieces | 2 pieces | 2 pieces |
| Peripheral strength member | Aramid yarns | Aramid yarns | Aramid yarns |
| Outer sheath material | MDPE (black) | MDPE (black) | MDPE (black) |
| Sheath nominal thickness | 1.7 mm | 1.7 mm | 1.7 mm |
| Cable diameter (±0.5 mm) | 9.5 mm | 10.0 mm | 11.8 mm |
| Cable weight (±10%, kg/km) | 70 kg/km | 75 kg/km | 110 kg/km |
| Maximum allowed tensile (MAT) | 2700 N | 2700 N | 2700 N |
| Span length | 100 m | 100 m | 100 m |
| Crush resistance - short term | 2200 N/100mm | 2200 N/100mm | 2200 N/100mm |
| Bending radius - operation | 15 × OD | 15 × OD | 15 × OD |
| Bending radius - installation | 25 × OD | 25 × OD | 25 × OD |
| Temperature - operation | -40℃ ~ +70℃ | -40℃ ~ +70℃ | -40℃ ~ +70℃ |
| Temperature - installation | -20℃ ~ +60℃ | -20℃ ~ +60℃ | -20℃ ~ +60℃ |
| Temperature - storage/shipping | -40℃ ~ +70℃ | -40℃ ~ +70℃ | -40℃ ~ +70℃ |
OD = Cable outer diameter
Packing, Drum & Cable Marking
| Item | Specification |
|---|---|
| Standard reel length | 2.0 - 4.0 km per wooden composite drum (export type) |
| Fumigation | Report and stamp provided upon request |
| Cable marking | Inkjet printed every meter: year, cable type, fiber count, length. Custom marking available. |
Applicable Standards
- DL/T 788‑2016 / YD/T 980‑2002
- IEC 60794‑4 / IEEE 1222
- Telcordia GR‑20
Ordering Options
| Model | Fiber Count | Span | Sheath Color |
|---|---|---|---|
| ADSS‑100M‑4X | 4 | 100 m | Black |
| ADSS‑100M‑6X | 6 | 100 m | Black |
| ADSS‑100M‑12X | 12 | 100 m | Black |
| ADSS‑100M‑24X | 24 | 100 m | Black |
| ADSS‑100M‑48X | 48 | 100 m | Black |
| ADSS‑100M‑96X | 96 | 100 m | Black |
For detailed construction drawings of 4/6/12‑fiber variants, please contact us.
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we are a manufacturer, FTTH solution and data center total solution provider in Shenzhen, China, established in 2000.
Q: What's your MOQ?
A: MOQ can be 1 piece, but the price is not competitive. More quantity, the price will be more competitive.
Q: Can you quote FOB price?
A: Yes. We can deliver by air, DHL, TNT, UPS, FEDEX, etc. For big quantity we will deliver by sea. We can quote price with freight and lead time after you provide detailed requirements with quantity.
Q: How is your quality?
A: Our production follows IEC and European standards. CE, ISO, RoHS, CPR, and ANATEL certified. All products are 100% tested before delivery.
Q: What's your lead time?
A: It depends on quantity and products. For fiber optic patch cords, lead time can be 2-3 working days for up to 5000 pieces. We keep regular products in stock and can handle urgent orders.
Q: What's your warranty?
A: Depending on product, we offer 1 year warranty for patch cords from delivery date, covering non-artificial damage only. For artificial damage, we repair free of charge with freight paid by customer.
Q: What's your packing?
A: International export standard package. Custom logo printing available upon request before quotation.
Q: Can you offer OEM/ODM?
A: Yes, we can. All products accept OEM/ODM. We can sign Confidentiality Agreements.
Q: Can I have a sample?
A: Free samples available for products under $10 USD. Freight costs paid by buyer before delivery.
Q: How can I order?
A: 1. Send inquiry with product name, specification, and quantity. 2. We provide quotation with lead time. 3. After confirmation, we send PI with bank details. 4. Production begins after payment. 5. Confirm consignee before delivery. 6. Tracking number provided after shipment.
Q: What is your payment term?
A: T/T, Western Union, Paypal, MoneyGram. For large amounts: 50% deposit, 50% balance before delivery. We offer competitive pricing matching market rates for equivalent quality.
