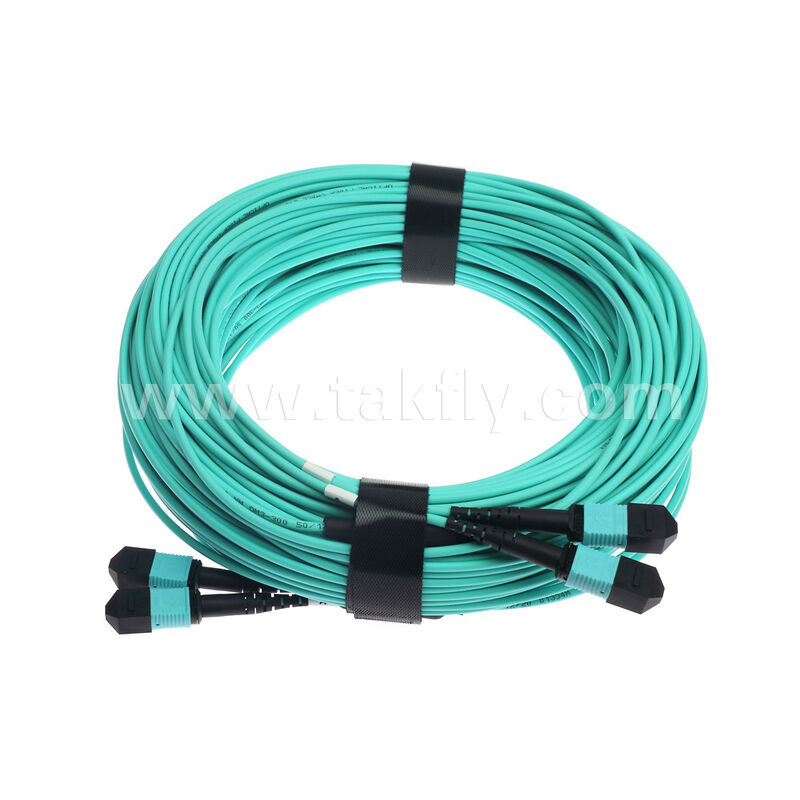

24 fiber Optical Breakout Cable 2x12F MPO MTP- 2x12F MPO MTP Male Female OM3 OM4 Multimode Fiber Optic Patchcord /Optical Fiber Patch Cable /Optical Fiber Trunk Cable /Optic Fiber Fanout Cable
제품 상세 정보:
| 원래 장소: | 중국 선전 |
| 브랜드 이름: | OEM |
| 인증: | CE/ROHS/CPR/REACH/ISO9001/ISO14001 |
| 모델 번호: | MPO MTP |
결제 및 배송 조건:
| 최소 주문 수량: | 1 |
|---|---|
| 가격: | USD10.00-100.00/Piece |
| 포장 세부 사항: | 카톤 박스로 |
| 지불 조건: | T/T, 웨스턴 유니온, 페이팔 |
|
상세 정보 |
|||
| 섬유 커넥터: | MPO, MTP, MT, SC, LC, FC, ST 등 | 섬유 코어: | 싱글렉스, 듀플렉스, 4, 8, 12, 24파이버 등 |
|---|---|---|---|
| 섬유 모드: | SM(G655,G652,G657), MM(OM1,OM2,OM3,OM4,OM5) | 연마 유형: | PC, UPC, APC |
| 성별: | 남성, 여성 | 케이블 직경: | 250um, 0.9mm, 2.0mm, 3.0mm 또는 맞춤형 |
| 재킷 소재: | PVC, LSZH, OFNR, OFNP 등 | 케이블 길이: | 0.5M, 1M, 3M, 5M 또는 맞춤형 |
| 케이블 극성: | A형, B형, C형 또는 맞춤형 | 케이블 색상: | 노란색, 물색, 보라색, 라임색 또는 맞춤형 |
| 강조하다: | 24 fiber MPO MTP breakout cable,OM3 OM4 multimode fiber optic patchcord,MPO MTP male female fiber trunk cable |
||
제품 설명
24-Fiber Optical Breakout Cable
2x12F MPO/MTP Male-Female OM3/OM4 Multimode Fiber Optic Patch Cord, Optical Fiber Patch Cable, Optical Fiber Trunk Cable, and Optic Fiber Fanout Cable designed for high-density connectivity applications.
Product Overview
MPO/MTP LC SC FC ST Fiber Optical Patch Cables, Optical Fiber Patch Cables, Fiber Optical Breakout Cables, Optical Fiber Trunk Cables, and Optical Fiber Fanout Cables are engineered for high-density connectivity applications. Available in various configurations including optical fiber patch cables, fiber optical jumpers, and optical fiber trunk cables.
Technical Specifications
| Parameter | Standard SM | Low Loss (Elite) SM | Standard MM | Low Loss MM |
|---|---|---|---|---|
| Insertion Loss (Typical) | 0.35dB | 0.20dB | 0.35dB | 0.20dB |
| Insertion Loss (Maximum) | 0.75dB | 0.35dB | 0.60dB | 0.35dB |
| Return Loss | ≥60 for APC (8° Angle Polish) ≥20 for PC |
≥50 for PC | -- | -- |
| Male/Female | Male: With Pins, Female: Without Pins | |||
| Tensile Strength | ≤0.3 (Max 66N) | |||
| Vibration | ≤0.3 (10 ~ 55Hz) | |||
| Thermal Cycle | ≤0.3 (-40 ~ 75℃, 21 Cycles) | |||
Product Images
Our Services
- Order Inquiry: Always online to guarantee prompt reply to clients
- Order Production: Close coordination with production department to ensure accurate delivery times
- Pre-Shipment Quality Control: Double-check order quantity, packaging, and carton strength to prevent damage
- Post-Shipment Tracking: Continuous monitoring of shipping status with regular client updates
- Shipping Options: DHL, UPS, FEDEX, TNT, EMS, SEA, AIR, and more
Have questions? Please send an inquiry NOW! Welcome & Just Do It!
